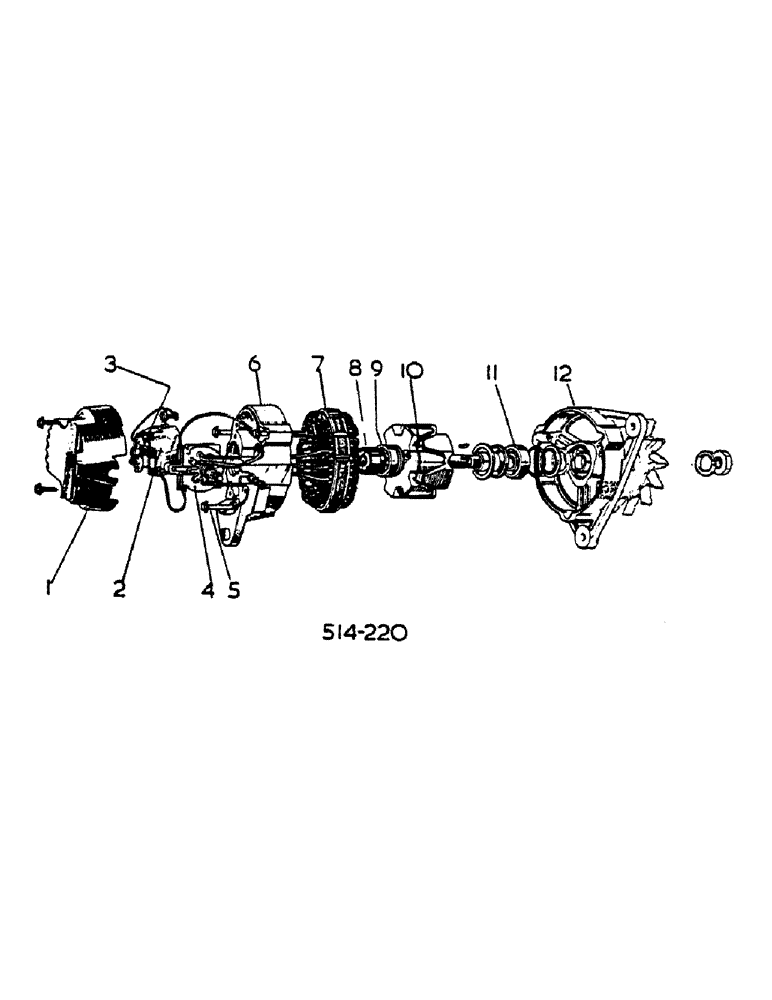

Запчасти Case IH 474 (08-19) - ALTERNATOR (06) - ELECTRICAL

3113331R91

ALTERNATOR

ALTERNATOR, LUCAS 15 ACR

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

3116086R1

COVER

COVER

1шт.

2

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BRUSH, BOX ASSY W/BRUSH, KIT 3116099R91

1шт.

3116099R91

BRUSH SET

BRUSH, KIT

1шт.

3

3116087R1

REGULATOR

REGULATOR

1шт.

4

3116088R1

RECTIFIER

RECTIFIER

1шт.

5

3116095R1

BOLT

BOLT, FIXING

3шт.

6

3116092R1

BRACKET

BRACKET, S.R.E.

1шт.

7

3116093R1

STATOR

STATOR

1шт.

8

3116097R1

RING

RING, SLIP

1шт.

9

3116098R1

KIT

BEARING KIT, S.R.E.

1шт.

10

3116091R91

ROTOR

ROTOR ASSY, W/RING 3116097R1 AND BEARING 3116098R91

1шт.

11

3116096R91

BEARING ASSY

BEARING KIT. D.E.

1шт.

12

3116089R91

BRACKET

BRACKET ASSY, DRIVE END

1шт.

ref

PART NO.

English

1шт.

3116090R91

KIT

SPARE PART PARTS, KIT SUNDRY, NOT ILLUSTRATED

1шт.
