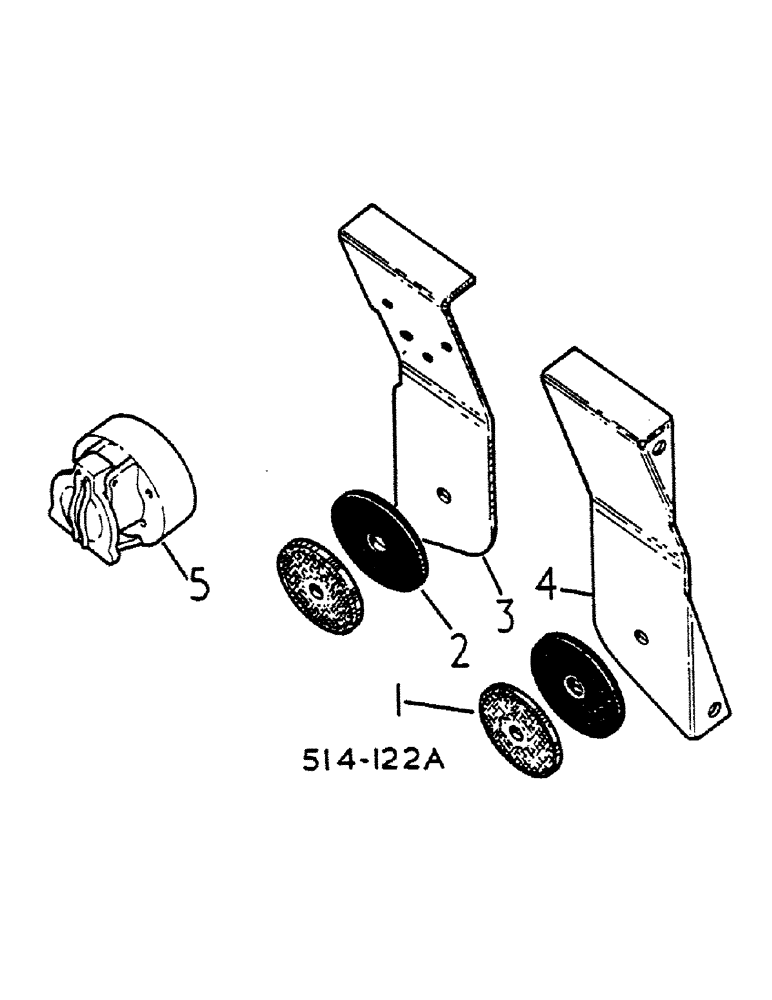

Запчасти Case IH 474 (08-18) - REFLECTORS AND BRACKETS, DE-LUXE LIGHTING (06) - ELECTRICAL

FOR MACHINES FITTED W/FLAT TOP FENDERS, SAFETY FRAME OR SAFETY CAB

1шт.

1

3112360R91

REFLECTOR

2шт.

2

3112361R1

PAD, REFLECTOR

2шт.

171656

SCREW

6-32 x 1/2 CZ PAN HD TAP TYPE

1шт.

D

2шт.

3

3112362R1

BRACKET

REFLECTOR L.H.

1шт.

4

3112363R1

BRACKET, REFLECTOR R.H.

1шт.

5

3112294R91

SOCKET/RECEPTACLE

SOCKET, 7 pin

1шт.

112734

GROMMET, 7 PIN SOCKET 3/8" ID x 11/16" x .062"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

437737

SCREW, No.10 - 24 x 1-1/4 PAN HD

1шт.

SLTD MACH

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- Hardware - Reflector bracket to fuel tank Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.
