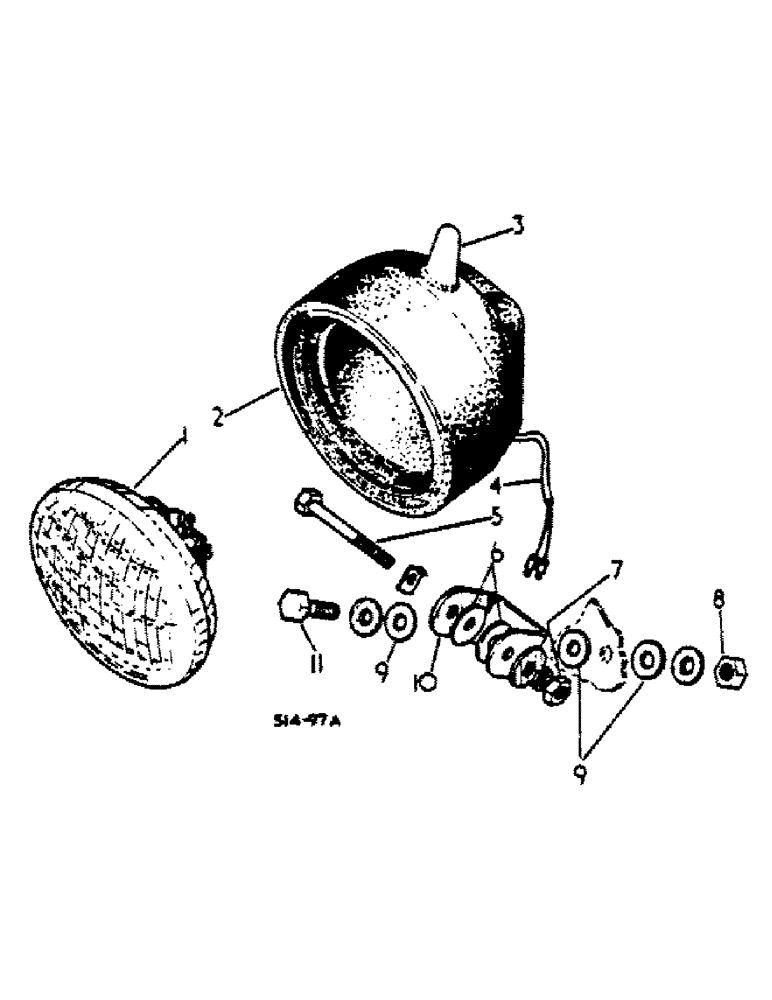

Запчасти Case IH 474 (08-17) - PLOUGH LAMP (06) - ELECTRICAL

3112400R91

NO LONGER SERVICED

LAMP PLOUGH

1шт.

1

535850R1

LAMP

SEAL BEAM

1шт.

2

HOUSING, CPTE. RUBBER

1шт.

3112688R1

SWITCH

1шт.

3

3112689R1

COVER

SWITCH

1шт.

4

3112685R91

HARNESS

CABLE

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT, 1/4 UNF x 2 HEX HD

1шт.

3072945R1

WASHER

TAB

1шт.

6

3112690R1

WASHER

NYLON

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 UNF HEX

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

120394

WASHER,3/8", SAE

WASHER, FLAT STEEL

1шт.

9

3112401R1

WASHER

NYLON

3шт.

10

3108515R1

SUPPORT

BRACKET

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 HEX HD

1шт.

120394

WASHER,3/8", SAE

WASHER, FLAT STEEL

1шт.

531625R1

GROMMET

1шт.
