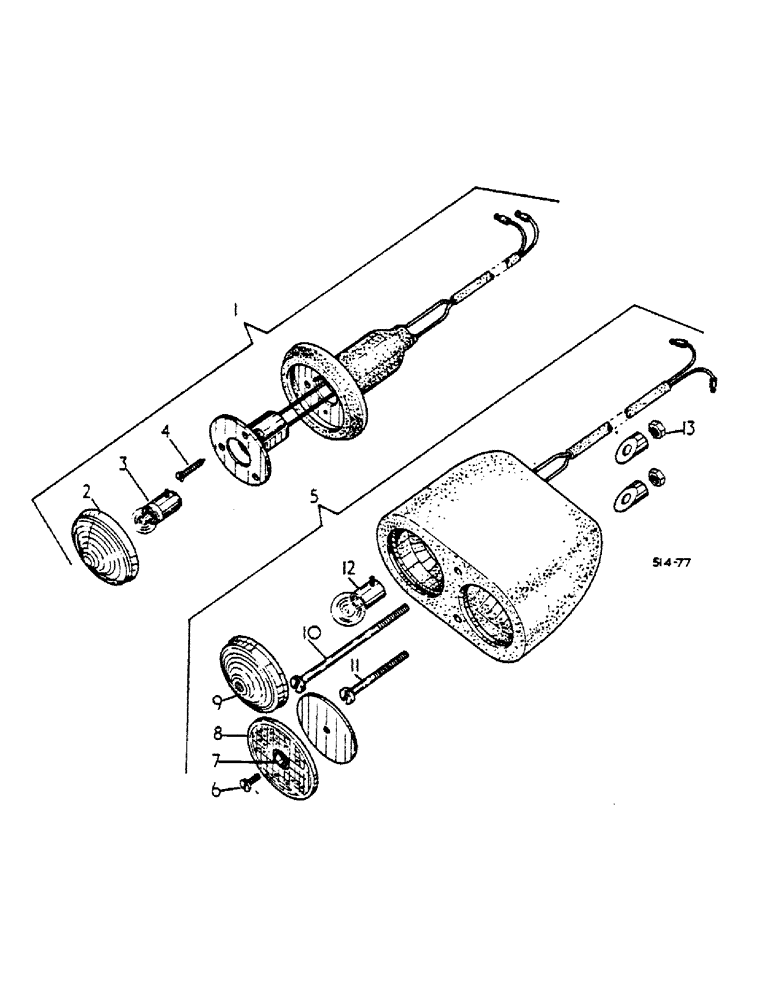

Запчасти Case IH 474 (08-13) - FENDER WIRING AND LAMPS (06) - ELECTRICAL

TRACTORS W/FLAT TOP FENDERS

1шт.

1

3114100R91

LIGHT

SIDE

2шт.

2

3112638R1

LENS

CLEAR

2шт.

3

3113360R1

SPARE PART

LAMP, 12V/6W BULB

2шт.

4

NLS

NO LONGER SERVICED

SCREW, NO.6. x 1/2 SLT PAN HD TAP

6шт.

5

3114101R91

NO LONGER SERVICED

LIGHT, LH TAIL - ILLUSTRATED

1шт.

5

3114102R91

TAIL LAMP

LIGHT, RH TAIL

1шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

2шт.

7

3112698R1

WASHER

CUP NYLON

2шт.

8

3112697R91

REFLECTOR

CPTE. - RED

2шт.

9

3112696R1

LENS

- RED -

2шт.

10

25945R1

SCREW

1/4 x 4 CROSS RECESS ZINC PLATED

2шт.

3112700R1

WASHER

1шт.

11

445998

SCREW

1/4 x 2 CROSS RECESS ZINC PLATE

2шт.

3112700R1

WASHER

1шт.

12

894878H1

BULB

LAMP, 12V 21/5W BULB

2шт.

13

86625061

NUT,1/4"-20, GB

NUT, 1/4 W/NYLON INSERT

4шт.

ref

Part No.

English

1шт.

3113661R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

2шт.

3113100R1

HARNESS

LH FENDER, NOT ILLUSTRATED

1шт.

3113101R1

HARNESS

RH FENDER, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR, 1 WAY LH FENDER, NOT ILLUSTRATED

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR, 1 WAY RH FENDER, NOT ILLUSTRATED

6шт.

3112888R1

PLUG

BLANKING SIDE LIGHT, NOT ILLUSTRATED

2шт.

3113657R1

PLUG

BLANKING SIDE LIGHT, NOT ILLUSTRATED

4шт.
