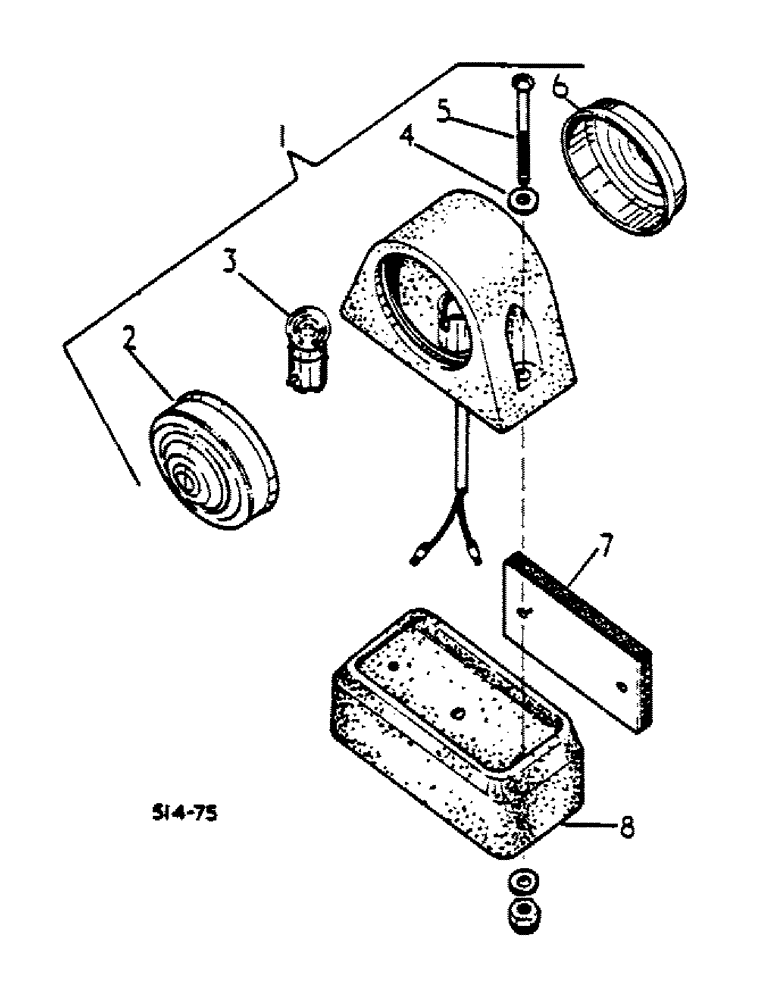

Запчасти Case IH 474 (08-12) - FENDER WIRING AND LAMPS (06) - ELECTRICAL

TRACTORS W/CROWN FENDERS

1шт.

533572R91

NO LONGER SERVICED

LIGHT ASSY, SIDE AND TAIL FENDER - CONSISTS OF REF NOS 1 TO 8

2шт.

1

530039R91

NO LONGER SERVICED

LIGHT, SIDE AND TAIL - CONSISTS OF REF NOS 2 TO 6

2шт.

2

3074001R1

LENS

CLEAR

2шт.

3

894879H1

BULB

LAMP, 12V 5W SBC BULB

2шт.

4

395-31022

WASHER,#10

PLAIN

4шт.

5

251131R1

SCREW, NO.10-24 x 2-1/4 PAN HD

4шт.

19910R1

LOCK NUT

LOCK NO.10

4шт.

6

3074003R1

LENS

RED

1шт.

7

530041R1

REFLECTOR

FENDER

2шт.

8

530040R1

NO LONGER SERVICED

BASE, FENDER SIDE AND TAIL

2шт.

ref

Part No.

English

1шт.

3112371R1

GROMMET

FENDER HARNESS LARGE, NOT ILLUSTRATED

2шт.

3113660R91

HARNESS

LH AND RH FENDER, NOT ILLUSTRATED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR, L.H. AND R.H. FENDER 1 WAY, NOT ILLUSTRATED

4шт.

705896R1

CONNECTOR, ELEC

CONNECTOR, R.H. FENDER 2 WAY, NOT ILLUSTRATED

1шт.
