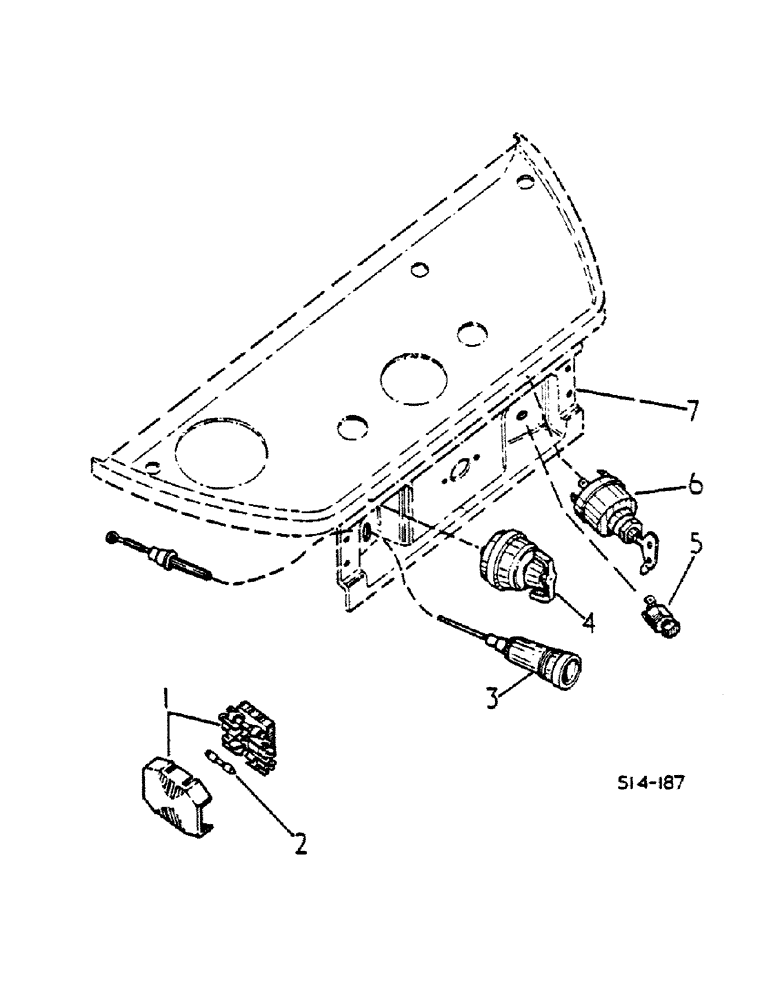

Запчасти Case IH 474 (08-11) - ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

1

3113098R1

HOLDER

HOUSING, FUSE

1шт.

167944

SCREW, 10-32 x 1/2 TAP

1шт.

26589R1

SELF-TAP SCREW

10.-32 x 5/8 TAP

1шт.

2

707887R1

NO LONGER SERVICED

FUSE, CARTRIDGE - 25 AMP - OPTIONAL W/700166R1

2шт.

2

700166R1

FUSE

CARTRIDGE -25AMP - OPTIONAL W/707887R1

2шт.

2

3113048R1

FUSE

50 AMP

2шт.

3

528990R91

CIGARETTE LIGHTER

LIGHTER, CIGARETTE W/INSTRUCTION

1шт.

LEAFLET

1шт.

528991R91

CIGAR LIGHTER

LIGHTER, CIGARETTE

1шт.

3113870R91

HEATER

UNIT

1шт.

707887R1

NO LONGER SERVICED

FUSE, 25 AMP - OPTIONAL W/700166R1

1шт.

700166R1

FUSE

25 AMP - OPTIONAL W/707887R1

1шт.

4

528357R1

LIGHT SWITCH

SWITCH, LIGHT

1шт.

5

530909R1

SWITCH

ASSY, HORN

1шт.

6

3107556R92

SWITCH ASSY

IGNITION KEY

1шт.

534211R1

SPRING WASHER

SPRING

1шт.

3110259R1

KEY

IGNITION

2шт.

7

PANEL ASSY, INSTRUMENT - REFER TO INSTRUMENT PANEL AND GAUGES LISTING, SECTION 1

1шт.
