(08-09) - BRAKE LIGHT AND BRACKET, DE-LUXE LIGHTING

Запчасти Case IH 474 (08-09) - BRAKE LIGHT AND BRACKET, DE-LUXE LIGHTING (06) - ELECTRICAL

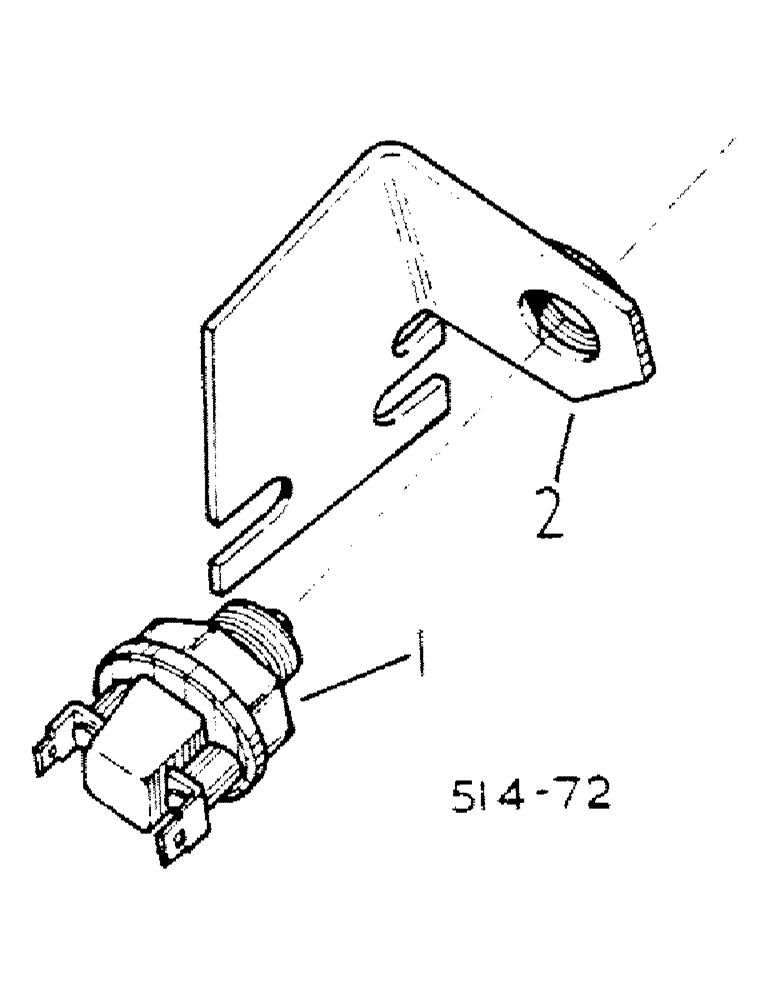

Схема запчастей Case IH 474 - (08-09) - BRAKE LIGHT AND BRACKET, DE-LUXE LIGHTING (06) - ELECTRICAL
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

- FOR MACHINES W/FLAT TOP FENDERS SAFETY FRAME OF SAFETY CAB

1шт.

1

3106565R91

SWITCH

BRAKE LIGHT

1шт.

2

531633R1

BRACKET

ASSY, BRAKE LIGHT SWITCH

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .051

2шт.
