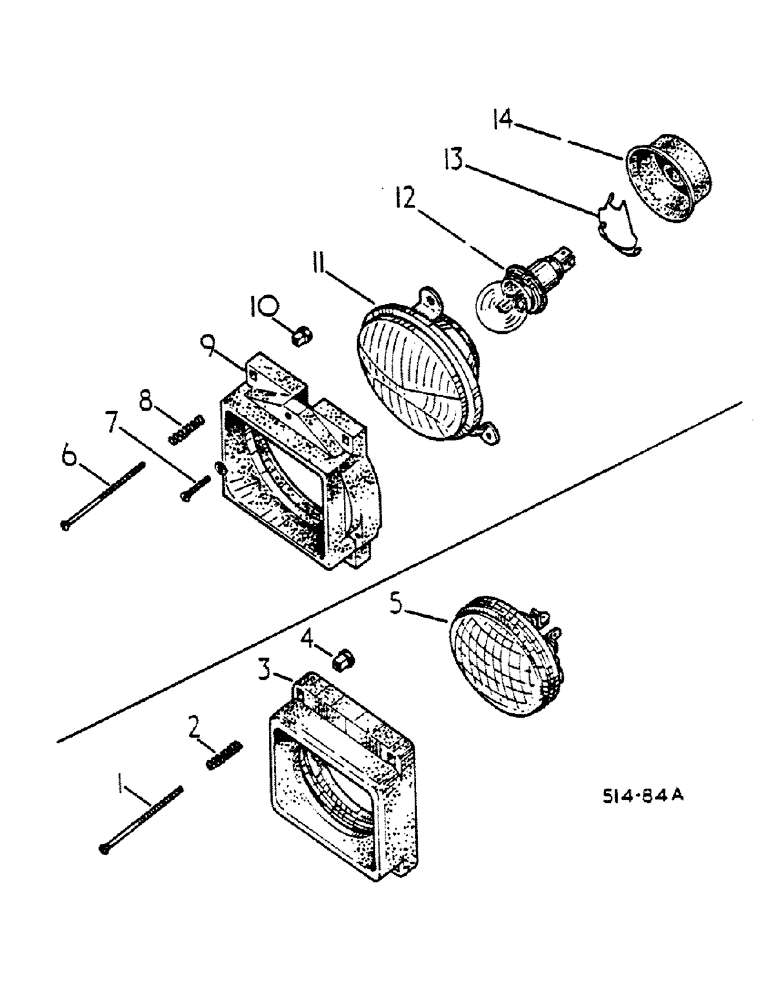

Запчасти Case IH 474 (08-08) - HEADLIGHT AND WORK LIGHT (06) - ELECTRICAL

SEALED BEAM

1шт.

1

530179

SCREW, HEADLIGHT MOUNTING

8шт.

21870R1

WASHER

17/64 x 3/4 x 16 GA C-Z

8шт.

2

528533R1

SPRING

HEADLIGHT HOUSING

8шт.

3

537013R1

HOUSING

HEADLIGHT UNIT

2шт.

4

537014R1

INSERT

HEADLIGHT HOUSING

8шт.

5

3072947R91

HEADLIGHT

LIGHT, HEAD UNIT - NON SEALED BEAM

2шт.

6

530179R1

SCREW

HEADLIGHT MOUNTING

8шт.

21870R1

WASHER

17/64 x 3/4 x 16 GA C-Z

8шт.

7

537774R1

SCREW

HEADLIGHT UNIT MOUNTING

6шт.

933187R1

NUT,M5, Cl 8

HEX

6шт.

395-31022

WASHER,#10

WASHER, 13/64 x 15/32 x .36

6шт.

8

528533R1

SPRING

HEADLIGHT HOUSING

8шт.

9

537773R1

HOUSING

HEADLIGHT UNIT

2шт.

10

537014R1

INSERT

HEADLIGHT HOUSING

8шт.

11

537777R1

LIGHT

HEAD UNIT - HELLA - ILLUSTRATED

2шт.

12

537775R1

LAMP

12V 45/40W WHITE BULB

2шт.

12

537776R1

LAMP

12V 45/40W YELLOW BULB

2шт.

13

537778R1

CLIP

HEADLIGHT BULB MOUNTING

1шт.

- HELLA -

1шт.

14

537779R1

CAP

HEADLIGHT BULB SEALING - HELLA

1шт.

ref

Part No.

English

1шт.

537771R91

LIGHT

ASSY, HEADLIGHT - HELLA - CONSISTS OF 1 CAP 537779R1, 1 CLIP 537778R1, 1 LIGHT 537777R1, NOT ILLUSTRATED

2шт.
