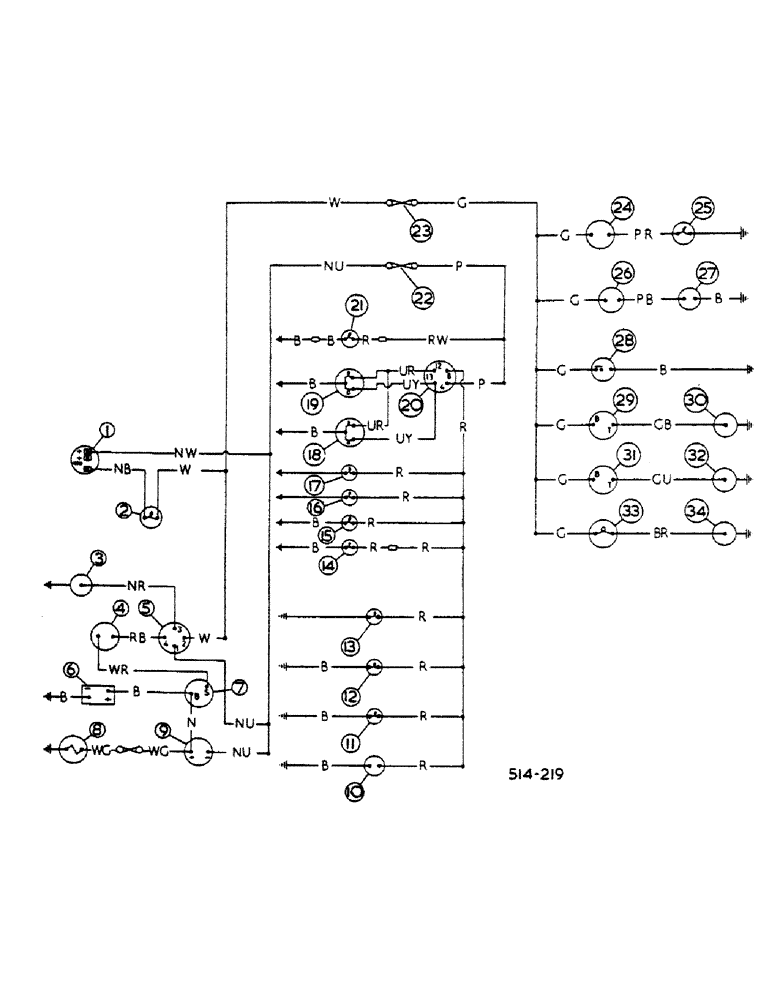

Запчасти Case IH 474 (08-03) - STARTING AND LIGHTING, BASIC (06) - ELECTRICAL

3113701R91

HARNESS

ASSY, MAIN / PANEL

1шт.

3113095R1

HARNESS

ASSY, HEADLAMP

1шт.

3113096R1

HARNESS

ASSY, SIDE AND TAIL LIGHT CODE, CABLE COLOUR BLACK - B BLUE - U BROWN - N GREEN - G PINK - K PURPLE - P RED - R SLATE - S WHITE - W YELLOW - Y DARK - D LIGHT - L MEDIUM - M ORANGE - O

1шт.

1

ALTERNATOR - SEE ALTERNATOR AND CONNECTOR

1шт.

2

LIGHT, ALTERNATOR WARNING - SEE INSTRUMENT PANEL AND GAUGES

1шт.

3

THERMOSTART - SEE THERMOSTART

1шт.

4

SWITCH, SAFETY START - SEE NEUTRAL SAFETY SWITCH

1шт.

5

SWITCH, KEY - SEE ENGINE CONTROLS AND SWITCHES

1шт.

6

BATTERY

1шт.

7

STARTER MOTOR - SEE STARTER MOTOR

1шт.

8

LIGHT, CIGAR AND FUSE - SEE ENGINE CONTROLS AND SWITCHES

1шт.

9

AMMETER - SEE INSTRUMENT PANEL AND GAUGES

1шт.

10

705271R91

SOCKET/RECEPTACLE

SOCKET, POWER 2 PIN

1шт.

709237R2

BRACKET

POWER SOCKET

1шт.

11

LIGHT, SIDE AND TAIL R.H.

1шт.

12

LIGHT, SIDE AND TAIL L.H.

1шт.

13

LIGHT, REGISTRATION NO PLATE

1шт.

14

LIGHT, SPEEDO METER - SEE INSTRUMENT PANEL AND GAUGES

1шт.

15

LIGHT, TACHOMETER - SEE INSTRUMENT PANEL AND GAUGES

1шт.

16

705757R91

LAMP

LIGHT, PANEL R.H. 12V-5W MCC

1шт.

16

751467R1

BULB

LIGHT, PANEL R.H. 12V-6W MCC - OPTIONAL

1шт.

17

705757R91

LAMP

LIGHT, PANEL L.H. 12V 5W MCC

1шт.

17

751467R1

BULB

LIGHT, PANEL L.H. 12V-6W MCC - OPTIONAL

1шт.

18

LIGHT, HEAD L.H. - SEE HEADLIGHT

1шт.

19

LIGHT, HEAD R.H. - SEE HEADLIGHT

1шт.

20

SWITCH, LIGHT - SEE ENGINE CONTROL AND SWITCHES

1шт.

21

LIGHT, PLOUGH - SEE PLOUGH LIGHT

1шт.

22

FUSE, 50 AMP - SEE ENGINE CONTROLS AND SWITCHES

2шт.

23

FUSE, 25 AMP - SEE ENGINE CONTROLS AND SWITCHES

2шт.

24

529461R91

IGNITION SWITCH

SWITCH, PARK BRAKE WARNING LIGHT

1шт.

534351R1

COVER

WARNING LIGHT SWITCH

1шт.

25

3041099R1

LAMP

LIGHT, PARK BRAKE WARNING

1шт.

26

HORN - SEE HORN

1шт.

27

BUTTON, HORN - SEE ENGINE CONTROLS AND SWITCHES

1шт.

28

WIPER, WINDSCREEN - SEE SAFETY CAB

1шт.

29

GAUGE, FUEL - SEE INSTRUMENT PANEL AND GAUGES

1шт.

30

TRANSMITTER, FUEL GAUGE - SEE FUEL TANK SUPPORTS AND PIPING

1шт.

31

INDICATOR, HEAT - SEE INSTRUMENT PANEL AND GAUGES

1шт.

32

TRANSMITTER, HEAT INDICATOR - SEE INSTRUMENT PANEL AND GAUGES

1шт.

33

3041099R1

LAMP

LIGHT, WARNING TRANS OIL PRESSURE

1шт.

34

376855R92

SWITCH

TRANS OIL PRESSURE WARNING

1шт.

LIGHT

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, OIL PRESSURE SWITCH

1шт.

ref

Part No.

English

1шт.

3113066R1

CABLE

BATTERY NEGATIVE TO EARTH - SYNCHROMESH DRIVE TRACTORS - NOT ILLUSTRATED

1шт.

529967R1

CABLE

BATTERY NEGATIVE TO EARTH - HEAVY DUTY BATTERY ATT - NOT ILLUSTRATED

1шт.

529967R1

CABLE

BATTERY NEGATIVE TO EARTH - HYDROSTATIC DRIVE TRACTORS - NOT ILLUSTRATED

1шт.

528301R1

CABLE ASSY.

CABLE, BATTERY TO STARTER MOTOR 'B' , NOT ILLUSTRATED

1шт.

TERM

1шт.

3113489R91

TONGS

CABLE ASSY, TRANS OIL TEMP - HYDROSTATIC DRIVE TRACTORS - NOT ILLUSTRATED

1шт.

536726R1

CABLE, OIL PRESSURE SWITCH - HYDROSTATIC DRIVE TRACTORS - NOT ILLUSTRATED

1шт.

708115

GROMMET

CLIP, TEMP. SENDING UNIT CABLE, NOT ILLUSTRATED

1шт.

708114

KEY

CLIP, MAIN CABLE HARNESS, NOT ILLUSTRATED

2шт.

535305R1

CLIP

PANEL CABLE HARNESS, NOT ILLUSTRATED

2шт.

3070930R1

CLIP

MAIN CABLE HARNESS, NOT ILLUSTRATED

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Not Illustrated 3/8"

1шт.

3067819R1

CLIP, HEADLAMP HARNESS, NOT ILLUSTRATED

1шт.

535303R1

CABLE CLIP

CLIP, CABLE EDGE, NOT ILLUSTRATED

1шт.

537024R1

CLIP

SAFETY START CABLE ON BATTERY TRAY, NOT ILLUSTRATED

1шт.

SUPPORT

1шт.

537024R1

CLIP

SIDE AND TAIL HARNESS, NOT ILLUSTRATED

3шт.

3025270R91

STRAP, PLASTIC CABLE, NOT ILLUSTRATED

1шт.

537025R1

CLIP

PANEL HARNESS, NOT ILLUSTRATED

1шт.

537025R1

CLIP

SIDE AND TAIL HARNESS, NOT ILLUSTRATED

1шт.

366460R1

CABLE CLIP

CLIP, FUEL SENDER CABLE, NOT ILLUSTRATED

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR, 2 WAY SIDE AND TAIL, NOT ILLUSTRATED

1шт.

HARNESS

2шт.

708113R1

CLIP

HORN CABLE, NOT ILLUSTRATED

1шт.

537024R1

CLIP

BRAKE LIGHT CABLE ON BATTERY TRAY, NOT ILLUSTRATED

1шт.

SUPPORT

1шт.

3070930R1

CLIP

SIDE AND TAIL HARNESS, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR, 1 WAY - PANEL HARNESS - NOT ILLUSTRATED

3шт.

705903R1

CONNECTOR, 3 WAY - PANEL HARNESS - NOT ILLUSTRATED

1шт.

65425C1

SWITCH

TRANS OIL TEMPERATURE, NOT ILLUSTRATED

1шт.

120614

NUT,Hex, #10 - 32

NUT, , Not Illustrated #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , Not Illustrated #10

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL OIL TEMPERATURE SWITCH - HYDROSTATIC DRIVE TRACTORS - NOT ILLUSTRATED

1шт.
