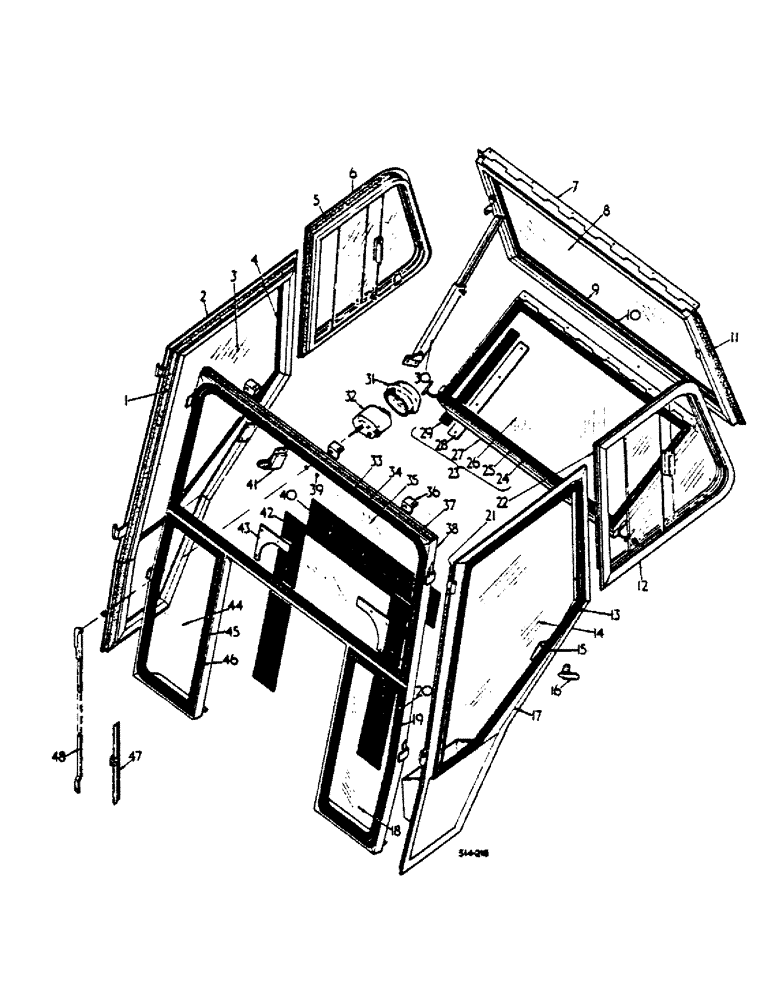

Запчасти Case IH 474 (13-14) - SAFETY CAB (05) - SUPERSTRUCTURE

3113679R91

CAB

ASSY, CPTE SAFETY W/FRAME 3113680R91

1шт.

3113680R91

FRAME

ASSY, TOP AND FENDERS - IDENTICAL TO FRAME CPTE 3112382R94 LESS TOOL BOX

1шт.

3113591R91

KIT, SAFETY CAB CLADDING - CONSISTS OF REF NOS 1 TO 48

1шт.

1

3113568R1

DOOR SEAL

SEAL, DOOR LOWER 13.3 IN

1шт.

1

3113567R1

DOOR SEAL

SEAL, DOOR UPPER 25.3 IN

1шт.

1

3113570R1

SEAL

DOOR FRONT 58.0 IN

1шт.

1

3113569R1

DOOR SEAL

SEAL, DOOR REAR 63.0 IN

1шт.

2

3112449R92

DOOR

CPTE. R.H.

1шт.

3

3112452R1

GLASS

1шт.

4

3112454R1

MOLDING

SEAL, R.H.

1шт.

3113574R1

STRIP

DOOR BOTTOM 7.5 IN

1шт.

3113573R1

STRIP

DOOR ANGLE 24.7 IN

1шт.

3113572R1

STRIP

DOOR VERTICAL 25.1 IN

1шт.

3113571R1

STRIP

DOOR TOP AND FRONT 61.0 IN

1шт.

5

3113543R1

SEAL

SLIDING WINDOW 67.0 IN

1шт.

3113544R1

SEAL

SLIDING WINDOW 26.12 IN

1шт.

6

3113542R1

WINDOW, SLIDING R.H.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, NO.8-32 PAN HD CROSS RECESS TAP

1шт.

TYPE D

4шт.

7

3112493R91

PANEL

CPTE. REAR WINDOW W/GLASS

1шт.

MOULDING, SEAL AND STRIP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 - REAR WINDOW TO FRAME

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4 x 3/4 HEX HD CAP

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 - LOWER PANEL TO REAR WINDOW

5шт.

8

3112495R1

GLASS

1шт.

9

3112496R1

SEAL

1шт.

10

3113584R1

STRIP

FILLER TOP AND SIDES

1шт.

10

3113585R1

STRIP

REAR WINDOW BOTTOM

1шт.

11

3112498R1

SEAL, GLASS

REAR WINDOW

2шт.

12

3113541R1

WINDOW

SLIDING L.H.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, NO.8-32 PAN HD CROSS RECESS

1шт.

TAP TYPE D

4шт.

13

3113574R1

STRIP

DOOR BOTTOM 7.5 IN

1шт.

13

3113573R1

STRIP

DOOR ANGLE 24.7 IN

1шт.

13

3113572R1

STRIP

DOOR VERTICAL 25.1 IN

1шт.

13

3113571R1

STRIP

DOOR TOP AND FRONT 61.0 IN

1шт.

14

3112452R1

GLASS

1шт.

15

3112453R1

SEAL, GLASS

SEAL, L.H.

1шт.

16

3113466R91

HANDLE

OUTSIDE DOOR

2шт.

3112459R1

NUT

2BA

4шт.

3112458R1

SCREW

2BA x 5/8 CSK HD

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

17

3112448R92

DOOR

CPTE L.H.

1шт.

18

3113558R1

GLASS

LOWER

1шт.

19

3113559R1

SEAL

LOWER L.H.

1шт.

20

3113561R1

STRIP

FILLER, LOWER SCREEN OUTSIDE AND

1шт.

BOTTOM 36.6 IN

1шт.

20

3113562R1

STRIP

FILLER, LOWER SCREEN INSIDE 27.9

1шт.

20

3113563R1

STRIP

FILLER, LOWER SCREEN TOP 10.5

1шт.

21

3113568R1

DOOR SEAL

SEAL, DOOR LOWER 13.3 IN

1шт.

21

3113567R1

DOOR SEAL

SEAL, DOOR UPPER 25.3 IN

1шт.

21

3113570R1

SEAL

DOOR FRONT 58.0 IN

1шт.

21

3113569R1

DOOR SEAL

SEAL, DOOR REAR 63.0 IN

1шт.

22

3113543R1

SEAL

SLIDING WINDOW 67.0 IN

1шт.

22

3113544R1

SEAL

SLIDING WINDOW 26.12 IN

1шт.

23

3112499R91

PANEL

LOWER REAR CPTE

1шт.

24

3112502R1

MOLDING

SEAL

1шт.

25

3113588R1

STRIP

FILLER 16.6 IN

2шт.

25

3113589R1

STRIP

FILLER 32.4 IN

2шт.

26

3112501R1

GLASS

1шт.

27

3112504R1

STRIP

SEAL, BOTTOM LOWER PANEL 34 IN

1шт.

28

3112506R1

STRIP

BAR, ALUMINIUM

2шт.

3112507R1

RIVET

8шт.

29

3112505R1

SHEET, RUBBER

2шт.

30

3112509R91

SUPPORT

ASSY, REAR WINDOW

2шт.

3114070R1

SCREW

5/16 x 1 THUMB

2шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 HEX LOCK

2шт.

179795

TILLAGE BLADE

SCREW, 1/4 x 3/4 HEX HD CAP

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

31

3113075R1

GUARD

HEAD RUBBER

1шт.

32

3113074R91

ELECTRIC MOTOR

MOTOR, CPTE. WINDSCREEN WIPER

1шт.

33

3113556R1

STRIP

FILLER WINDSCREEN TOP AND SIDES

1шт.

93.4 IN

1шт.

33

3113557R1

STRIP

FILLER WINDSCREEN BOTTOM 45.4 IN

1шт.

34

3113555R1

SEAL

UPPER

1шт.

35

3113554R1

GLASS

1шт.

36

3113566R1

ANGLE

WINDSCREEN MOUNTING

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 PLAIN

6шт.

37

3112425R1

SEAL

WINDSCREEN TOP

1шт.

38

3113545R91

WINDSHIELD

WINDSCREEN CPTE

1шт.

102635

NUT,3/8"-16, G5

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 PLAIN

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

3112426R1

GROMMET

RUBBER

2шт.

40

3113564R1

FOAM INSULATION

SHEET, HORIZONTAL

1шт.

41

3112461R91

HANDLE

LOCK AND HANDLE, INSIDE DOOR R.H.

1шт.

3112460R91

HANDLE

LOCK AND HANDLE, INSIDE DOOR L.H.

1шт.

120391

WASHER,#10

SCREW, NO.10-32 x 3/8 TAP

8шт.

42

3113565R1

FOAM INSULATION

SHEET, VERTICAL

2шт.

43

3113552R1

PLATE

FILLER

2шт.

23993R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 HEX SLTD HD TAP

19шт.

120391

WASHER,#10

.219 x .050 x .036 PLAIN

19шт.

44

3113558R1

GLASS

LOWER

1шт.

45

3113561R1

STRIP

FILLER LOWER SCREEN OUTSIDE AND

1шт.

BOTTOM 36.6 IN

1шт.

45

3113562R1

STRIP

FILLER LOWER SCREEN INSIDE 27.9 IN

1шт.

45

3113563R1

STRIP

FILLER LOWER SCREEN TOP 10.5 IN

1шт.

46

3113560R1

SEAL

LOWER R.H.

1шт.

47

3113077R1

BLADE

WIPER

1шт.

48

3113076R91

ARM

WIPER

1шт.

ref

Part No.

English

1шт.

3112436R91

CABLE

ASSY, WIPER, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3112437R92

CABLE

ASSY, WIPER EXTENSION, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

3112438R1

GROMMET

WIPER ENTRY, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.

3112440R1

CLIP

CABLE ENTRY, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.

1092596R1

DECAL

PROGRAPH, CAB WARNING, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

1092550R1

PRODUCT GRAPHIC

PROGRAPH, CAB WARNING, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
