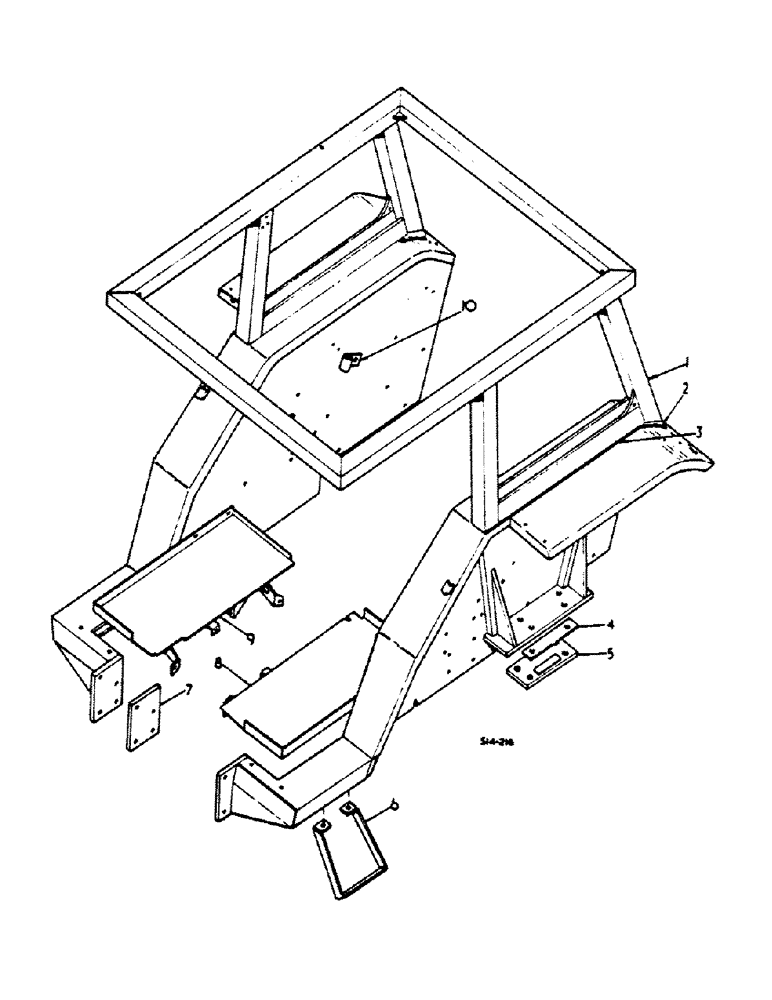

Запчасти Case IH 474 (13-12) - SAFETY FRAME (05) - SUPERSTRUCTURE

3113198R93

FRAME ASSY, SAFETY W/FRAME 3112382R94

1шт.

1

3112382R94

FRAME

ASSY, SAFETY CPTE

1шт.

2

3113328R1

INSERT

2шт.

3

3113388R1

SEAL, WING PIPING

2шт.

4

3112534R1

SHIM

AXLE CARRIER

2шт.

5

3112396R1

PLATE

AXLE CLAMPING CPTE

2шт.

6

3112896R1

STEP

FOOT ASSY R.H.

1шт.

6

3112895R1

STEP

FOOT ASSY L.H.

1шт.

NLS

NO LONGER SERVICED

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

3112395R1

PLATE

FRONT SPACER

2шт.

8

3112393R1

PLATE

FLOOR CPTE L.H.

1шт.

9

3112394R2

PLATE, FLOOR CPTE R.H.

1шт.

10

3113107R1

SUPPORT ASSY.

SOCKET, LOWER REAR PANEL RETAINING

2шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4 x 3/4 HEX HD CAP

2шт.

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

ref

Part No.

English

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 HEX HD CAP - LOWER FRAME TO CLUTCH HSG - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

8шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 HEX HD CAP, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

8шт.

425-1012

NUT,3/4"-10, G5

3/4-10 HEX - LOWER FRAME TO AXLE CARRIER - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

8шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 HEX HD CAP, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, - Fender to rear top cover - The following parts are not illustrated 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 HEX HD CAP, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, - Fender to trans shift hsg & draft control hsg - The following parts are not illustrated 5/16"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

The following parts are not illustrated Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Fender to park brake bracket - The following parts are not illustrated 3/8"

3шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 SQ NK CRG, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

4шт.

102635

NUT,3/8"-16, G5

The following parts are not illustrated 3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , The following parts are not illustrated 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 - FENDER TO FLOOR PLATE - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

4шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

The following parts are not illustrated Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , The following parts are not illustrated 1/2"

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

The following parts are not illustrated Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Floorplate to clutch hsg - The following parts are not illustrated 3/8"

2шт.

443087

STUD

NO.4 x 5/16 GROOVE DRIVE - SAFETY FRAME : APPROVAL AND SERIAL NO. PLATE - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4 - 10 x 2-1/4 HEX HD CAP, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

4шт.

220081

NUT

3/4-10 HEX - TOP FRAME TO FENDER - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

4шт.

ref

Part No.

English

1шт.

1

708194R92

BOX

ASSY, TOOL

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 HEX HD CAP , TOOL BOX

2шт.

271500

SOCKET

7/16-14 HEX , TOOL BOX

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Tool box 7/16"

2шт.
