Запчасти Case IH 470 (204) - ROCKSHAFT AND HOUSING, DRAFT-O-MATIC, GENERAL PURPOSE MODELS (09) - CHASSIS/ATTACHMENTS

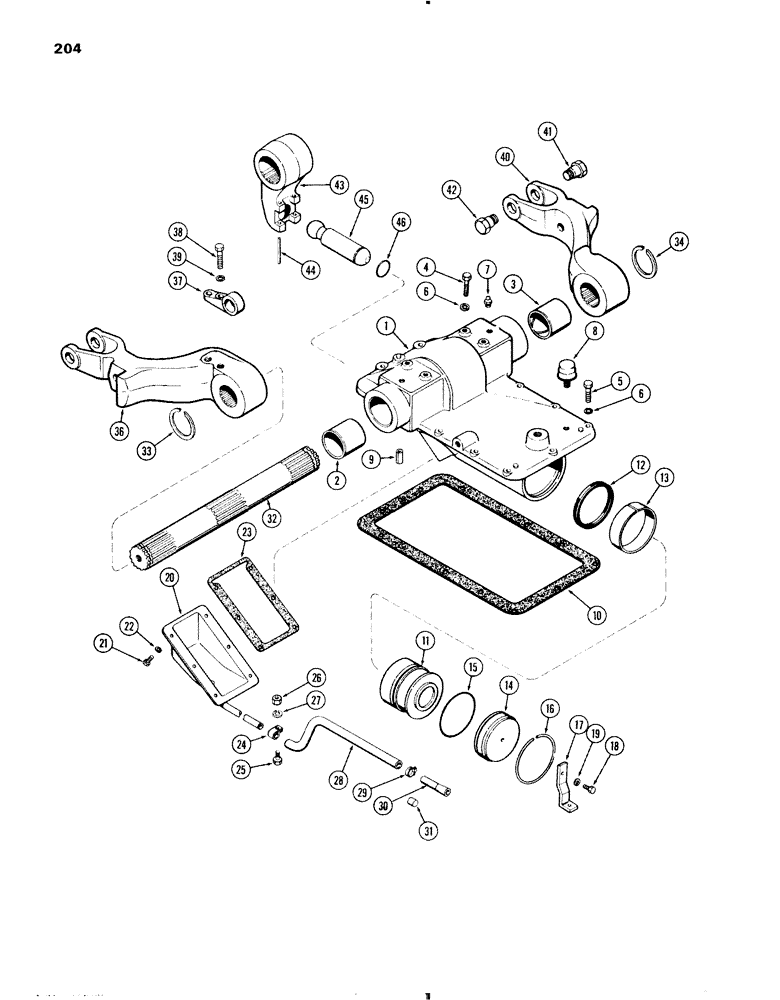

Схема запчастей Case IH 470 - (204) - ROCKSHAFT AND HOUSING, DRAFT-O-MATIC, GENERAL PURPOSE MODELS (09) - CHASSIS/ATTACHMENTS
36
25
18
20
24
32
23
10
31
38
46
6
3
43
6
12
13
21
15
14
4
16
45
26
30
34
41
33
7
2
1
19
42
17
28
39
9
37
29
27
44
40
5
22
8
11

Артикул

Название

Примечание

Количество

1

A37194

HOUSING ASSY. - rockshaft (includes ref. 2 & 3)

1шт.

2

G49662

BUSHING

- R.H., rockshaft

2шт.

3

G49663

BUSHING

- L.H., rockshaft

2шт.

4

113-245

X

BOLT - hex hd. (3/8 x 1-1/2" N.C.) (Grade 8)

2шт.

4

113-246

BOLT - hex hd. (3/8 x 1-3/4" N.C.) (Grade 8)

2шт.

5

113-228

X

BOLT - hex hd. (3/8 x 1-1/4" N.C.) (Grade 8)

7шт.

6

92-6

LOCK WASHER,3/8"

11шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" x 180 deg.)

2шт.

8

A27173

BREATHER

- oil

1шт.

9

138-200

LOCK PIN,1/2" x 1", Slotted

PIN, 1/2" x 1", Slotted

1шт.

10

G10462

GASKET

- housing to trans. case

1шт.

11

A40799

PISTON

PISTON ASSY. - hydraulic (includes ref. 12 & 13)

1шт.

12

A36442

SEAL

RING - seal, "U" cup

1шт.

13

A36441

SEAL ASSY.

RING - wear, piston

1шт.

14

A37326

CAP

- hydraulic cylinder

1шт.

15

A36405

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

"O" RING - cylinder cap

1шт.

16

A37327

RING, SNAP

RING - snap, cylinder cap

1шт.

17

A37808

BRACKET

- cylinder cap

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

A38394

PAN - oil return

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

23

A38652

OIL PAN GASKET SET

- oil return pan

1шт.

24

A37334

CLIP - hose to pan tube

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

26

25-104

NUT,1/4"-20, G5

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

A37333

HOSE

- oil pan to torque tube

1шт.

29

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose (used w/o D.O.M.)

1шт.

30

A37335

TUBE - return oil (in trans. case)

1шт.

31

A38284

PLUG

- oil tube (used w/o D.O.M.)

1шт.

32

A38953

ROCKSHAFT

1шт.

33

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, retaining, rockshaft lift arm

1шт.

34

A33575

SNAP RING,#206, 1.936", Ext

RING - snap, retaining, rockshaft lift arm

1шт.

36

A35454

ARM - lift, R.H. draft arm

1шт.

37

A35509

BRACKET - quadrant link

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex hd. (3/8 x 1-1/2" N.C.)

1шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

A35455

ARM - lift, L.H. draft arm

1шт.

41

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

PIN - lift link (L.H. thread)

2шт.

42

A35457

SCREW

PIN - lift link (R.H. thread)

2шт.

43

A37807

ARM - rocker, piston

1шт.

44

138-42

LOCK PIN,3/32" x 13/16", Slotted

PIN - roll (1/4 x 2")

2шт.

45

G30527

ROD

- rocker arm to piston (includes ref. 46)

1шт.

46

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - piston rod

1шт.

Выбрано товаров: 47
