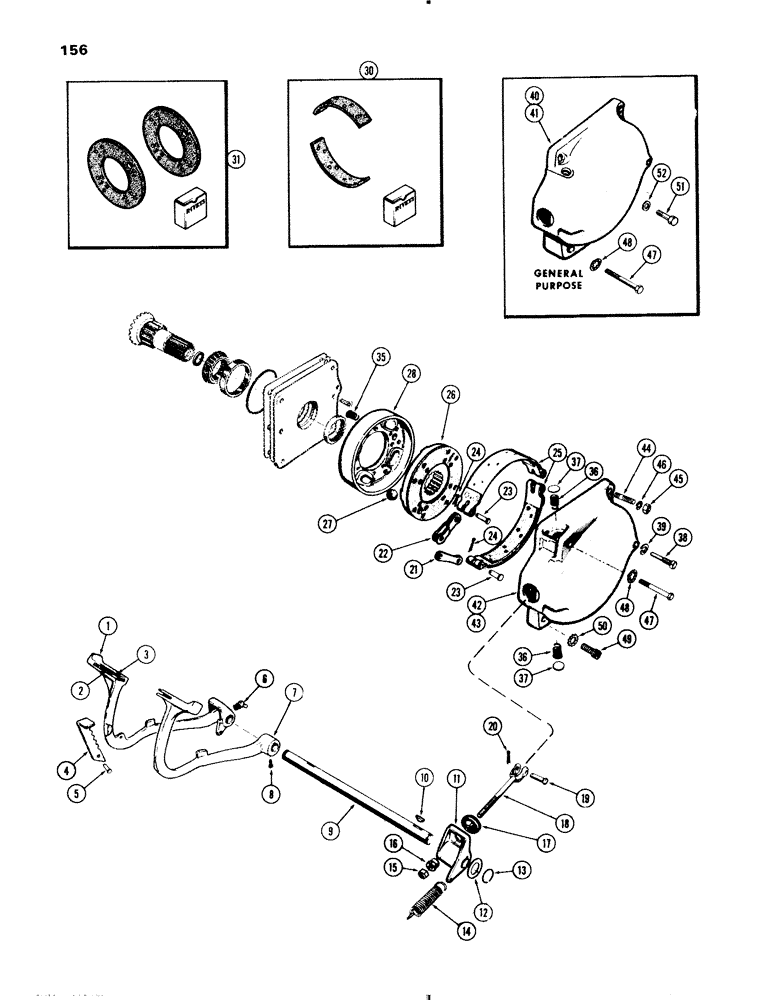

Запчасти Case IH 470 (156) - BRAKE SYSTEMS-470 SERIES (07) - BRAKES

1

G14212

PEDAL ASSY. - R.H. brake (includes ref. 2 - 6)

1шт.

2

A29086

INTERLOCK - brake pedal

1шт.

3

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

4

A29401

CATCH

- pedal lock

1шт.

5

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- (1/4 x 1-1/8" round head)

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, R.H. pedal (1/8" x 45 deg.)

1шт.

7

G13013

PEDAL

ASSY. - L.H. brake (includes ref. 8)

1шт.

8

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set (3/8 x 5/8" N.C. square hd. cup point)

1шт.

9

G10708

SHAFT

- cross, brake pedal

1шт.

10

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Brake pedal & lever #15, 1/4" x 1"

2шт.

11

G1057

LEVER

- L.H. brake

1шт.

12

B18145

WASHER

- cross shaft (1-3/32" I.D. x 1-7/8" O.D.)

2шт.

13

F62093

RING, SNAP

RING - snap, cross shaft

2шт.

14

G10848

SPRING

- return, pedal and lever

2шт.

15

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex (7/16" N.F. jam)

2шт.

16

G10709

NUT

- adjusting, brake rod

2шт.

17

G10943

DUST CAP

CAP - dust, brake rod

2шт.

18

G46351

ROD

- brake

2шт.

19

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod to link

2шт.

20

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2шт.

21

G46345

LINK

- straight, brake actuating

2шт.

22

G46344

LINK

- offset, brake actuating

2шт.

23

G49082

PIN,14.22mm OD x 40.03mm L

-, Serial Range: link-band

4шт.

24

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

4шт.

25

G45468

BRAKE LINING

BAND - actuating (Set of 2)

2шт.

26

NLS

NO LONGER SERVICED

- brake

2шт.

27

211-21

BALL

- actuating (1" dia.)

8шт.

28

G45361

DRUM

- actuating (includes ref. 30 & 31)

2шт.

G45391

SET

KIT - lining (Order A41728 & A41552) (includes ref. 30 & 31)

2шт.

30

A41728

LINING

KIT - lining, brake band

1шт.

31

A41552

LINER

KIT - lining, brake disc

1шт.

35

G48508

SPRING

- disc return

4шт.

36

G48507

SPRING

- band return

4шт.

37

41-13

GUARD,Exp, 13/16"

- return spring

4шт.

38

G15801

BOLT

- anchor, actuating band

2шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

G1400

COVER - R.H. brake (General Purpose)

1шт.

41

G1401

COVER - L.H. brake (General Purpose)

1шт.

42

G1394

COVER

- R.H. brake (Standard 4 Wheel)

1шт.

43

G1395

COVER

- L.H. brake (Standard 4 Wheel)

1шт.

44

A29336

STUD

- cover (1/2 x 2-1/2")

4шт.

45

25-118

NUT,1/2"-20, G5

- hex (1/2" N.C.)

4шт.

46

92-8

LOCK WASHER,1/2"

4шт.

47

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

48

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (RH side) Int Tooth, 1/2"

1шт.

48

92-8

LOCK WASHER,1/2"

(L.H. side) (w/diff. lock) 1/2"

1шт.

48

92-8

LOCK WASHER,1/2"

(L.H. side) (w/o diff. lock) 1/2"

2шт.

49

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - (1/2 x 1-3/4" N.C. hex sckt. hd.) (Standard 4 Wheel)

2шт.

50

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, (Standard 4 Wheel) Ext Tooth, 1/2"

2шт.

51

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex hd. (1/2 x 1-3/4" N.C.) (General Purpose)

2шт.

52

92-8

LOCK WASHER,1/2"

(General Purpose) 1/2"

2шт.
