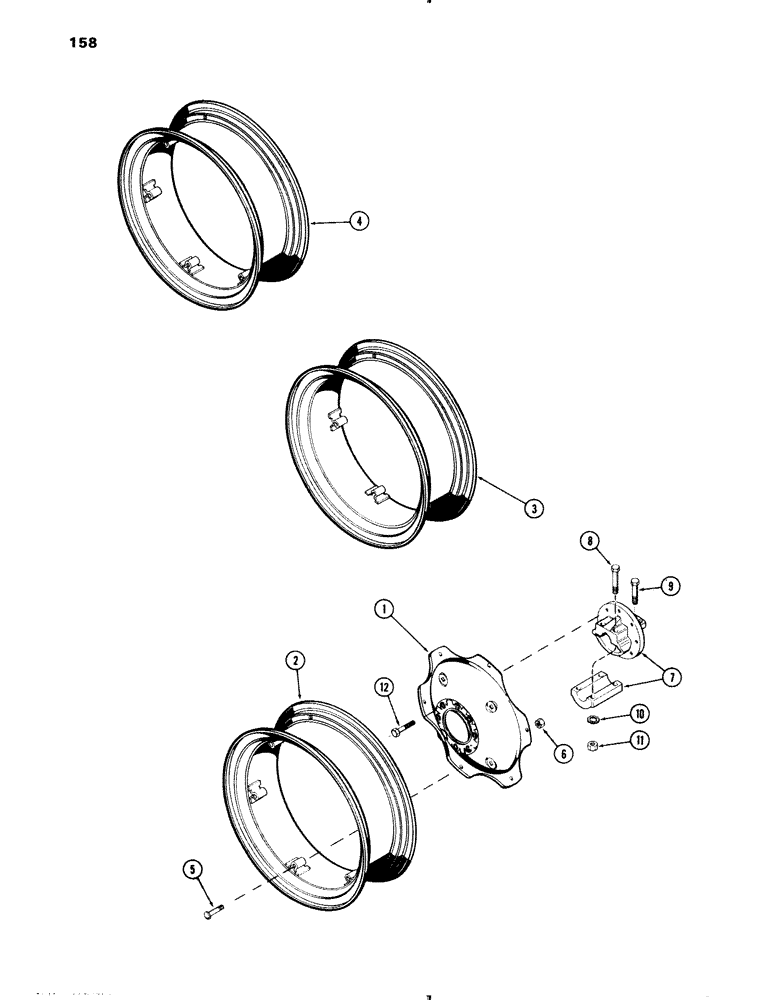

Запчасти Case IH 470 (158) - 28" DEMOUNTABLE REAR WHEELS, GENERAL PURPOSE MODELS (06) - POWER TRAIN

1

G12001

DISC

- wheel, 28" demountable rim

2шт.

2

G45710

RIM

- demountable (13.6 or 14.9 x 28" tire)

2шт.

3

G12002

RIM

- demountable (12.4 x 28" tire)

2шт.

4

NS

NOT SERVICED

RIM - demountable (16.9 x 28" tire) (Order A38637)

2шт.

5

G10701

BOLT

- rim (5/8 x 2-11/16" special)

12шт.

6

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex) (plated)

12шт.

7

A38213

HUB - rear wheel

2шт.

8

G10840

BOLT

- rear wheel hub (3/4 x 3-3/4") (outer)

4шт.

9

G10841

BOLT

BOLT - rear wheel hub (3/4 x 4-1/2") (inner)

4шт.

10

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - lock (3/4" int./ext.)

8шт.

11

G10842

NUT

- hex (3/4" N.F.) (Grade 5)

8шт.

12

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8 x 1" N.F. special)

16шт.
