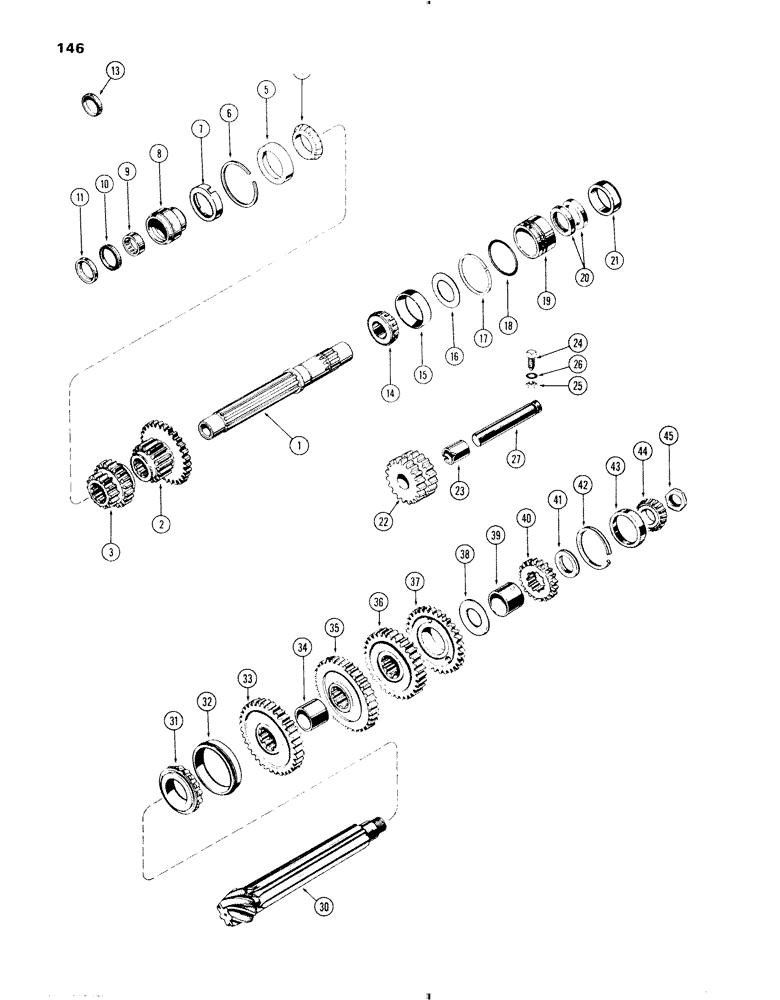

Запчасти Case IH 470 (146) - TRANSMISSION SHAFTS AND GEARS, 4 SPEED (06) - POWER TRAIN

1

G10314

SHAFT - main (17-5/32") (use w/4 speed)

1шт.

1

G13462

SHAFT

- main (14-19/32") (use w/8 speed & shuttle)

1шт.

2

A38917

GEAR

- 3rd (28T) and 4th (44T)

1шт.

3

A38630

GEAR

- 1st (16T) and 2nd (25T)

1шт.

4

A29976

ROLLER BEARING

CONE - rear bearing, main shaft

1шт.

5

A29977

BEARING CUP

CUP - rear bearing, main shaft

1шт.

6

A29971

RING

- snap, rear bearing

1шт.

7

G10616

CUP

- oiling

1шт.

8

A37604

HOUSING

- rear oil seal (w/P.T.O.) (includes ref. 9, 10 and 11)

1шт.

9

A37606

NEEDLE BEARING,1.25" ID x 1.5005" OD x 0.5"

BEARING - needle

1шт.

10

A37605

OIL SEAL

- oil, mainshaft

1шт.

11

A37607

COLLAR CLAMP

COLLAR - oil seal housing

1шт.

13

A38534

PLUG

- cup, main shaft (use w/o P.T.O.)

1шт.

14

G10424

CONE

- front bearing, main shaft

1шт.

15

G10425

CUP

- front bearing, main shaft

1шт.

16

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

16

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

17

A30092

RING

- snap, oil seal housing (w/8 speed)

1шт.

18

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - oil seal housing (w/8 speed)

1шт.

19

G16605

HOUSING

- front oil seal (w/8 speed)

1шт.

20

G10422

OIL SEAL

- oil, main shaft front

2шт.

21

G10311

COLLAR

- pilot (w/4 speed)

1шт.

22

A37803

GEAR ASSY. - reverse idler (not used w/shuttle) (includes ref. 23)

1шт.

23

A30196

BUSHING

- gear

1шт.

24

181-249

SCREW - set (3/8 x 1-1/2" N.C. hsg. pt.) (not used w/shuttle)

1шт.

25

25-106

NUT,3/8"-16, G5

- hex (3/8" N.C.) (not used w/shuttle)

1шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, (Not used w/shuttle) Int Tooth, 3/8"

1шт.

27

G1328

COVER ASSY

SHAFT - idler (not used w/shuttle)

1шт.

P/N G1328 SHOULD READ G10328 PER HARD COPY PARTSBOOK ISSUE DECEMBER, 1974. THIS P/N IS PT 5, CHECK WITH DPNI

1шт.

30

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - (Order from Figures 148, 150 & 152)

1шт.

31

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear bearing, countershaft

1шт.

32

A30115

CUP

- rear bearing, countershaft

1шт.

33

CASA38157

GEAR

- 1st, countershaft (47T)

1шт.

34

A36619

BUSHING

SPACER - 1st & 2nd gear (1-5/8" long)

1шт.

35

A37732

GEAR

- 2nd, countershaft (38T)

1шт.

36

A37731

GEAR

- 3rd, countershaft (35T)

1шт.

37

A37730

GEAR

- oil slinger (35T)

1шт.

38

G46070

WASHER

- slinger gear (1-5/8" I.D. x 2-3/8" O.D.)

1шт.

39

G13260

BUSHING

SPACER - 4th gear (1-1/4" long) (includes rivet)

1шт.

40

G16527

GEAR

- 4th, countershaft (19T)

1шт.

41

A38769

SPACER

- gear (.164") (Replaces G10790)

1шт.

41

A38768

SPACER

- gear (.169") (Replaces G16530)

1шт.

41

A38767

SPACER

- gear (.174") (Replaces G10791)

1шт.

41

A38766

SPACER

- gear (.179") (Replaces G16531)

1шт.

41

A38765

SPACER

- gear (.184") (Replaces G10792)

1шт.

41

A38764

SPACER

- gear (.189") (Replaces G16532)

1шт.

41

A38763

SPACER

- gear (.194") (Replaces G10793)

1шт.

41

A38762

SPACER

- gear (.199") (Replaces G16533)

1шт.

41

A38761

SPACER

- gear (.204") (Replaces G10794)

1шт.

41

A38759

SPACER

- gear (.209") (Replaces G16534)

1шт.

41

A38758

SPACER

- gear (.214") (Replaces G10795)

1шт.

41

A38757

SPACER

- gear (.219") (Replaces G16535)

1шт.

41

A38756

SPACER

- gear (.224") (Replaces G16510)

1шт.

41

A38755

SPACER

- gear (.229") (Replaces G16536)

1шт.

41

A38754

SPACER

- gear (.234") (Replaces G16511)

1шт.

41

A38753

SPACER

- gear (.239") (Replaces G16537)

1шт.

41

A38752

SPACER

- gear (.244") (Replaces G16512)

1шт.

42

A29971

RING

- snap, front bearing

1шт.

43

A29977

BEARING CUP

CUP - front bearing, countershaft

1шт.

44

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - front bearing, countershaft

1шт.

45

G49010

LOCK NUT

- adjusting, countershaft

1шт.
