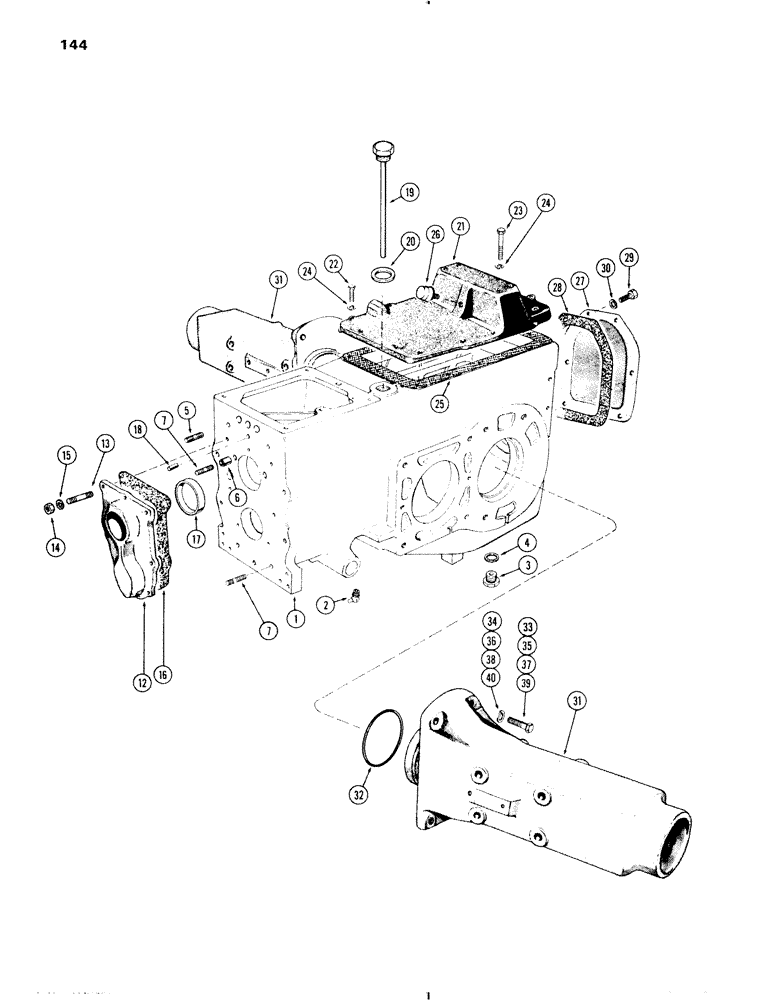

Запчасти Case IH 470 (144) - TRANSMISSION CASE AND AXLE HOUSINGS, GENERAL PURPOSE MODELS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A37800
CASE - transmission
1шт.
2
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease (1/8 x 45 deg.)
2шт.
3
A14280
PLUG
- drain
1шт.
4
A58608
GASKET
- drain plug
1шт.
5
A38708
STUD
- torque tube, upper R.H.
1шт.
6
A50011
SLEEVE
- stud, upper L.H.
1шт.
7
A29336
STUD
- torque tube, lower
3шт.
12
G1027
COVER
- front (w/4 speed trans. only)
1шт.
13
G10710
STUD
- front cover or gear box (3/8 x 1-3/4")
7шт.
14
25-116
NUT,Hex, 3/8"-24, G5
- hex (3/8" N.F.)
7шт.
15
92-6
LOCK WASHER,3/8"
7шт.
16
G46841
GASKET
- front cover or gear box
1шт.
17
G10311
COLLAR
- pilot (use only w/4 speed trans.)
1шт.
18
A29540
PIN
DOWEL - torque tube to trans. case
1шт.
19
A38306
DIPSTICK
- oil level
1шт.
20
A38660
GASKET
- dipstick
1шт.
21
G1098
COVER - top (w/no hitch)
1шт.
22
113-228
X
BOLT - hex hd. (3/8 x 1-1/4" N.C.) (Gr. 8)
7шт.
23
113-236
X
BOLT - hex hd. (3/8 x 2" N.C.) (Gr. 8)
4шт.
24
92-6
LOCK WASHER,3/8"
11шт.
25
G10462
GASKET
- top cover
1шт.
26
A27173
BREATHER
- oil
1шт.
27
A36885
COVER - rear (w/no P.T.O.)
1шт.
28
G10447
GASKET
- rear cover
1шт.
29
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
6шт.
30
92-6
LOCK WASHER,3/8"
6шт.
31
A35013
HOUSING - axle (includes bearing cups)
2шт.
32
G10347
O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro
"O" RING - axle housing
2шт.
33
113-662
SCREW
BOLT - hex hd. (5/8 x 2" N.C.) (use w/o hitch)
6шт.
35
113-661
BOLT - hex hd. (5/8 x 1-3/4" N.C.) (use w/o hitch)
4шт.
36
193-34
LOCK WASHER,Int Tooth, 5/8"
WASHER, LOCK, Int Tooth, 5/8"
4шт.
37
113-661
BOLT - hex hd. (5/8 x 1-3/4" N.C.) (use w/hitch)
1шт.
38
193-34
LOCK WASHER,Int Tooth, 5/8"
WASHER, LOCK, Int Tooth, 5/8"
2шт.
39
113-662
SCREW
BOLT - hex hd. (5/8 x 2" N.C.) (use w/hitch)
6шт.
Выбрано товаров: 37
