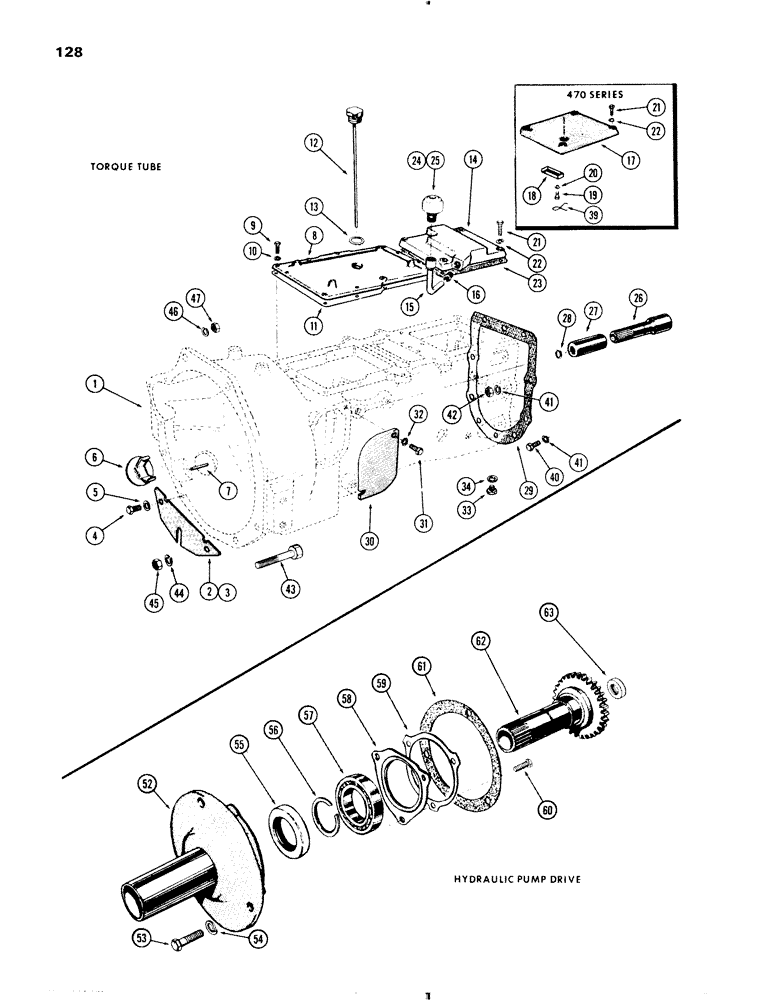

Запчасти Case IH 470 (128) - TORQUE TUBE (06) - POWER TRAIN

1

A37976

TUBE - torque

1шт.

2

A35842

COVER

- flywheel (w/adj. front axle)

1шт.

3

G17029

COVER - flywheel (w/dual front wheel)

1шт.

4

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

A35216

COVER

- timimg hole

1шт.

7

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pointer 1/8" x 1 1/2", Slotted

1шт.

8

A37789

CAP

COVER - front (w/no hydraulics)

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

11шт.

10

92-6

LOCK WASHER,3/8"

11шт.

11

G10876

GASKET

- front cover

1шт.

12

A38306

DIPSTICK

- oil, torque tube

1шт.

13

A38660

GASKET

- dipstick

1шт.

14

G1360

COVER - rear (570 w/4 speed trans.)

1шт.

15

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE - oil breather (570)

1шт.

16

222-508

TUBE NUT,1"-18

NUT - breather tube (570)

1шт.

17

G1339

COVER - rear (470 w/4 speed trans.)

1шт.

18

G16525

DEFLECTOR - oil (470)

1шт.

19

G49011

BOLT - drilled (1/4 x 3/4" N.C. hex hd.)

2шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex hd. (3/8 x 1-1/2" N.C.)

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

G46842

GASKET

- rear cover

1шт.

24

A9238

BREATHER

- oil, rear cover (includes ref. 25)

1шт.

25

A10059

FILTER, ELEMENT

ELEMENT - filter, breather

1шт.

26

G10615

SLEEVE - coupling (w/4 speed trans.)

1шт.

27

A37569

COUPLING

SLEEVE - coupling (w/4 speed & 8 speed trans.)

1шт.

28

G10438

RING

- snap (use w/A37569 coupling)

1шт.

29

A39029

GASKET

- torque tube to trans. case

1шт.

30

A7082

COVER

- hand hole

1шт.

31

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex hd. (3/8 x 1/2" N.C.)

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

A14280

PLUG

- drain, torque tube

1шт.

34

A58608

GASKET

- drain plug

1шт.

39

391-644

WIRE - lock

1шт.

40

113-465

BOLT

- hex hd. (1/2 x 2" N.C.), torque tube to trans. case

4шт.

41

92-8

LOCK WASHER,1/2"

trans. case bolts & studs 1/2"

8шт.

42

25-178

NUT,1/2"-20, G5, Hvy

- hex (1/2" N.F.) trans. case studs

4шт.

43

A30099

X

BOLT - torque, Serial Range: tube-engine

2шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

45

25-1710

NUT,5/8"-18, G5, Hvy

- hex (5/8" N.F.)

2шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

47

25-1110

NUT,5/8"-18, G5

- hex (5/8" N.F.), engine studs

2шт.

52

A37612

HOUSING

- hydraulic pump drive

1шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hydraulic pump drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

54

92-6

LOCK WASHER,3/8"

hydraulic pump drive 3/8"

3шт.

55

A37615

OIL SEAL

- oil, drive housing, hydraulic pump drive

1шт.

56

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, rear, hydraulic pump drive

1шт.

57

G10418

BEARING, BALL

BEARING - drive gear, hydraulic pump drive

1шт.

58

A37616

RETAINER

CAP - bearing retainer, hydraulic pump drive

1шт.

59

G10382

LOCK

- bearing cap, hydraulic pump drive

1шт.

60

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Hydraulic pump drive Hex, 5/16"-18 x 1/2", G5, Full Thd

3шт.

61

G10407

GASKET

- housing, hydraulic pump drive

1шт.

62

A37610

GEAR

- pump drive, hydraulic pump drive

1шт.

63

A37611

OIL SEAL

- oil, drive gear, hydraulic pump drive

1шт.
