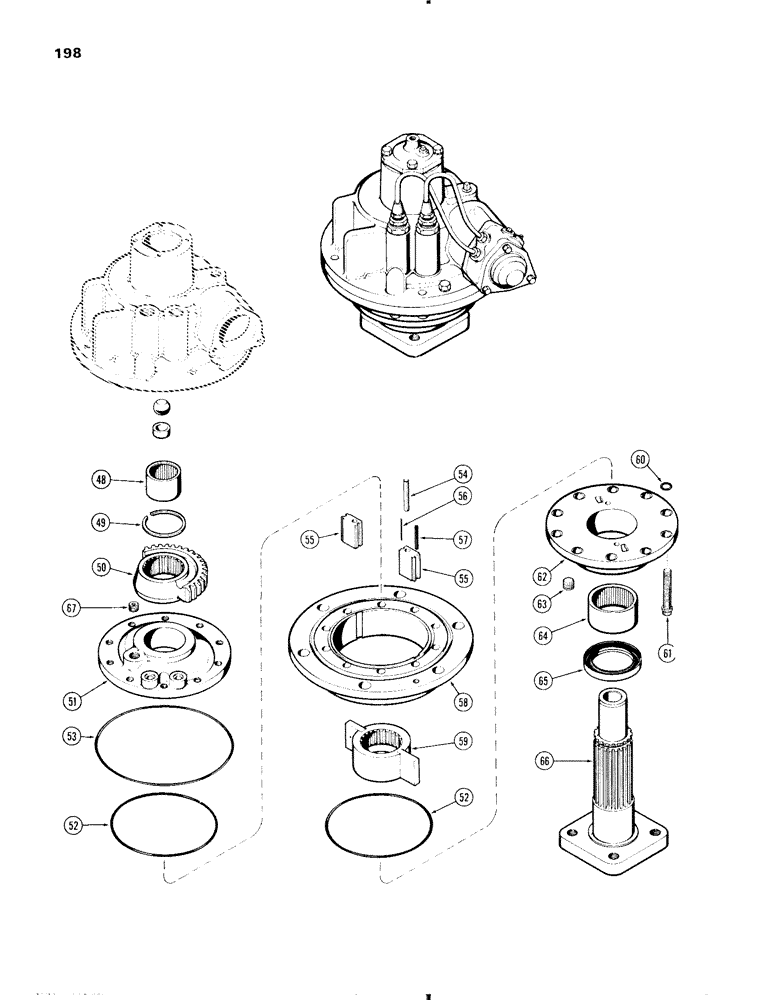

Запчасти Case IH 470 (198) - POWER STEERING GEAR, WITH DUAL FRONT WHEEL (05) - STEERING

A36571

GEAR ASSY. - (Cont'd From Page 197) (includes ref. 48 - 67)

1шт.

48

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle, upper

1шт.

49

A27760

RING, SNAP

RING - snap, sector gear retaining

1шт.

50

A33061

GEAR

- sector

1шт.

51

A7972

COVER - vane, upper

1шт.

52

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - vane body (6-1/4 x 6-1/2 x 1/8")

2шт.

53

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O" RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

54

A7975

PIN

- stationary vane

2шт.

55

A34186

VALVE

VANE - stationary

2шт.

56

A57042

SEAL

- stationary vane (9/64 x 1-3/4") (rubber)

2шт.

57

A24701

SEAL

SEAL - stationary vane (13/64 x 1-3/4") (rubber)

2шт.

58

A7971

BODY - vane

1шт.

59

A20354

VANE - torque motor

1шт.

60

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - cover bolts (7/16 x 5/8 x 3/32")

10шт.

61

166-72

BOLT - cover (7/16 x 2-3/4" N.C., 12 pt. sckt. hd.)

10шт.

62

A7973

COVER - vane, lower

1шт.

63

221-841

PLUG

- cover (1/4" P.T., socket head)

1шт.

64

A28311

BEARING, NEEDLE,63.5 mm ID x 73.139 mm OD x 38.1 mm

BEARING - needle, spindle, lower

1шт.

65

A24166

SEAL

- oil, spindle (2-1/2 x 3-1/2 x 1/2")

1шт.

66

A8649

SPINDLE - steering

1шт.

67

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" hex, socket hd.)

1шт.
