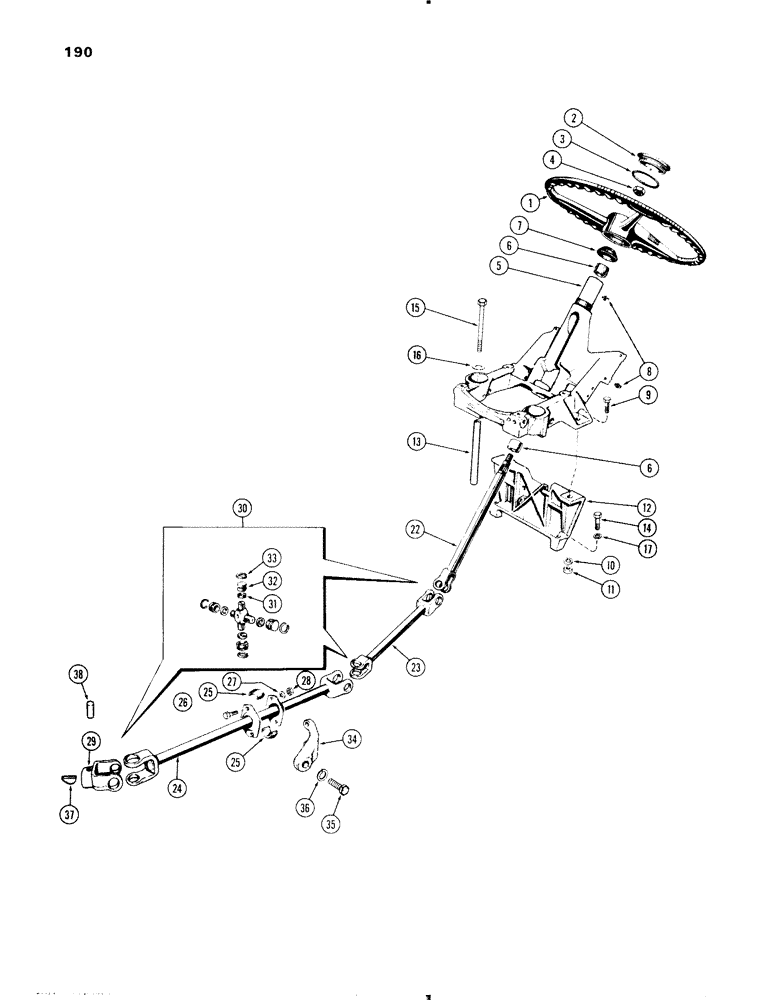

Запчасти Case IH 470 (190) - STEERING WHEEL AND LINKAGE, 470 WITH DUAL FRONT WHEEL (05) - STEERING

1

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

2

A38785

CYLINDER END CAP

MEDALLION - steering wheel

1шт.

3

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

4

25-1512

JAM NUT,Jam, 3/4"-10, G5

- wheel retaining (3/4" N.F. jam)

1шт.

5

A35423

COLUMN ASSY. - steering (includes ref. 6)

1шт.

6

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering column

2шт.

7

G10742

SEAL

- dust, steering column

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (1/4" P.T. x 180 deg.) 1/4"-28 NPT x .54" lg

2шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Strg. col. to support Hex, 3/8"-16 x 1 3/4", G5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A36705

SUPPORT - steering column

1шт.

13

G10747

SPACER - support (7-3/8" long) 0.75" OD x 7.375" L

2шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Support Hex, 3/8"-16 x 2 1/4", G5

2шт.

15

15-6128

BOLT

- column (3/8 x 8" N.C. hex hd.)

2шт.

16

195-25

WASHER,3/8"

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

22

A20683

SHAFT - steering, upper

1шт.

23

G13131

SHAFT - steering, intermediate

1шт.

24

A40603

SHAFT ASSY. - steering, lower (diesel) (includes ref. 25 - 28)

1шт.

24

G14033

SHAFT ASSY. - steering, lower (gas) (includes ref. 25 - 28)

1шт.

25

G17025

CYLINDER END CAP

BEARING - half shell

2шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bearing flange Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

2шт.

29

G10897

YOKE

- universal joint, front

1шт.

30

A30435

KIT

UNIVERSAL JOINT ASSY. (includes ref. 31, 32 & 33)

3шт.

31

A30766

WASHER - cork

4шт.

32

NSS

NOT SOLD SEPARAT

BEARING - (Order A30435)

4шт.

33

A31149

RING, SNAP

RING - snap, bearing retaining

4шт.

34

G1720

BRACKET - bearing support

1шт.

35

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- bracket (5/8 x 1-3/4" N.C. hex)

1шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Yoke to worm shaft #15, 1/4" x 1"

1шт.

38

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Yoke to worm shaft 1/4" x 1 1/2", Slotted

1шт.
