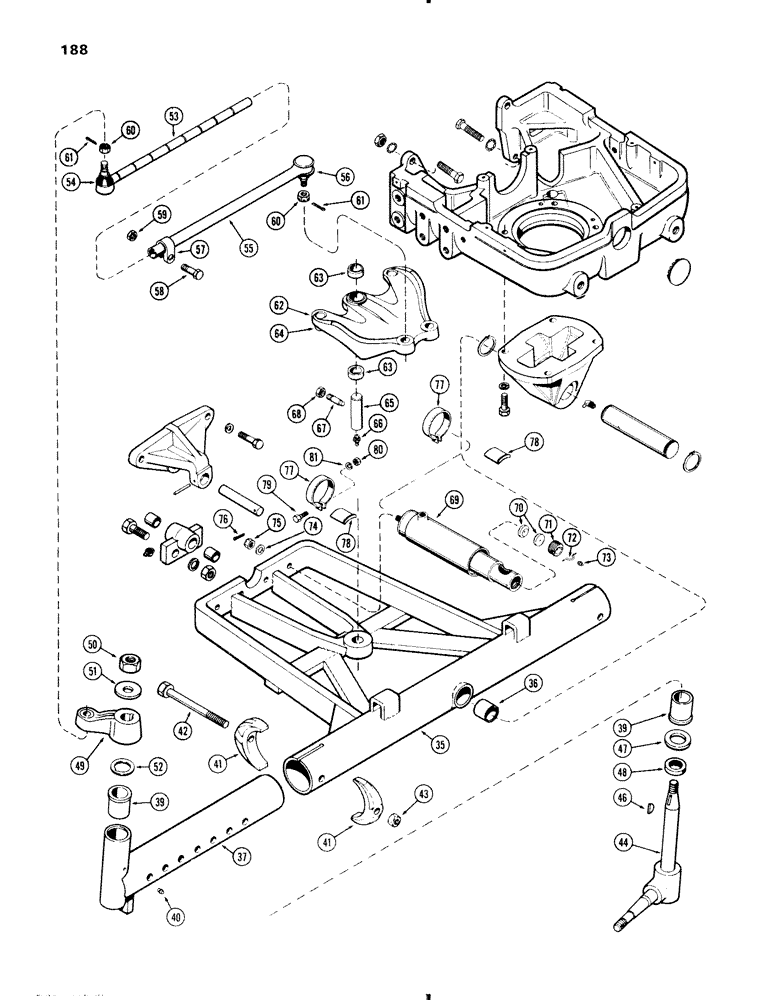

Запчасти Case IH 470 (188) - ADJUSTABLE FRONT AXLE - 48" TO 72" (05) - STEERING

35

A36790

AXLE ASSY. - center section (includes ref. 36)

1шт.

36

A36626

BUSHING

- pivot (1-3/4 x 1-5/16 x 1-5/8")

2шт.

37

A40745

EXTENSION ASSY. - front axle (includes ref. 39)

2шт.

39

A36637

BUSHING,34.82mm ID x 41.43mm OD x 50.8mm L

- spindle

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. x 180 deg.)

2шт.

41

A36638

CLAMP

- extension to center section

4шт.

42

113-641

X

BOLT - (5/8 x 6-1/2" N.C. hex hd.) (Grade 8)

2шт.

43

25-1610

NUT,5/8"-11, G5, Hvy

- hex (5/8" N.C.)

2шт.

44

A36639

SPINDLE

- wheel

2шт.

46

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Arm to spindle #G, 3/8" x 1 1/2"

2шт.

47

A37051

WASHER

- thrust, wheel spindle

2шт.

48

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - thrust, wheel spindle

2шт.

49

A36802

ARM - steering, R.H.

1шт.

49

A36803

ARM - steering, L.H.

1шт.

50

25-1516

NUT,Jam, 1"-14, G5

- hex (1" N.C., jam)

2шт.

51

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

2шт.

52

A29467

SHIM,.010" Thk

Steering arm (1-13/32" x 2-1/8") .010" Thk

1шт.

53

A40524

ROD

- tie, steering arm (15-11/16" long) (includes ref. 54)

2шт.

54

G46043

COVER

SEAL - dust

1шт.

55

A40791

TUBE

ASSY. - tie rod (18-1/4" long) (includes ref. 56) (does not include ref. 57)

2шт.

56

G46043

COVER

SEAL - dust

1шт.

57

A41449

CLAMP

- tube

1шт.

58

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- (1/2 x 2" N.C. hex hd.) (Grade 8)

2шт.

59

25-168

NUT,1/2"-13, G5, Hvy

- (1/2" N.C. hex, heavy)

2шт.

60

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16" N.F. slotted hex)

4шт.

61

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

62

A38144

ARM

ASSY. - center steering (includes ref. 63 & 64)

1шт.

63

A36645

BUSHING,25.25mm ID x 34.98mm OD x 16.13mm L

- pivot

2шт.

64

A38145

BALL

- arm

2шт.

65

A36648

PIN

- pivot, center steering arm

1шт.

66

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" P.T. x 180 deg.)

1шт.

67

178-260

SET SCREW,Hex Soc, 3/8"-16 x 1 1/4"

SCREW - set (3/8 x 1-1/4" N.C., sckt. hd. dog pt.)

1шт.

68

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex (3/8" N.C. jam)

1шт.

69

A36761

CYLINDER ASSY. - hydraulic (For Repairs See Page 181)

2шт.

70

A57918

SEAT

BEARING - ball stud

4шт.

71

A38164

ADJUSTMENT SCREW

SCREW - adjusting

2шт.

72

A36763

ELECTRICAL WIRE

WIRE - lock, adjusting screw

2шт.

73

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. x 180 deg.)

2шт.

74

A28084

WASHER

- (41/64 x 1-1/2 x 3/16")

2шт.

75

A31194

NUT - cyl. to axle (9/16" N.F. hex, slotted)

2шт.

76

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

77

A37948

CLAMP - cylinder stabilizer

2шт.

78

A38786

PLATE

STRAP - cylinder clamp

2шт.

79

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

80

25-104

NUT,1/4"-20, G5

2шт.

81

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
