Запчасти Case IH 470 (180) - HYDROSTATIC STEERING, A37980 CONTROL VALVE (05) - STEERING

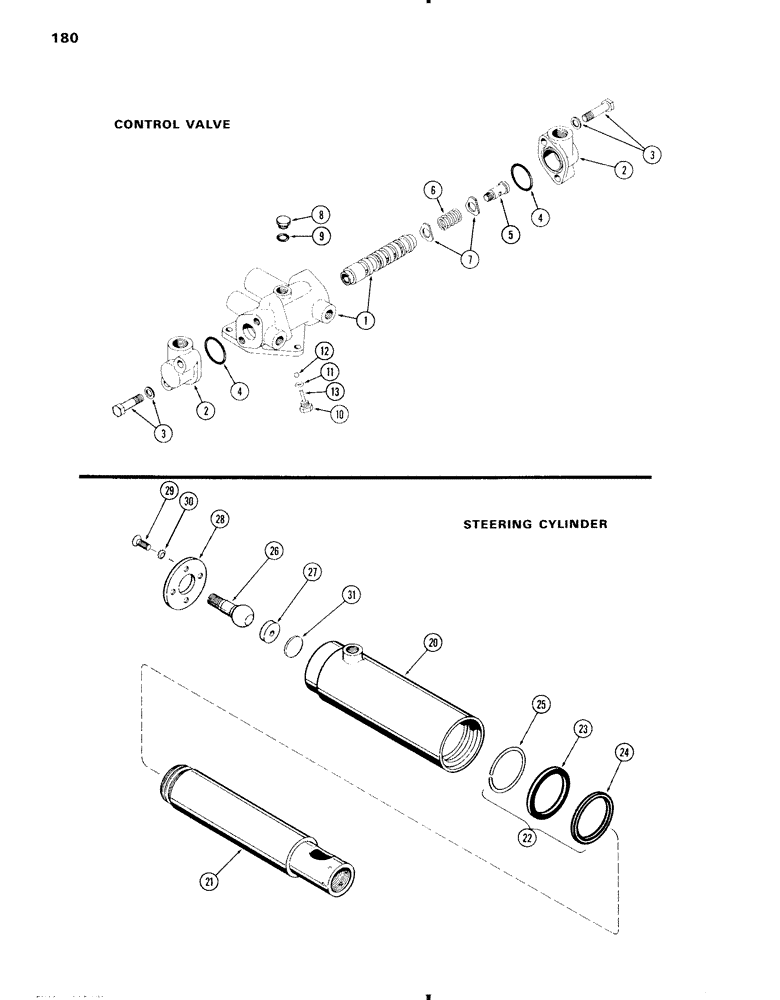

Схема запчастей Case IH 470 - (180) - HYDROSTATIC STEERING, A37980 CONTROL VALVE (05) - STEERING
10
26
13
22
29
28
23
2
11
9
4
3
24
4
2
25
8
12
27
31
5
20
21
1
7
6
30
3

Артикул

Название

Примечание

Количество

A37980

VALVE

ASSY. - control (includes ref. 1 - 13)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY & SPOOL - control valve (Order A37980)

1шт.

2

F19624

CAP

- end

2шт.

3

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (includes washer)

4шт.

4

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

5

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

6

F19622

VALVE SPRING

SPRING - centering

1шт.

7

F19619

WASHER

- spring retaining

2шт.

8

F83122

PLUG

ASSY. - top, valve body (includes ref. 9)

1шт.

9

F19628

O-RING

"O" RING - plug

1шт.

10

F82943

VALVE

PLUG ASSY. - relief valve (includes ref. 11, 12 & 13)

1шт.

11

F19630

O-RING

"O" RING - relief plug

1шт.

12

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

1шт.

13

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

A36761

CYLINDER ASSY. - hydraulic steering, A36761 (includes ref. 20 - 31)

2шт.

20

NSS

NOT SOLD SEPARAT

BARREL - cyl. body (Order A36761), steering cylinder

1шт.

21

A40372

ROD

- piston, A36761 steering cylinder

1шт.

22

A40376

KIT

SEAL KIT - cylinder, A36761 steering (includes ref. 23, 24 & 25)

1шт.

23

A40368

X

WIPER - oil, front (2-1/8 x 2-1/2 x 3/16"), A36761 steering cylinder

1шт.

24

A40371

CUPEL

SEAL - oil, rear (2-1/8 x 2-1/2 x 3/8"), A36761 steering cylinder

1шт.

25

A40369

RING, SNAP

RING - snap, piston rod retaining, A36761 steering cylinder

1шт.

26

A40374

STUD

- ball, A36761 steering cylinder

1шт.

27

A40375

SEAT

- ball stud, A36761 steering cylinder

1шт.

28

A40373

PLATE

- ball stud retaining, A36761 steering cylinder

1шт.

29

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- plate (1/4 x 5/8" N.C., flat hd. Phillips), A36761 steering cylinder

4шт.

30

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , A36761 steering cylinder Ext Csk Tooth, 1/4"

4шт.

31

A40824

SHIM - ball stud seat (.005"), A36761 steering cylinder

1шт.

31

NLS

NO LONGER SERVICED

SHIM - ball stud seat (.010"), A36761 steering cylinder

1шт.

Выбрано товаров: 28
