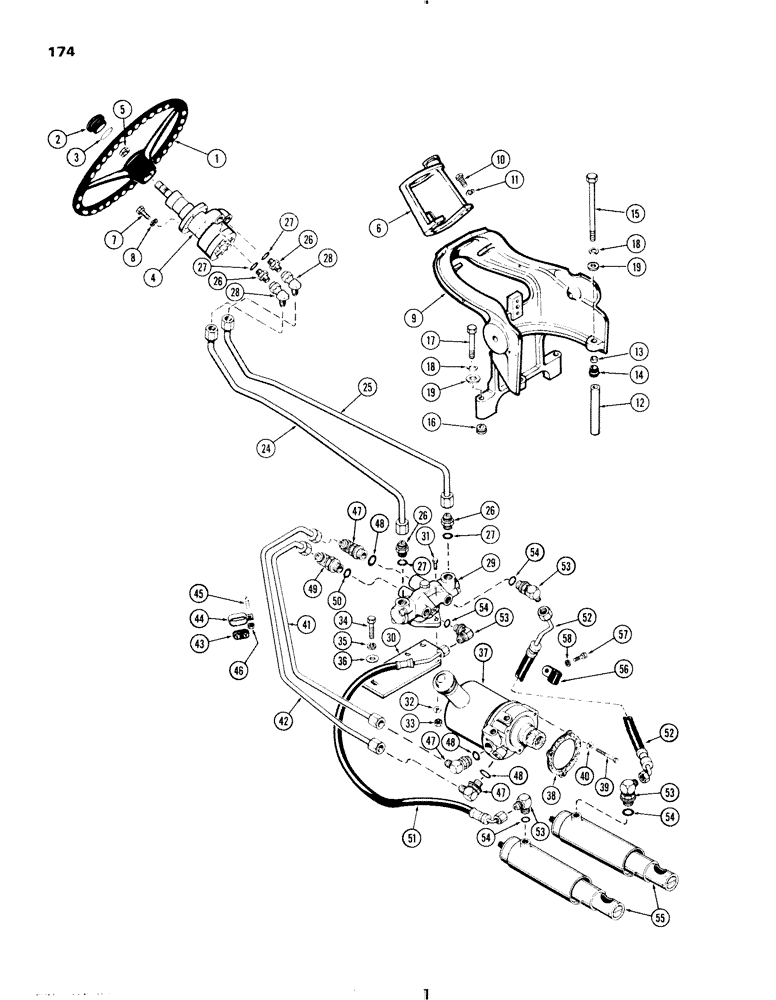

Запчасти Case IH 470 (174) - 570 HYDROSTATIC STEERING (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A35602
STEERING WHEEL
WHEEL - steering
1шт.
2
A38785
CYLINDER END CAP
MEDALLION - steering wheel
1шт.
3
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")
1шт.
4
A35579
PUMP
ASSY. - manual (For Repairs See Page 177) (includes ref. 5)
1шт.
5
A14567
JAM NUT
- steering wheel to hand pump
1шт.
6
A38019
COIL SPRING
COLUMN - upper
1шт.
7
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Hand pump Hex, 5/16"-18 x 1", G5, Full Thd
3шт.
8
92-5
LOCK WASHER,5/16"
3шт.
9
A36178
SUPPORT - steering column, lower
1шт.
10
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Column to support Hex, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
11
92-6
LOCK WASHER,3/8"
3шт.
12
G49624
SPACER
- support mtg. (front lower) (4-7/8" long)
2шт.
13
G11270
SPACER
- support mtg. (front upper) (diesel)
2шт.
14
G45343
COMPOSITE RING
BUSHING - support mtg. (diesel)
4шт.
15
15-6104
X
BOLT - strg. col. support, front (3/8 x 6-1/2" N.C. hex)
2шт.
16
A35627
BUSHING
- strg. col. support, rear (w/gas engine)
4шт.
16
G49622
SPACER,5/8" Tube x 1 7/16"
- support mtg., rear (w/diesel engine)
2шт.
17
113-248
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
Strg. col. suppt., rear Hex, 3/8"-16 x 2 3/4", G5
2шт.
18
192-72
WASHER - lock (3/8" int./ext.)(plated)
2шт.
19
95-6
WASHER,3/8"
- lock () 3/8"
3шт.
24
A35600
TUBE
- pump to valve, right hand
1шт.
25
A35601
TUBE
- pump to valve, left hand
1шт.
26
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR, HYD., , Assy (at valve & pump) (Incl. Ref 27) 3/4"-16, 37º x 3/4"-16, O-Ring
4шт.
27
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - connector (41/64" I.D. x 5/64")
1шт.
48
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - elbow (41/64" I.D. x 5/64")
1шт.
28
218-5173
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC
- (at pump) (45 deg. swivel)
2шт.
29
A37980
VALVE
ASSY. - control (For Repairs See Page 181)
1шт.
30
A35581
SPLIT PIN/SAFETY PIN
PLATE - valve mounting
1шт.
31
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Valve to plate Hex, 3/8"-16 x 1 1/8", G5, Full Thd
3шт.
32
92-6
LOCK WASHER,3/8"
3шт.
33
25-106
NUT,3/8"-16, G5
- hex (3/8" N.C.)
3шт.
34
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Plate Hex, 5/16"-18 x 1", G5, Full Thd
2шт.
35
92-5
LOCK WASHER,5/16"
2шт.
36
95-5
WASHER,3/8" x 7/8" x .083"
- plain (5/16")
2шт.
37
A36559
PUMP
ASSY. - power (For Repairs See Page 179)
1шт.
38
A30042
GASKET
- power steering pump
1шт.
39
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- pump (3/8 x 3-1/4" N.C. hex)
3шт.
40
92-6
LOCK WASHER,3/8"
3шт.
41
A35732
TUBE
- pressure (Diesel) (31-5/8" long)
1шт.
41
A35730
TUBE ASSY.
TUBE - pressure (Gas) (30-3/8" long)
1шт.
42
A35733
TUBE
- return (Diesel) (33-3/8" long)
1шт.
42
A35731
TUBE - return (Gas) (33-1/8" long)
1шт.
43
G46835
GROMMET
CUSHION - pump tubes
1шт.
44
G46194
CLAMP
- tube cushion
1шт.
45
174-203
SCREW,Phil Rnd Hd, #10 - 32 x 3/4"
- clamp (#10 x 3/4" N.F. rd. hd.)
1шт.
46
193-1000
NUT,Keps, w/LW,#10-32
- hex (#10 N.F.)
1шт.
47
A37080
ELBOW
- pump lines (90 deg.)
3шт.
49
A35613
ELBOW
ASSY. - pump tube (90 deg.) (includes ref. 50)
1шт.
50
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Elbow
1шт.
51
A36806
TUBE ASSY.
HOSE - valve to right hand cyl. (37-1/2" long)
1шт.
52
A37081
TUBE ASSY.
HOSE - valve to left hand cyl.
1шт.
53
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
ASSY. - hoses (90 deg.) (includes ref. 54)
4шт.
54
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, elbow
1шт.
55
A36761
CYLINDER ASSY. - steering (For Repairs See Page 181)
2шт.
56
A32569
CLAMP - hose, cylinder
2шт.
57
13-1012
BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd
Clamp Hex, 5/8"-11 x 3/4", G5, Full Thd
2шт.
Выбрано товаров: 57
