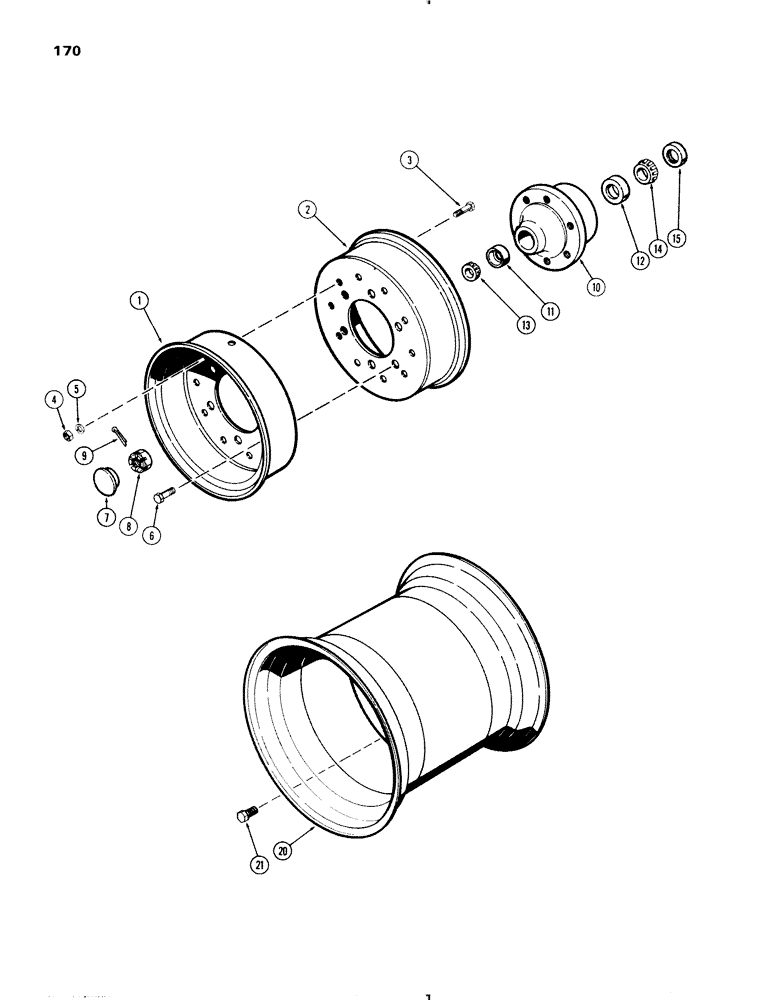

Запчасти Case IH 470 (170) - FRONT WHEELS, 10" LOW PROFILE TIRES, STANDARD 4 WHEEL TRAC.(USED W/16" REAR TIRES) (05) - STEERING

1

A36740

WHEEL

- outer ball (7.50 x 10" tire) (use w/A36744 rear wheel) (See Ref. 20)

2шт.

2

A36741

WHEEL

- inner half (7.50 x 10" tire) (use w/A36744 rear wheel) (See Ref. 20)

2шт.

3

113-456

BOLT - (1/2 x 1" N.C. hex) wheel halves

20шт.

4

129-557

NUT,1/2"-13, G5

- (1/2" N.C. hex) plated

20шт.

5

193-23

LOCK WASHER,Int Tooth, #5

WASHER - (1/2" lock) plated

20шт.

6

A30064

BOLT

- front, Serial Range: wheel-hub

12шт.

7

B13280

HUB CAP

CAP - front wheel hub

2шт.

8

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. slotted hex)

2шт.

9

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

10

G13065

X

HUB ASSY. - front wheel (includes ref. 11 & 12)

2шт.

11

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing

1шт.

12

G57451

BEARING, CUP

CUP - inner bearing

1шт.

13

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing

2шт.

14

G57452

ROLLER BEARING

CONE - inner bearing

2шт.

15

G13053

OIL SEAL

- oil, spindle hub

2шт.

20

A36744

RIM

WHEEL - integral, rear (18.4 x 16" tire) (use w/A36740 & A36741 front wheel)

2шт.

21

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8 x 1" N.F. special)

16шт.
