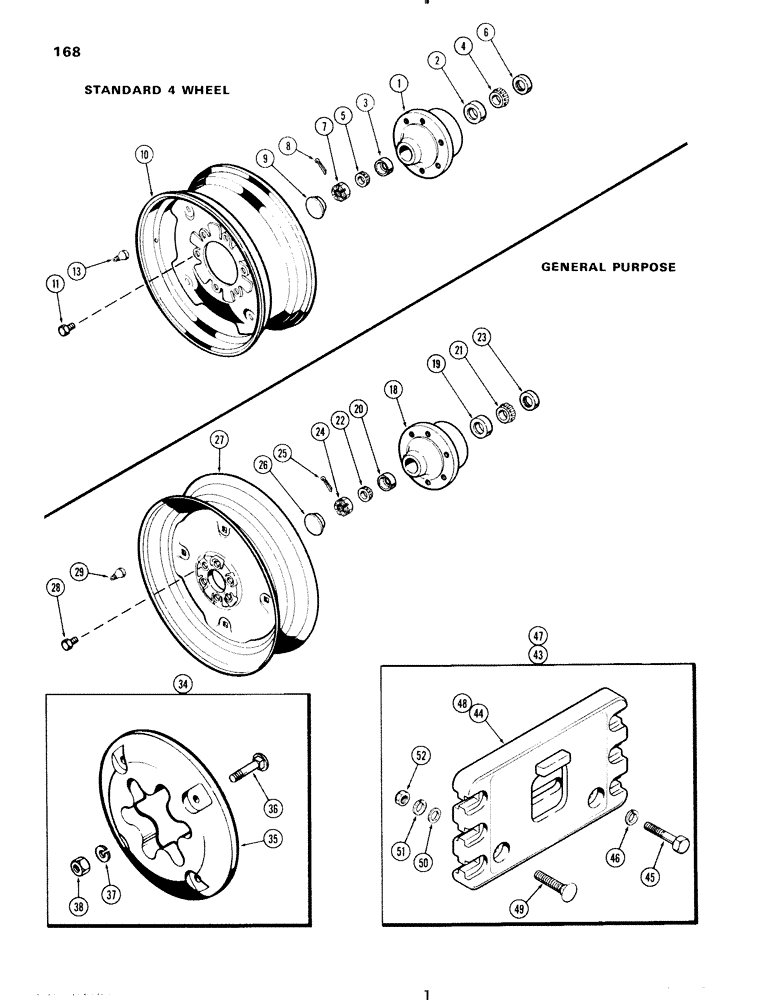

Запчасти Case IH 470 (168) - FRONT WHEELS, STANDARD 4 WHEEL TRACTOR (05) - STEERING

1

G13065

X

HUB ASSY. - front wheel (includes ref. 2 & 3)

2шт.

2

G57451

BEARING, CUP

CUP - inner bearing

1шт.

3

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing

1шт.

4

G57452

ROLLER BEARING

CONE - inner bearing

2шт.

5

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing

2шт.

6

G13053

OIL SEAL

- oil, inner

2шт.

7

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex to spindle (3/4" N.F. slotted hex)

2шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

B13280

HUB CAP

CAP - hub

2шт.

10

A36738

RIM

WHEEL - front (6.00 x 14" tire) (1-1/8" offset)

2шт.

10

A36743

WHEEL

- front (5.90 x 15" tire) (1-1/8" offset)

2шт.

10

A38938

RIM

WHEEL - front (5.50 & 6.00" x 16" tire) (1-1/8" offset)

2шт.

10

A37054

WHEEL

- front (7.60 x 15" tire) (3/4" offset)

2шт.

11

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

13

A38261

VALVE

- tubeless rim (use w/5.90 x 15" tire, 1-1/8" offset), (5.50 or 6.00 x 16" tire, 1-1/8" offset) and (7.60 x 15" tire, 3/4" offset)

2шт.

18

G13065

X

HUB ASSY. - front wheel, general purpose models (includes ref. 19 & 20)

2шт.

19

G57451

BEARING, CUP

CUP - inner bearing, general purpose models

1шт.

20

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing, general purpose models

1шт.

21

G57452

ROLLER BEARING

CONE - inner bearing, general purpose models

2шт.

22

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing, general purpose models

2шт.

23

G13053

OIL SEAL

- oil, inner, general purpose models

2шт.

24

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. slotted hex), general purpose models

2шт.

25

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , General purpose models 1/8" x 1 1/4"

2шт.

26

B13280

HUB CAP

CAP - hub, general purpose models

2шт.

27

A37054

WHEEL

- front (7.60 x 15" tire) (2/4" offset), general purpose models

2шт.

27

A38938

RIM

WHEEL - front (5.50 & 6.00 x 16" tire) (1-1/8" offset), general purpose models

2шт.

28

A30064

BOLT

- wheel to hub, general purpose models

12шт.

29

A38261

VALVE

- tubeless rim, general purpose models

2шт.

34

G12050M

WEIGHT ATT. - front wheel (Set of 2) (includes ref. 35 - 38)

1шт.

35

NSS

NOT SOLD SEPARAT

WEIGHT - (134 lb.) (Order G12050M), front wheel

2шт.

36

11-848

BOLT - (1/2 x 3" round head, square neck), front wheel weights

8шт.

37

92-8

LOCK WASHER,1/2"

front wheel weights 1/2"

8шт.

38

25-108

NUT,1/2"-13, G5

- hex (1/2" N.C.), front wheel weights

8шт.

43

A36980M

WEIGHT ATT. - front end (1st set) (includes ref. 44, 45 & 46)

1шт.

44

NSS

NOT SOLD SEPARAT

WEIGHT - (100 lb.) (Order A36980M), front end

1шт.

45

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Front end weights Hex, 3/4"-10 x 2 1/2", G5

2шт.

46

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4"

2шт.

47

A33260M

WEIGHT ATT. - front (added), front end (includes ref. 48 - 52)

1шт.

48

NSS

NOT SOLD SEPARAT

WEIGHT - (100 lb.) (Order A33260M), front end

1шт.

49

B90584

BOLT

- (3/4" x 4" round head, square neck), front end weights

2шт.

50

A34920

WASHER

- plain, front end weights

2шт.

51

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4"

2шт.

52

25-1012

NUT,3/4"-10, G5

Front end weights 3/4"-10, G5

2шт.
