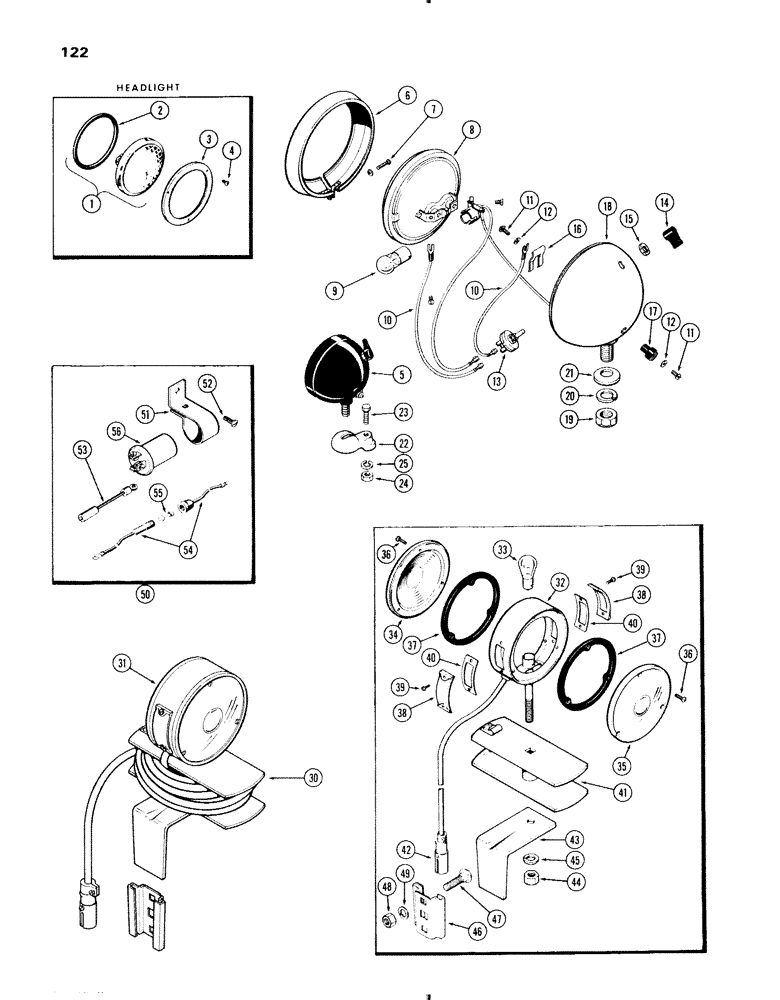

Запчасти Case IH 470 (122) - HEAD LAMP PARTS (04) - ELECTRICAL SYSTEMS

1

A24572

LAMP

KIT - head, replacement

2шт.

2

A11276

GASKET

- lamp unit

1шт.

3

A11275

RING

- retainer, lamp unit

2шт.

4

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - #6 x 1" self-tapping

6шт.

5

A20965

LAMP BASE

LAMP - tail and flood, combination

1шт.

6

B50255

MOLDING

- lamp, combination flood and tail

1шт.

7

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding, combination flood and tail lamp

1шт.

8

A40855

LAMP BASE

LAMP - sealed unit (#4428), combination flood and tail

1шт.

9

B50223

BULB

- red (#1003R), combination flood and tail lamp

1шт.

10

B50273

WIRE - switch to terminal & lamp unit, combination flood and tail lamp

2шт.

11

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal, #8-32 x 1/4" rd. hd., combination flood and tail lamp

2шт.

12

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - lock, #8 int. Shakeproof, combination flood and tail lamp

2шт.

13

B50275

SWITCH

- lamp, combination flood and tail

1шт.

14

B50310

SWITCH

KNOB - switch, combination flood and tail lamp

1шт.

15

B50224

SPECIAL NUT

- switch, combination flood and tail lamp

1шт.

16

10927

SPRING

- retainer, wire terminal, combination flood and tail lamp

1шт.

17

B50293

TERMINAL CONNECTOR

TERMINAL - wire, combination flood and tail lamp

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A20965), combination flood and tail lamp

1шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

Mounting stud, combination flood and tail lamp 1/2"-13, G5

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Combination flood and tail lamp 1/2"

1шт.

21

10923

WASHER

- bearing, lamp mounting, combination flood and tail

1шт.

22

A34046

BRACKET

- lamp to fender, combination flood and tail

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket to fender, combination flood and tail lamp Hex, 3/8"-16 x 1 1/2", G5

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Combination flood and tail lamp 3/8"-16, G5

1шт.

25

193-72

LOCK WASHER

- lock, 3/8" int.-ext. Shakeproof, combination flood and tail lamp

1шт.

30

A11066

WARNING LAMP KIT - (Mach. Item), combination flood and tail

1шт.

31

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066), warning attachment

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - lamp, warning attachment

1шт.

33

33686

BULB

- 12 volt 21 C.P. (#1141), warning lamp attachment

1шт.

34

B50337

LENS

- front (amber), warning lamp attachment

1шт.

35

B53962

LENS

- rear (red), warning lamp attachment

1шт.

36

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6-32 x 1/2" rd. hd., warning lamp attachment

6шт.

37

B50317

GASKET - lens, warning lamp attachment

2шт.

38

B50328

LENS - side, warning lamp attachment

2шт.

39

182-43

SCREW - side lens, #6-20 x 5/16" pan hd., warning lamp attachment

4шт.

40

B50329

GASKET - side lens, warning lamp attachment

2шт.

41

B50330

SPOOL - cable, warning lamp attachment

1шт.

42

B50259

PLUG

- auxiliary socket (on tractor), warning lamp attachment

1шт.

43

B50331

BRACKET - lamp mounting, warning attachment

1шт.

44

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, warning lamp attachment

1шт.

45

92-7

LOCK WASHER,7/16"

warning lamp attachment 7/16"

1шт.

46

A8179

SOCKET

- lamp bracket, warning attachment

1шт.

47

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16 x 5/8" N.C. rd. hd. sq. nk., warning lamp attachment

2шт.

48

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex, warning lamp attachment

2шт.

49

92-5

LOCK WASHER,5/16"

warning lamp attachment 5/16"

2шт.

50

A22630

FLASHER ATT. - warning lamp (Mach. Item)

1шт.

51

A22626

BRACKET - flasher mounting, attachment

1шт.

52

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd., flasher attachment

1шт.

53

A22628

WIRE - flasher to socket (2-1/2"), attachment

1шт.

54

A22629

WIRE ASSY. - power to flasher, attachment

1шт.

55

223-4

FUSE,4 Amp, Type 3AG

- (4 amp.), flasher attachment

1шт.

56

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.
