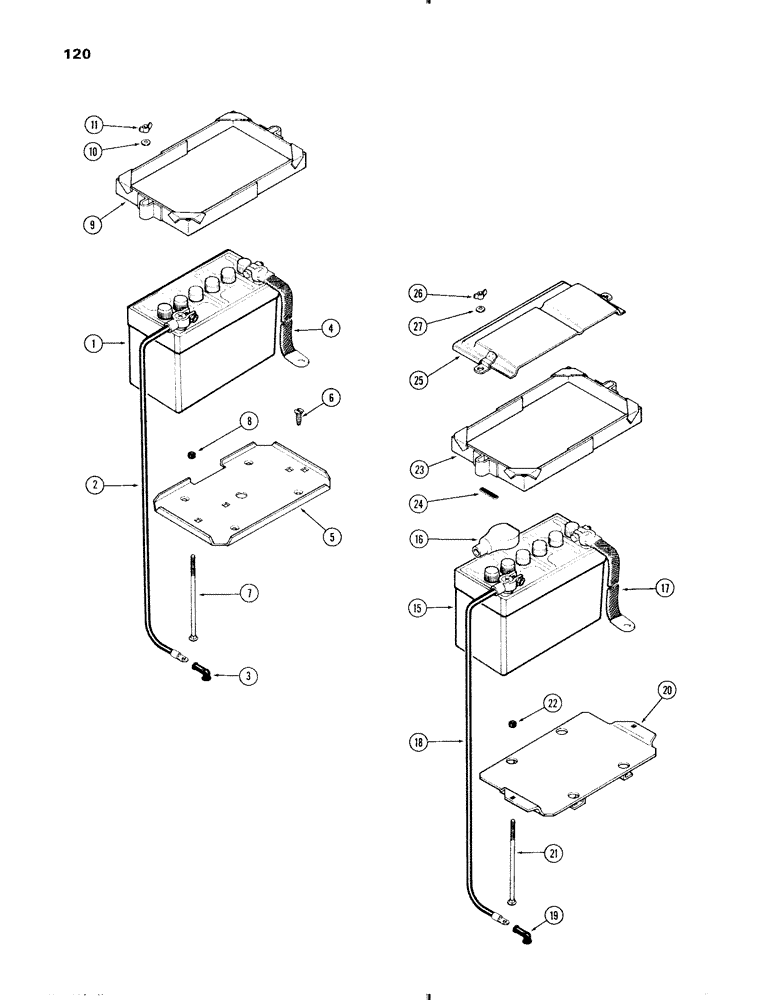

Запчасти Case IH 470 (120) - BATTERY & ATTACHING PARTS, 470 (188) DIESEL ENGINE, 570 (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt

1шт.

2

A38806

CABLE - battery to starter solenoid (36" lg.)

1шт.

3

A21753

CAP

BOOT - solenoid terminal

1шт.

4

A38805

STRAP

- battery ground (16" lg.)

1шт.

5

A38807

BASE - battery

1шт.

6

171-201

SCREW,Flat Hd, 5/16" x 1/2"

- base, 5/16 x 1/2" flat hd. (Spin Lock)

4шт.

7

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - hold-down, 5/16 x 9" N.C. rd. hd. sq. nk.

2шт.

8

G46096

RETAINER

- rubber, bolt

2шт.

9

A38808

FRAME

- battery hold-down

1шт.

10

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 5/16"

2шт.

11

G49020

NUT

- wing, 5/16" N.C.

2шт.

15

A38411

DRY BATTERY

- 12 volt, 570 (188) diesel engine

1шт.

16

A27072

COVER

- battery terminal, 570 (188) diesel engine

1шт.

17

A38805

STRAP

- battery ground (16" lg.), 570 (188) diesel engine

1шт.

18

A38813

CABLE - battery to starter solenoid (43" lg.), 570 (188) diesel engine

1шт.

19

A21753

CAP

BOOT - solenoid terminal, 570 (188) diesel engine

1шт.

20

A38811

BASE - battery, 570 (188) diesel engine

1шт.

21

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - hold-down, 5/16 x 9" N.C. rd. hd. sq. nk., 570 (188) diesel engine

2шт.

22

G46096

RETAINER

- rubber, bolt, 570 (188) diesel engine

2шт.

23

A38808

FRAME

- battery hold-down, 570 (188) diesel engine

1шт.

24

G46881

MOLDING - frame (6" lg.), 570 (188) diesel engine

2шт.

25

A38927

COVER - battery, 570 (188) diesel engine

1шт.

26

G49020

NUT

- wing, 5/16" N.C., 570 (188) diesel engine

2шт.

27

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 5/64", 570 (188) diesel engine

2шт.
