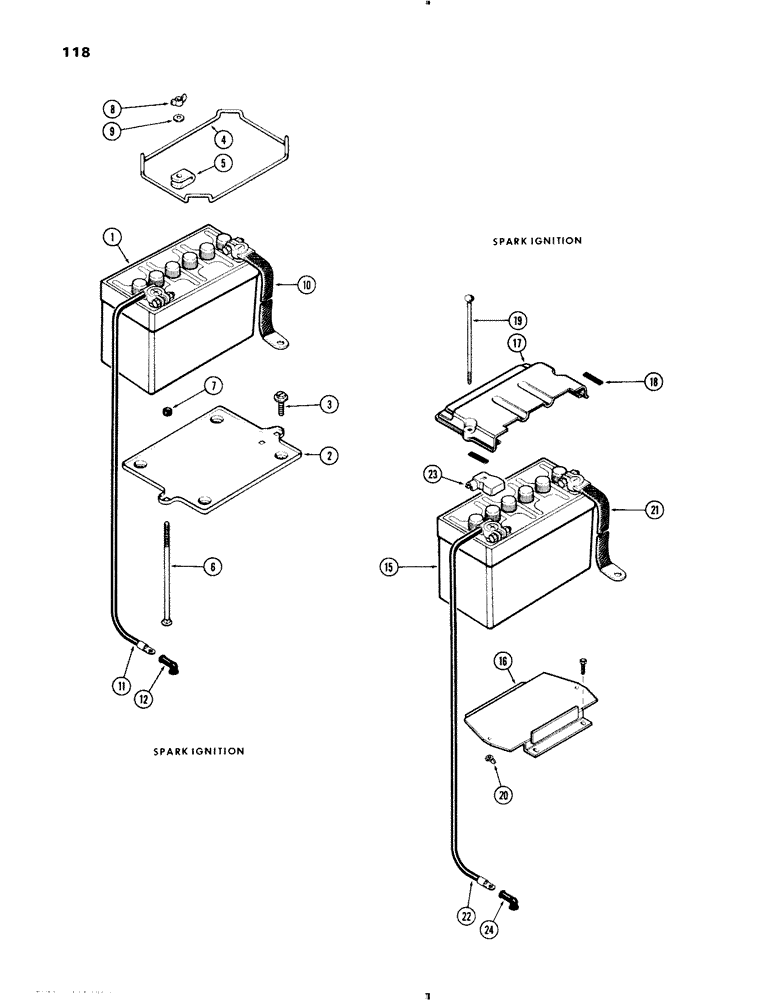

Запчасти Case IH 470 (118) - BATTERY AND ATTACHING PARTS, 470 (148B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

F22631

DRY BATTERY

- 12 volt

1шт.

2

G16909

PAN

- battery base

1шт.

3

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

- pan, 5/16 x 1/2" N.C. hex hd. (Sems)

4шт.

4

A35009

SECURING STRAP

FRAME - battery hold-down

1шт.

5

A35010

CLIP

CLAMP - bolt, hold-down

2шт.

6

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - clamp, 5/16 x 9" N.C. rd. hd. nk.

2шт.

7

G46096

RETAINER

- rubber, clamp bolt

2шт.

8

G49020

NUT

- wing, 5/16" N.C.

2шт.

9

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 5/64"

2шт.

10

A36368

STRAP

- battery ground (15")

1шт.

11

A31061

X

CABLE - battery to starter solenoid (41-1/2")

1шт.

12

A21753

CAP

BOOT - solenoid terminal

1шт.

15

F22631

DRY BATTERY

- 12 volt, 570 (159) spark ignition engine

1шт.

16

G30267

BASE

PAN - battery base, 570 (159) spark ignition engine

1шт.

17

G30268

COVER

- battery hold down, 570 (159) spark ignition engine

1шт.

18

G46164

MOLDING - insulator (2" long), 570 (159) spark ignition engine

2шт.

19

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - cover, 5/16 x 9" N.C. rd. hd. sq. nk., 570 (159) spark ignition engine

2шт.

20

G49020

NUT

- wing, 5/16" N.C., 570 (159) spark ignition engine

2шт.

21

A36368

STRAP

- battery ground (15" long), 570 (159) spark ignition engine

1шт.

22

A31061

X

CABLE - battery to starter solenoid (41-1/2"), 570 (159) spark ignition engine

1шт.

23

G46879

COVER

- battery terminal, 570 (159) spark ignition engine

1шт.

24

A21753

CAP

BOOT - solenoid terminal, 570 (159) spark ignition engine

1шт.
