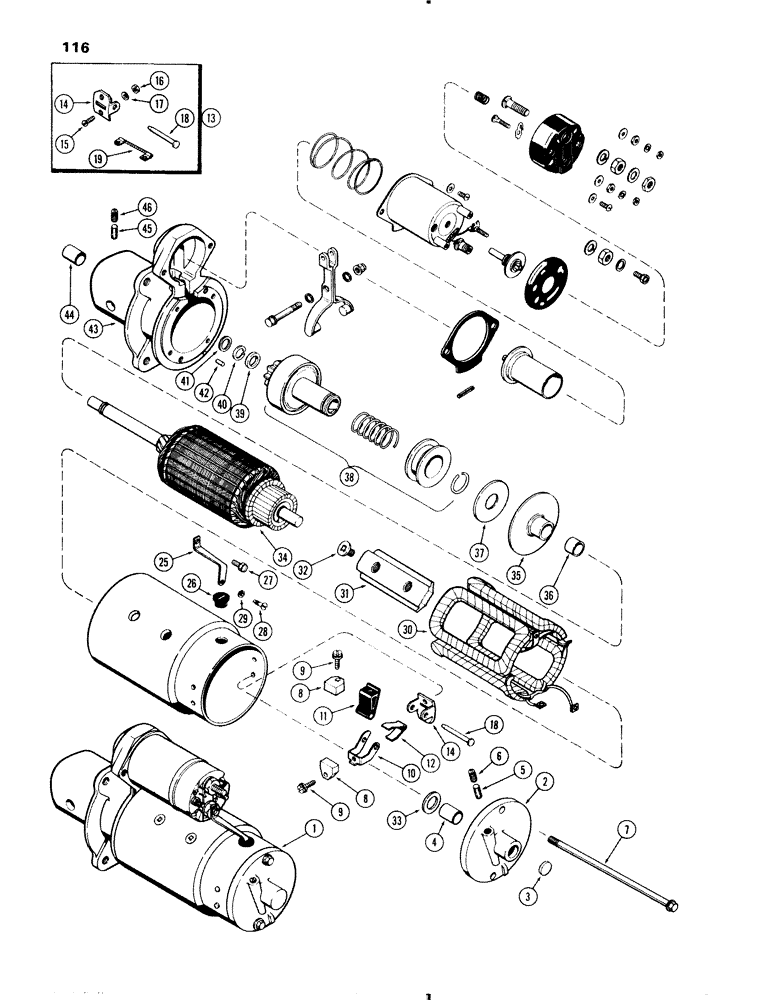

Запчасти Case IH 470 (116) - D45731 STARTING MOTOR, 470-570 (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

D45731

X

STARTER ASSY. - (Delco #1107598) (includes ref. 2 - 46)

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end (includes ref. 3 - 6)

1шт.

3

R15021

PLUG

PLUG - expansion

1шт.

4

R15020

BUSHING

BUSHING - armature shaft

1шт.

5

A41979

WICK

WICK - oil

1шт.

6

221-1041

PLUG

PLUG - 1/8" P.T. slotted headless

1шт.

7

A25552

BOLT

BOLT - thru

2шт.

8

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

9

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (includes lockwasher)

4шт.

10

A40217

HOLDER

HOLDER - grounded, brush

2шт.

11

R15027

HOLDER

HOLDER - insulated, brush

2шт.

12

A25359

SPRING

SPRING - brush pressure

2шт.

13

A25379

KIT

SUPPORT KIT - brush holder (includes ref. 14 - 19)

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT - (Order A25379)

1шт.

15

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - #10-24 x 1/2" rd. hd.

2шт.

16

R15032

X

NUT - support screw (#10-24 hex)

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

18

A41983

PIN

PIN - brush holder

1шт.

19

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

25

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: field-solenoid

1шт.

26

A41980

GROMMET

GROMMET - connector

1шт.

27

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

28

172-221

SCREW - lead to conn., #10-32 x 7/16" rd.hd.

1шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

30

A25548

COIL

COIL ASSY. - field

1шт.

31

A25391

SHOE

SHOE - pole

4шт.

32

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - shoe pole, 3/8 x 5/8" N.F. flat hd.

8шт.

33

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, comm. end

1шт.

34

A25547

ARMATURE

ARMATURE

1шт.

35

A40215

PLATE ASSY.

PLATE ASSY. - center bearing (includes ref. 36)

1шт.

36

A42125

BUSHING

BUSHING - center

1шт.

37

R15043

WASHER

WASHER - thrust, drive

1шт.

38

A41871

DRIVE

DRIVE ASSY.

1шт.

39

R15049

COLLAR

COLLAR - stop, drive assy.

1шт.

40

R15048

RING

RING - snap, collar

1шт.

41

A25385

WASHER

WASHER - thrust, drive assy.

1шт.

42

R15041

SPARE PART PIN - locating, drive housing

1шт.

43

A40226

FRAME

HOUSING ASSY. - drive (includes ref. 44 - 46)

1шт.

44

A25387

BEARING

BUSHING - armature shaft

1шт.

45

R15023

WICK

WICK - oil

1шт.

46

221-1041

PLUG

PLUG - 1/8" P.T. slotted headless

1шт.
