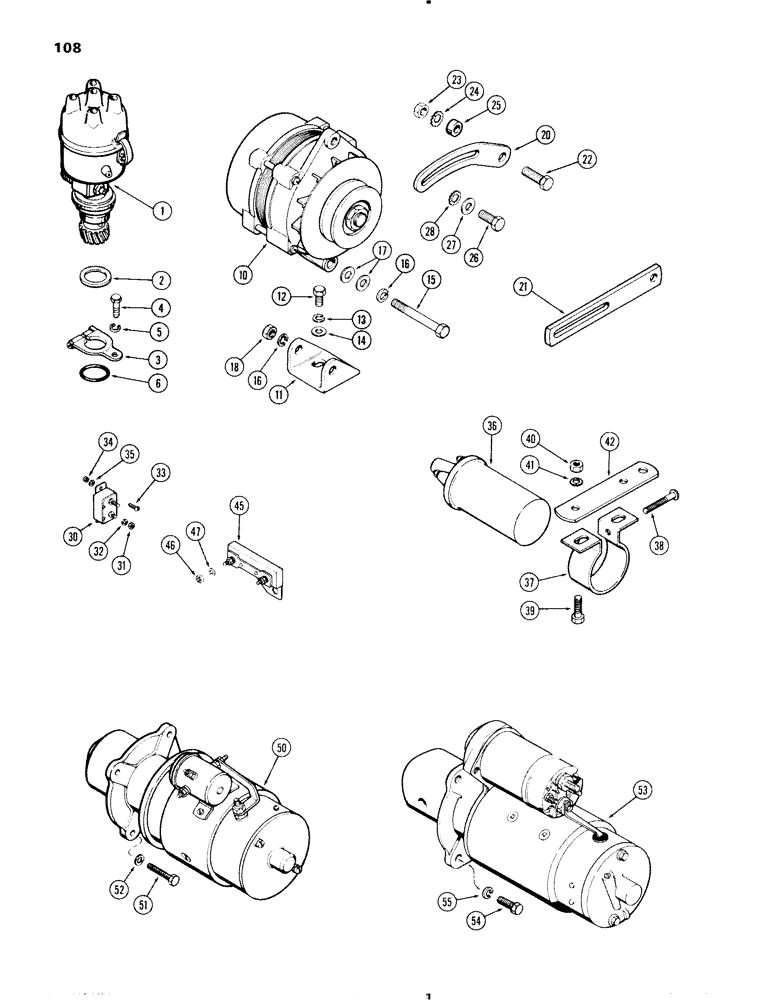

Запчасти Case IH 470 (108) - ELECTRICAL EQUIPMENT AND HARDWARE (04) - ELECTRICAL SYSTEMS

1

A18461

DISTRIBUTOR

SPARE PART DISTRIBUTOR - (Eltra #IBT-4403B)

1шт.

2

A30080

THRUST WASHER

WASHER - thrust, Serial Range: dist.-block

1шт.

3

A29989

ARM

ARM ASSY. - advance

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

5

193-173

WASHER - lock, 1/4" int.-ext. Shakeproof

1шт.

6

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O"RING - dist. to block (1-1/16 x 1-5/16 x 1/8")

1шт.

10

A42776

ALTERNATOR

ALTERNATOR - (Prestolite #ALK-6314S)

1шт.

11

A38492

BRACKET

BRACKET - alternator mounting

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

14

195-21

WASHER,5/16"

WASHER, (11/32 x 11/16 x 5/64" 5/16"

2шт.

15

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, , Alt. to brkt. Hex, 3/8"-16 x 3", G5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

195-25

WASHER,3/8"

WASHER, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

A37017

STRAP

STRAP - belt adjusting (diesel eng.)

1шт.

21

A59167

STRAP

STRAP - belt adjusting (spark ignition eng.)

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, , Strap to cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

24

193-72

LOCK WASHER

WASHER - lock, 3/8" int.-ext. Shakeproof

1шт.

25

G11271

SPACER

SPACER - strap (diesel eng.)

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd, Strap to alt.

1шт.

27

195-103

WASHER,5/16"

WASHER - plain, 3/8 x 7/8 x 3/32"

1шт.

28

192-71

WASHER - lock, 5/16" int.-ext. Shakeproof

1шт.

30

A22877

BREAKER,40A

BREAKER - circuit (Cole-Hersee #30055-40)

1шт.

31

129-37

NUT,#10-32

NUT, , Terminal #10-32

2шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

33

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - mounting, #8-32 x 3/8" rd. hd.

2шт.

34

129-16

NUT,#8-32

NUT, #8-32

2шт.

35

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

36

G44817

COIL

COIL - ignition (Prestolite #200576)

1шт.

37

G46106

BRACKET

BRACKET ASSY. - coil (includes ref. 38)

1шт.

38

187-540

SCREW - self-tapping, #10 x 1-1/2" flat hd.

1шт.

39

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

41

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

42

G11705

BRACKET

STRAP - mounting, Serial Range: coil-engine

1шт.

45

A24504

RESISTOR

RESISTER ASSY. - ballast (Prestolite #201020) (includes ref. 46 & 47)

1шт.

46

129-16

NUT,#8-32

NUT, #8-32

2шт.

47

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

50

A36584

STARTING MOTOR

STARTER ASSY. - spark ignition eng. (Eltra #NDU-7104A)

1шт.

50

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

50

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

51

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

53

D45731

X

STARTER ASSY. - diesel eng. (Delco #1107598)

1шт.

54

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

55

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
