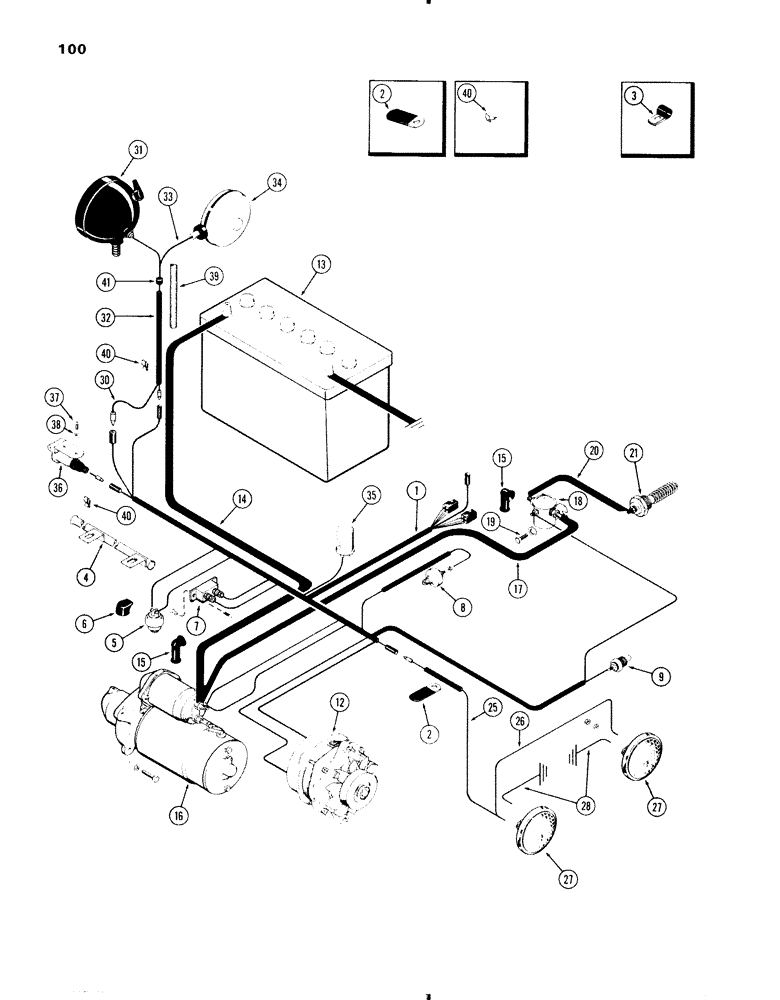

Запчасти Case IH 470 (100) - ELECTRICAL EQUIPMENT AND WIRING, 470 (188) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38835

HARNESS

ASSY. - main wire (engine and lights)

1шт.

2

A37179

CLIP

- harness (13/32" hole bend as req.)

5шт.

3

A27042

CLIP - harness to cover (17/32" hole)

1шт.

4

A38826

CONDUIT

- wire harness

1шт.

5

A20990

SWITCH

- safety, neutral start

1шт.

6

A61028

BOOT

- safety switch

1шт.

7

A22877

BREAKER,40A

- circuit

1шт.

8

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

9

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

12

A42776

ALTERNATOR

- (See Figure 108 & 112)

1шт.

13

A38411

DRY BATTERY

- (See Figure 120)

1шт.

14

A38806

CABLE - battery to starter solenoid (36")

1шт.

15

A21753

CAP

NIPPLE -, Serial Range: cable-solenoid

2шт.

16

D45731

X

STARTER ASSY. - (See Figure 108 & 116)

1шт.

17

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid (7")

1шт.

18

A57069

SOLENOID

- manifold heater

1шт.

19

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

20

A21483

CABLE

- solenoid to heater (23-1/2")

1шт.

21

A37775

HEATER

- intake manifold (See Figure 64)

1шт.

25

A11943

WIRE - harness to head lamp (black 21")

1шт.

26

A11764

WIRE - jumper, head lamp (black 16")

1шт.

27

A24572

LAMP

KIT - head (See Figure 122)

2шт.

28

A33439

WIRE - ground, head lamp (black 12")

2шт.

30

A38833

WIRE - harness to tail & flood lamp (black 32")

1шт.

31

A20965

LAMP BASE

LAMP - tail & flood, combination (See Figure 122)

1шт.

32

A11769

LOOM - rear lamp wires (24")

1шт.

33

A38834

WIRE - harness to flasher lamp (dark green 33")

1шт.

34

A34853

LAMP

- flasher (See Figure 126)

1шт.

35

A34867

FLASHER UNIT

FLASHER - warning lamp (See Figure 126)

1шт.

36

A8170

SOCKET

- electric outlet, auxiliary

1шт.

37

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

38

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex (includes lockwasher)

2шт.

39

A37940

LOOM

- flasher lamp wire (5-1/2")

1шт.

40

G46047

CLIP -, Serial Range: wire-fender

3шт.

41

A27338

GROMMET

- rubber, wire through fender

1шт.
