Запчасти Case IH 470 (098) - ELECTRICAL EQUIPMENT AND WIRING, 470 (148B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

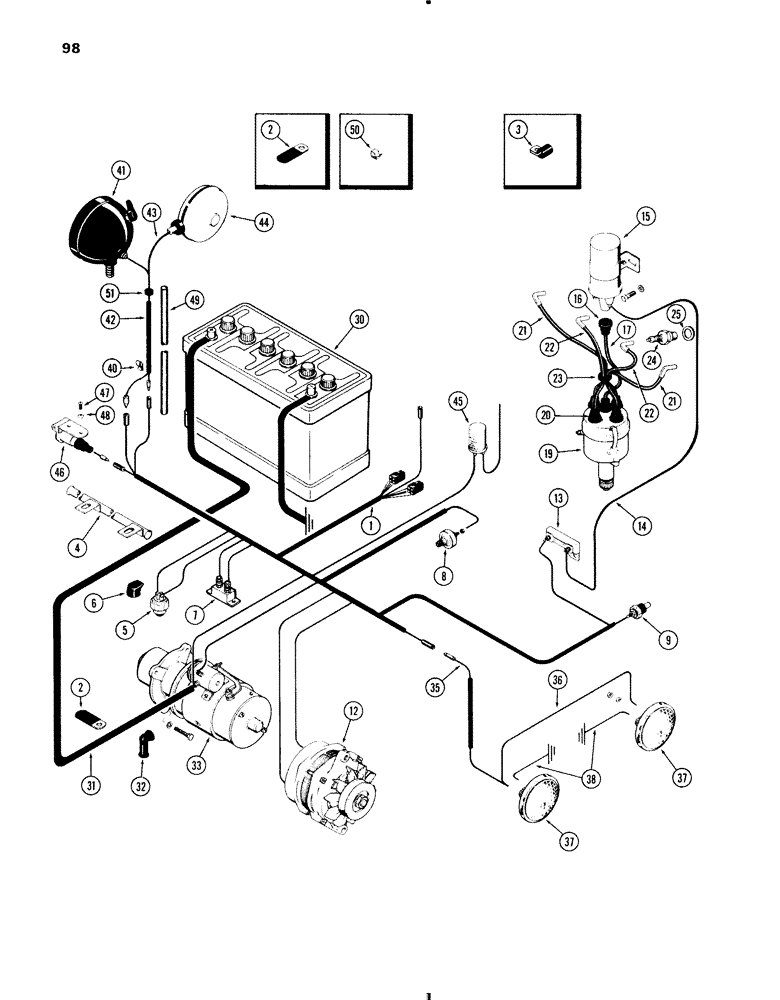

Схема запчастей Case IH 470 - (098) - ELECTRICAL EQUIPMENT AND WIRING, 470 (148B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS
36
47
40
24
42
33
50
20
6
9
35
51
7
8
37
16
41
22
19
31
17
2
22
43
37
5
38
44
23
46
48
3
1
49
32
14
4
15
21
45
12
25
13
21
30
2

Артикул

Название

Примечание

Количество

1

A38835

HARNESS

HARNESS ASSY. - main wire (engine and lights)

1шт.

1

A37179

CLIP

CLIP - harness (13/32" hole bend as req'd.)

6шт.

3

A27042

SPARE PART CLIP - harness to cover (17/32" hole)

1шт.

4

A38826

CONDUIT

CONDUIT - wire harness (on trans. case)

1шт.

5

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

6

A61028

BOOT

BOOT - safety switch

1шт.

7

A22877

BREAKER,40A

BREAKER - circuit (See Figure 108)

1шт.

8

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

9

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

12

A42776

ALTERNATOR

ALTERNATOR - (See Figures 108 & 112)

1шт.

13

A24504

RESISTOR

RESISTER - ballast (See Figure 108)

1шт.

14

A38832

ELECTRICAL WIRE

WIRE WIRE - resister to coil (white 7")

1шт.

15

A40778

COIL

COIL - ignition (See Figure 108)

1шт.

16

G46803

BOOT

NIPPLE - distributor, Serial Range: wire-coil

1шт.

17

A30038

CABLE

- coil to distributor (12")

1шт.

19

A18461

DISTRIBUTOR

SPARE PART DISTRIBUTOR (See Figures 108 & 110)

1шт.

20

A29338

COVER

NIPPLE - wires to distributor cap

5шт.

21

A29994

CABLE

WIRE - #1 & #4 spark plug (10-1/2")

2шт.

22

A30018

CABLE

WIRE - #2 & #3 spark plug (8-1/2")

2шт.

23

A30109

WASHER

WASHER - harness, distributor wires

1шт.

24

G44840

SPARK PLUG

PLUG - spark (includes ref. 25)

4шт.

25

G46839

GASKET

GASKET - seat

1шт.

30

F22631

DRY BATTERY

BATTERY - (See Figure 118)

1шт.

31

A27987

CABLE

CABLE - battery to solenoid (44")

1шт.

32

A21753

CAP

NIPPLE -, Serial Range: cable-solenoid

1шт.

33

A36584

STARTING MOTOR

STARTER ASSY. - (See Figure 108 & 114)

1шт.

33

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

33

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

35

A11943

SPARE PART WIRE - harness to head lamp (black 21")

1шт.

36

A11764

SPARE PART WIRE - jumper, head lamp (black 16")

1шт.

37

A24572

LAMP

LAMP KIT - head (See Figure 122)

2шт.

38

A33439

SPARE PART WIRE - ground, head lamp (black 12")

2шт.

40

A38833

SPARE PART WIRE - harness to tail & flood lamp (black 32")

1шт.

41

A20965

LAMP BASE

LAMP - tail & flood, combination (See Figure 122)

1шт.

42

A11769

LOOM - rear lamp wires (24")

1шт.

43

A38834

SPARE PART WIRE - harness to flasher lamp (dark green 33")

1шт.

44

A34853

LAMP

LAMP - flasher (See Figure 126)

1шт.

45

A34867

FLASHER UNIT

FLASHER - warning lamp (See Figure 126)

1шт.

46

A8170

SOCKET

SOCKET - electric outlet, auxiliary

1шт.

47

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

SCREW - #10-32 x 1/2" rd. hd.

2шт.

48

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10-32 hex. (includes lockwasher)

1шт.

49

A37940

LOOM

LOOM - flasher lamp wire (5-1/2")

1шт.

50

G46047

SPARE PART CLIP -, Serial Range: wire-fender

3шт.

51

A27338

GROMMET

GROMMET - rubber, wire through fender

1шт.

Выбрано товаров: 44
