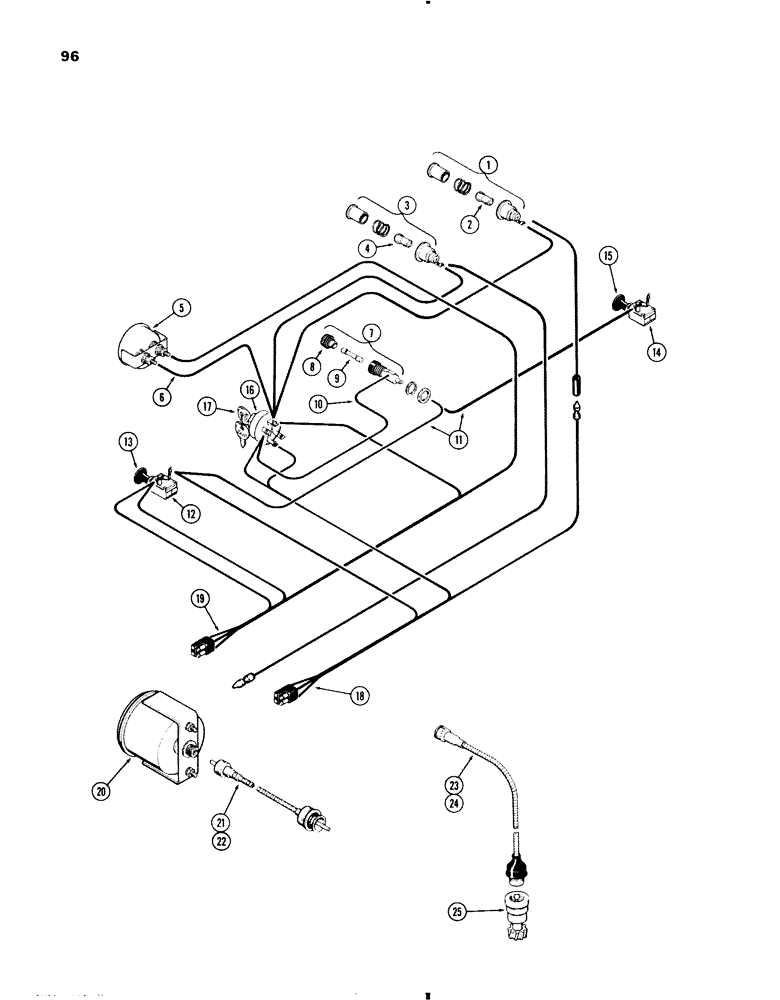

Запчасти Case IH 470 (096) - INSTRUMENTS AND WIRING, 470-SERIES (04) - ELECTRICAL SYSTEMS

1

A38816

LAMP

ASSY. - warning, alternator (includes ref. 2)

1шт.

2

F21950

BULB - replacement (#431 red)

1шт.

3

A24084

LAMP

ASSY. - warning, engine oil pressure (includes ref. 4)

1шт.

4

A24354

BULB

- replacement (#57 red)

1шт.

5

A24080

GAUGE

ASSY. - engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to st. switch (green 15")

1шт.

7

A22874

HOLDER

ASSY. - fuse (includes ref. 8)

1шт.

8

A10958

CAP

- fuse holder

1шт.

9

223-20

FUSE,20 Amp, Type SFE

- (2 amp.)

1шт.

10

A22875

ELECTRICAL WIRE

WIRE - fuse holder to st. switch (red 4")

1шт.

11

A38180

COMPRESSION SPRING

WIRE ASSY. - fuse to light switch & flasher switch

1шт.

12

G13142

IGNITION SWITCH

SWITCH - head light (includes ref. 13)

1шт.

13

G13141

KNOB

- light switch

1шт.

14

A37936

SWITCH

- flasher lamp (2 position) (includes Ref 15)

1шт.

15

A37937

KNOB

- flasher switch

1шт.

16

A24510

SWITCH

- starting (diesel eng.) (includes ref. 17) w/keys

1шт.

16

A24511

SWITCH

- starting spark ignition, w/key (Gas eng) (includes ref. 17)

1шт.

17

A24509

KEY

- ignition switch (Set of 2)

1шт.

18

A24076

PLUG

HARNESS ASSY. - wire, inst. panel (w/red plug)

1шт.

19

A21613

HARNESS

ASSY. - wire, inst. panel (w/black plug)

1шт.

20

A37767

TACHOMETER

- 4 speed trans. (includes hourmeter)

1шт.

20

A37768

TACHOMETER

- 8 speed trans. (includes hourmeter)

1шт.

21

G45230

HOUSING

CABLE ASSY. - tach. drive 45" (spark ignition eng.) (includes ref. 22)

1шт.

22

A24523

KIT

CABLE - replacement kit

1шт.

23

A38817

CABLE

ASSY. - tach. drive, 51" (diesel eng.) (includes ref. 24)

1шт.

24

A24523

KIT

CABLE - replacement kit

1шт.

25

A38942

DRIVE ASSY.

- tach. cable to camshaft (diesel eng.)

1шт.
