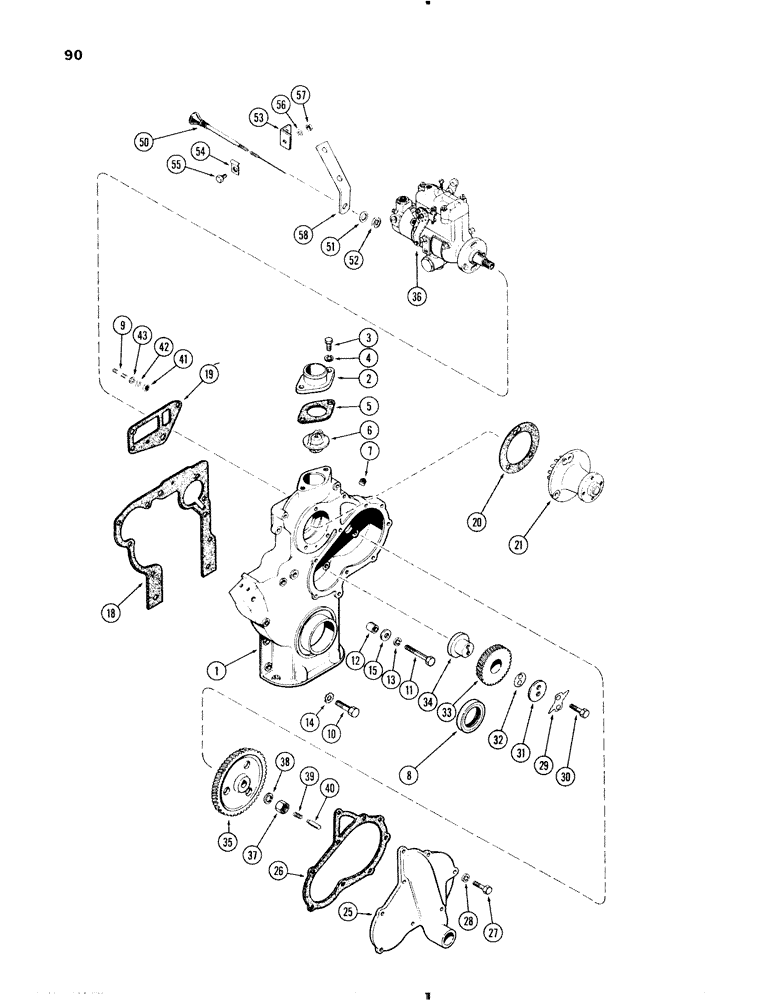

Запчасти Case IH 470 (090) - FUEL INJECTION PUMP AND DRIVE, 470-570 (188) DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A38945
SPARE PART COVER ASSY. - injection pump drive (includes ref. 2 - 9)
1шт.
2
G2144
FITTING
CONNECTION - water outlet
1шт.
3
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
4
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
2шт.
5
G46907
GASKET
GASKET - water outlet
1шт.
6
A57641
THERMOSTAT
THERMOSTAT - (180 deg.)
1шт.
8
A36609
OIL SEAL
SEAL - oil, crankshaft front
1шт.
9
G11204
STUD
STUD - pump (3/8" N.C. x 1-7/16")
3шт.
10
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd
2шт.
10
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
10
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
BOLT - 3/8 x 1-1/2" N.C. hex
3шт.
11
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT - 3/8" x 2" N.C. hex.
1шт.
11
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
BOLT - 3/8 x 2-3/4" N.C. hex
3шт.
11
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
BOLT - 3/8 x 3" N.C. hex
1шт.
12
A29442
RING
RING - dowel, Serial Range: cover-block
2шт.
13
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
12шт.
14
193-10
LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN
WASHER, LOCK, (for 3/8 x 7/8" bolt) Ext Tooth, 3/8"
2шт.
15
195-25
WASHER,3/8"
WASHER, 3/8"
5шт.
18
A38228
GASKET
GASKET -, Serial Range: cover-block
1шт.
19
A38084
GASKET,1.27mm Thk
GASKET -, Serial Range: cover-head
1шт.
20
A38083
GASKET
GASKET - water pump
1шт.
21
A37758
PUMP
PUMP ASSY. - water (Order from Figure 60 and 62)
1шт.
21
A146584GV
WATER PUMP
Value, Water Pump Assy.
1шт.
21
A146584R
REMAN-WATER PUMP
Reman For New P/N A37758, Pump Assy
1шт.
21
A146584C
CORE-WATER PUMP
Return Part Number
1шт.
21
A48363
REMAN-WATER PUMP
Remanufactured WATER PUMP
1шт.
21
A48323
CORE-WATER PUMP
Return Number, WATER PUMP
1шт.
25
G2077
COVER ASSY
COVER - drive gear
1шт.
26
G46859
GASKET
GASKET - gear cover
1шт.
27
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT - 3/8" x 2" N.C. hex.
1шт.
27
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1", G5, Full Thd
8шт.
28
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
9шт.
29
G11746
PLATE
PLATE - lock, idler gear
1шт.
30
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT - 3/8" x 2" N.C. hex.
2шт.
31
G11372
STRIP
PLATE - thrust, idler gear
1шт.
32
G11728
SHIM,.005" Thk
SHIM, , Idler gear .005" Thk
1шт.
32
G11729
SHIM,.006" Thk
SHIM, , Idler gear .006" Thk
1шт.
32
G11730
SHIM,.007" Thk
SHIM, , Idler gear .007" Thk
1шт.
32
G11731
SHIM,.009" Thk
SHIM, , Idler gear .009" Thk
1шт.
33
G11852
GEAR
GEAR ASSY. - idler (includes bushing)
1шт.
34
G11726
HUB
HUB - idler gear
1шт.
35
G2076
GEAR
GEAR - drive, injection pump
1шт.
36
G37030
SPARE PART PUMP ASSY. - injection (470) (Repairs Page 95) (includes ref. 37 - 40)
1шт.
36
A35773
PUMP, FUEL INJECTION
PUMP, INJECTION PUMP ASSY. - injection (570) (Repairs Page 95) (includes ref. 37 - 40)
1шт.
37
25-159
JAM NUT,Jam, 9/16"-18, G5
NUT - gear to pump, 9/16" N.F. hex, jam
1шт.
38
192-24
LOCK WASHER,9/16"
WASHER, LOCK, 9/16"
1шт.
39
G48502
SPRING
SPRING - thrust plunger
1шт.
40
G47128
PLUNGER
PLUNGER - thrust, pump shaft
1шт.
41
25-106
NUT,3/8"-16, G5
NUT - pump mounting, 3/8" N.C. hex
3шт.
42
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
3шт.
43
A30043
WASHER
WASHER - pump stud (13/32 x 7/8 x 1/8" trimmed)
3шт.
50
A38454
CONTROL LEVER
WIRE CONTROL - fuel shut-off, inj. pump
1шт.
51
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
1шт.
52
86585245
SPECIAL NUT,JAM, 5/8" - 18
NUT - jam, 3/8" N.F. hex (control to brkt.)
1шт.
53
A38448
BRACKET - front support, shut-off control
1шт.
54
A26673
CLIP
CLIP - control cable
1шт.
55
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
BOLT, , Clip Hex, 1/4"-20 x 1/2", G5, Full Thd
1шт.
56
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
57
25-104
NUT,1/4"-20, G5
NUT, 1/4"-20, G5
1шт.
58
A38450
SPARE PART BRACKET - rear support, shut-off control
1шт.
Выбрано товаров: 61
