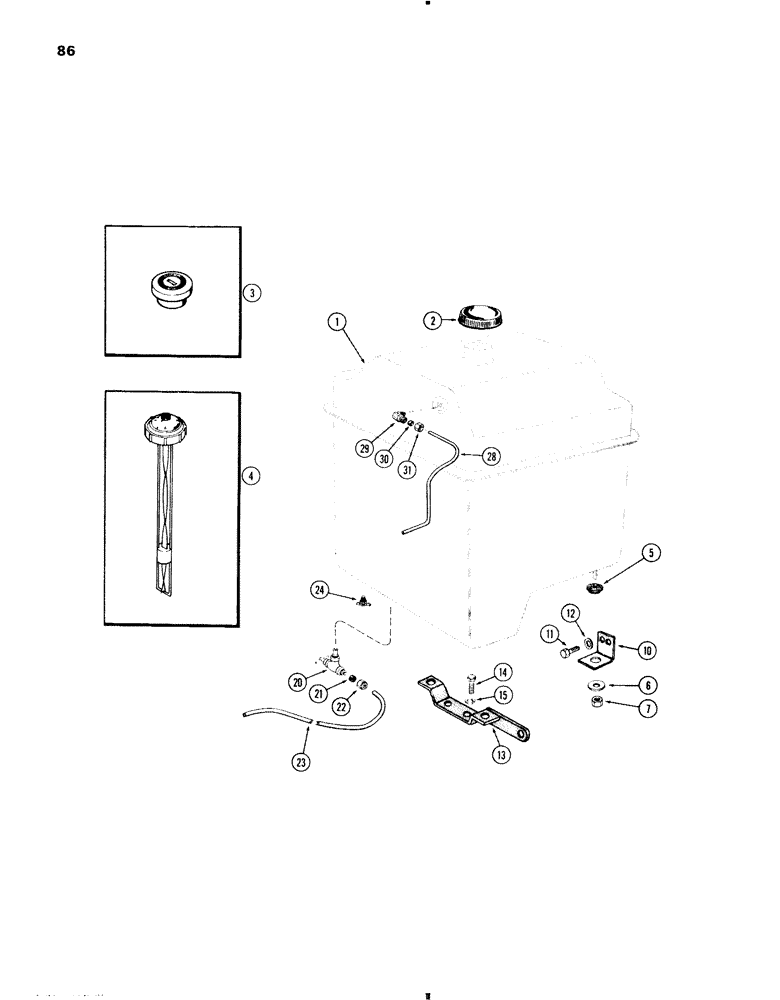

Запчасти Case IH 470 (086) - FUEL TANK, 470 (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

A35712

TANK - fuel

1шт.

2

A32119

CAP

- fuel (See ref. 3 and 4)

1шт.

3

A32120

CAP

- lock type, fuel tank (includes keys)

1шт.

4

A38947

GAUGE

CAPS - fuel tank (includes fuel level gauge)

1шт.

5

A7336

CUSHION

S - rubber, tank stud

3шт.

6

B18261

WASHER

- tank stud (13/32 x 1-3/8 x 1/16")

3шт.

7

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex

3шт.

10

G10691

SUPPORT - rear, fuel tank

1шт.

11

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

12

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

13

G30407

SUPPORT - front, fuel tank

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

195-21

WASHER,5/16"

(11/32 x 11/16 x 1/16") 5/16"

2шт.

20

G13311

VALVE

- needle, fuel line (includes ref. 21 & 22)

1шт.

21

222-104

SLEEVE,3/8" Tube

- 1/4" tube

1шт.

22

222-114

NUT,5/8"-24

NUT - 1/4" tube

1шт.

23

A35715

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

24

217-102

PLUG, DRAIN

VALVE - drain, fuel tank (1/8" P.T.)

1шт.

28

A37898

LINE - leak-off return

1шт.

29

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- tube to tank, 1/4" tube x 1/8" P.T. (includes ref. 30 & 31)

1шт.

30

222-104

SLEEVE,3/8" Tube

- 1/4" tube

1шт.

31

222-114

NUT,5/8"-24

NUT - 1/4" tube

1шт.
