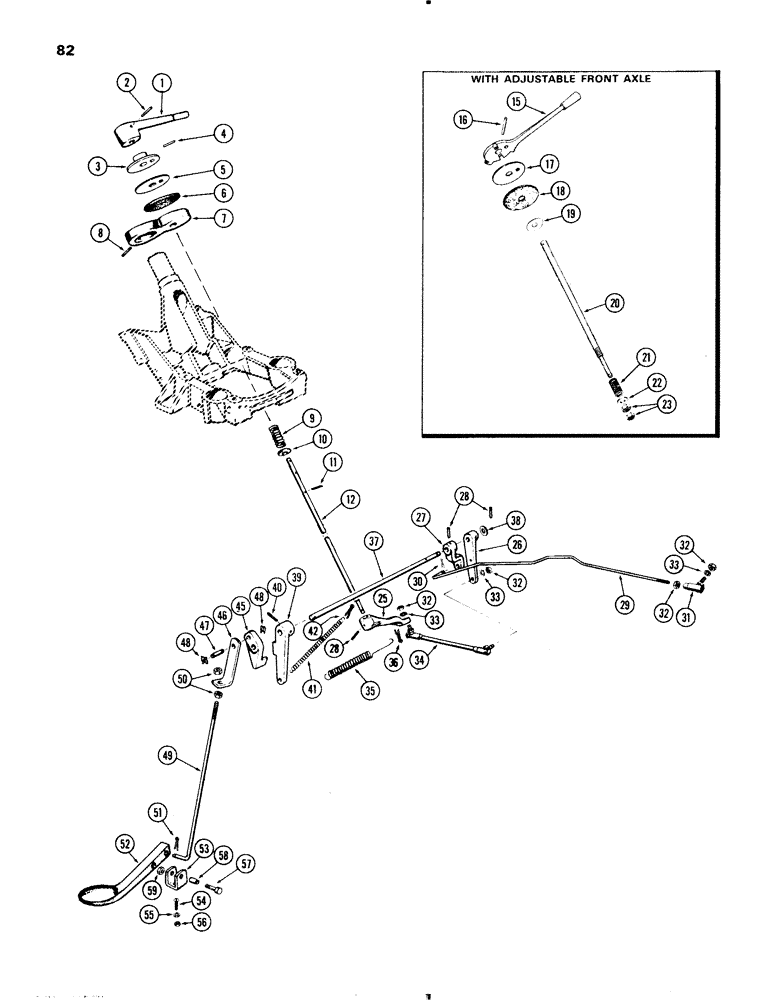

Запчасти Case IH 470 (082) - THROTTLE LINKAGE, 470 (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

G1085

LEVER

- hand throttle (w/dual front wheel)

1шт.

2

138-82

LOCK PIN,5/32" x 1 5/8", Slotted

PIN, 5/32" x 1-5/8", slotted

1шт.

3

A38147

X

PLATE - friction (w/dual front wheel)

1шт.

4

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

5

A38016

DISC - friction, steel (w/dual front wheel)

1шт.

6

G10786

DISC

- friction, cork (w/dual front wheel)

1шт.

7

G1077

SUPPORT - disc & lever (w/dual front wheel)

1шт.

8

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

9

G46214

SPRING

- tension (w/dual front wheel)

1шт.

10

195-29

WASHER,7/16"

- plain, 15/32 x 59/64 x 5/64"

1шт.

11

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

12

A36737

SHAFT - hand lever (w/dual front wheel)

1шт.

15

A38018

LEVER

- hand throttle (w/dual throttle (w/adj. front axle)

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

17

A57029

DISC

- friction, steel (w/adj. front axle)

1шт.

18

A11969

GASKET

DISC - friction, asbestos (w/adj. front axle)

1шт.

19

A32838

WASHER

- spacer (17/32 x 1-1/4 x 5/64")

1шт.

20

A37139

SHAFT

- hand lever (w/adj. front axle)

1шт.

21

A34113

SPRING

- tension (w/adj. front axle)

1шт.

22

195-2051

WASHER,17/32" x 13/16" x .060"

- plain, 17/32 x 13/16 x 3/32"

1шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.C. hex (w/adj. front axle)

1шт.

25

A36693

LEVER

- lower, hand lever shaft

1шт.

26

G1080

LEVER - actuating, cross shaft

1шт.

27

A35716

LEVER - pump control rod

1шт.

28

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

3шт.

29

A35717

ROD - cross shaft, Serial Range: lever-pump

1шт.

30

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

31

A10329

BALL JOINT,1/4" - 28 x 1"

-, Serial Range: rod-pump

1шт.

32

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

4шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

34

G45128

LINK

- lower throttle lever

1шт.

35

A30082

SPRING

- return, hand lever

1шт.

36

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

37

G15568

SHAFT - cross, throttle control

1шт.

38

195-29

WASHER,7/16"

- plain, 15/32 x 59/64 x 5/64"

1шт.

39

G1082

LEVER

- R.H., cross shaft

1шт.

40

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

41

A29988

SPRING

- return

1шт.

42

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

45

G1314

LEVER - actuating, foot throttle

1шт.

46

G16898

LINK - connecting, Serial Range: rod-lever

1шт.

47

G49056

PIN - pivot, Serial Range: link-lever

1шт.

48

A27720

SNAP RING

RING - retaining, pivot pin

2шт.

49

G15693

ROD - foot pedal

1шт.

50

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

51

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

52

G15692

PEDAL

- foot throttle

1шт.

53

G15694

BRACKET

- pivot, foot pedal

1шт.

54

77-512

SCREW

- mach., 5/16 x 3/4" truss hd.

2шт.

55

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

56

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

57

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Pivot Hex, 5/16"-24 x 1 3/4", G5

1шт.

58

G49618

BUSHING

- pivot, foot pedal

1шт.

59

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.
