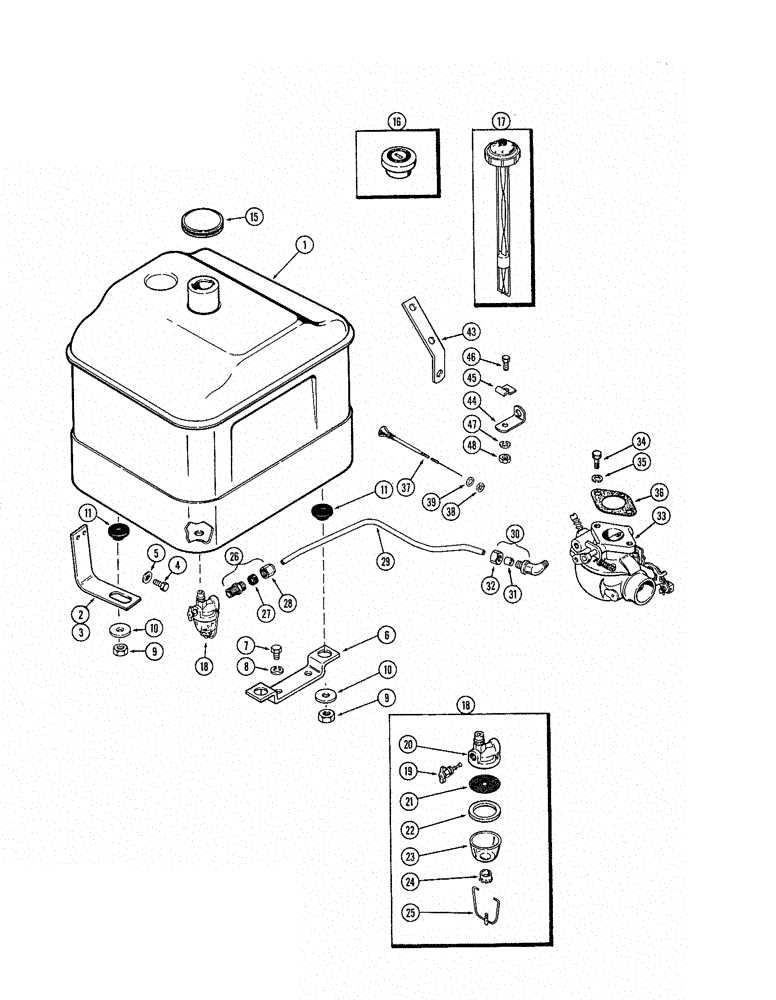

Запчасти Case IH 470 (030) - FUEL TANK, 470 (148B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G14471

FUEL TANK

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank filler (See ref. 3 & 4)

1шт.

3

A32120

CAP

- lock type, fuel tank (includes keys)

1шт.

4

A38947

GAUGE

CAP ASSY. - fuel tank (includes level gauge)

1шт.

5

G10691

SUPPORT - rear, fuel tank

1шт.

6

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

G17028

SUPPORT - front, fuel tank

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

195-21

WASHER,5/16"

(11/32 x 11/16 x 1/16") 5/16"

2шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, tank stud (3/8" N.C. Gripco)

3шт.

12

B18261

WASHER

- stud (13/32 x 1 3/8 x 1/16")

3шт.

13

A7336

CUSHION

- rubber, tank support

3шт.

18

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel (includes ref. 19 - 25)

1шт.

19

A11205

VALVE

1шт.

20

A11214

HEAD

1шт.

21

A11211

FILTER SCREEN

SCREEN

1шт.

22

A11208

GASKET

- bowl

1шт.

23

A11209

BOWL

- glass

1шт.

24

A11210

ADJUSTER

CUP ASSY. - (includes nut)

1шт.

25

A11212

BAIL

ASSY.

1шт.

26

222-604

FITTING,1/2"-24 x 1/8" NPT, Comp

CONNECTOR - tube to strainer, 5/16" O.D. x 1/8" P.T. (includes ref. 27 & 28)

1шт.

27

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

28

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

29

A37183

SPARE PART

LINE - fuel, Serial Range: strainer-carburetor

1шт.

30

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- line to carburetor, 5/16" O.D. x 1/8" P.T. (includes ref. 31 & 32)

1шт.

31

221-653

SLEEVE - 5/16" tube

1шт.

32

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

33

A38243

CARBURETOR

- (Repairs Page 33)

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

95-5

WASHER,3/8" x 7/8" x .083"

- lock, 5/16"

2шт.

36

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

37

A38458

CONTROL

ROD - choke control

1шт.

38

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" N.F. hex

1шт.

39

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

43

A38450

BRACKET - rear support, choke control

1шт.

44

A38448

BRACKET - front support, choke control

1шт.

45

A26673

CLIP

- retainer, choke control

1шт.

46

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clip Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

25-104

NUT,1/4"-20, G5

1шт.
