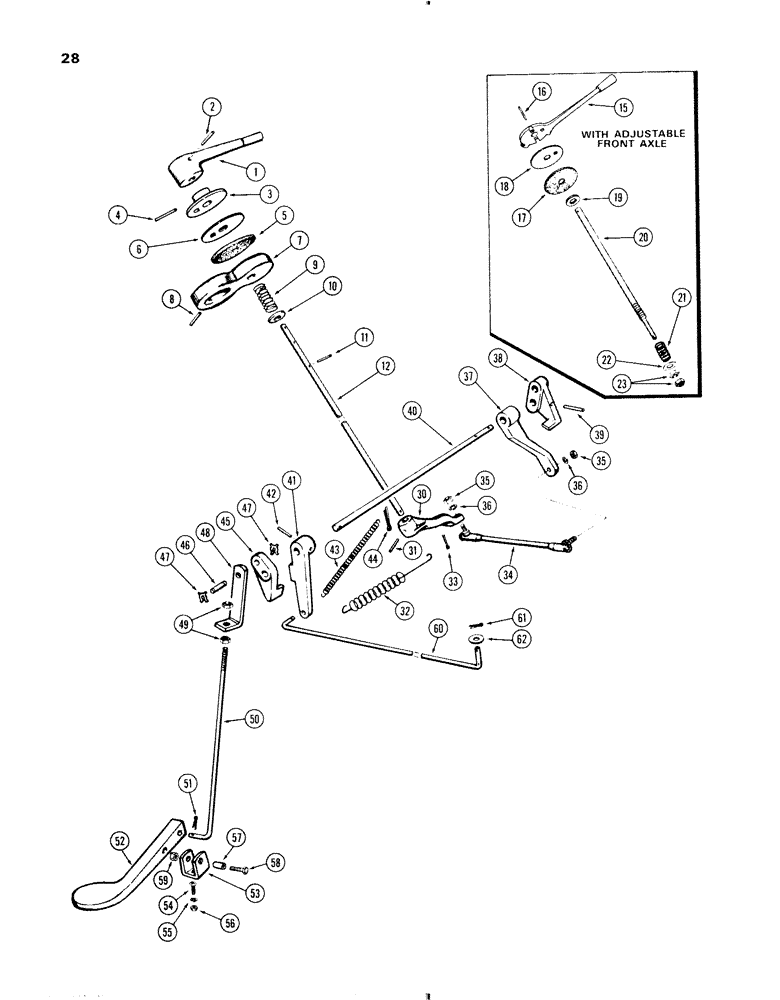

Запчасти Case IH 470 (028) - THROTTLE LINKAGE, 470 (148B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G1085

LEVER

- hand (w/dual frt. wheels)

1шт.

2

138-82

LOCK PIN,5/32" x 1 5/8", Slotted

PIN, 5/32" x 1-5/8", slotted, w/dual frt. wheels

1шт.

3

A38017

PLATE

- friction disc (w/dual frt. wheels)

1шт.

4

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , w/ dual front wheels 5/32" x 7/8", Slotted

1шт.

5

G10786

DISC

- cork friction (w/dual frt. wheels)

1шт.

6

A38016

DISC - metal friction (w/dual frt. wheels)

1шт.

7

G1077

SUPPORT - friction plate (w/dual frt. wheels)

1шт.

8

138130

PIN - roll, 1/4 x 3/4" (w/dual frt. wheels)

2шт.

9

G46214

SPRING

- tension (w/dual frt. wheels)

1шт.

10

195-29

WASHER,7/16"

- plain, 15/32 x 59/64 x 5/64 (w/dual frt. wheels)

1шт.

11

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , w/ dual front wheels 5/32" x 7/8", Slotted

1шт.

12

A36737

SHAFT - hand lever (w/dual wheels)

1шт.

15

A38018

LEVER

- hand (w/adj. frt. axle)

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , w/adj. frt. axle 5/32" x 1", Slotted

1шт.

17

A11969

GASKET

DISC - asbestos friction (w/adj. frt. axle)

1шт.

18

A57029

DISC

- steel friction (steel friction (w/adj. frt. axle)

1шт.

19

A32838

WASHER

- spacer (17/32 x 1-1/4 x 5/16) (w/adj. frt. axle)

1шт.

20

A37139

SHAFT

- hand lever (w/adj. frt. axle)

1шт.

21

A34113

SPRING

- tension (w/adj. frt. axle)

1шт.

22

195-2051

WASHER,17/32" x 13/16" x .060"

- plain, 13/16 x 17/32 x 5/64" (w/adj.frt. axle)

1шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex (w/adj. frt. axle)

2шт.

30

A36693

LEVER

- lower, hand throttle shaft

1шт.

31

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

32

A30082

SPRING

- return, hand lever

1шт.

33

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

34

G45128

LINK

- throttle lever

1шт.

35

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

G1313

LEVER - actuating, cross shaft

1шт.

38

G1315

LEVER - L.H., cross shaft

1шт.

39

13875

BRACKET

PIN - roll, 5/32 x 7/8"

1шт.

40

G16897

SHAFT - cross, throttle control

1шт.

41

G1082

LEVER

- governor control rod

1шт.

42

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

43

A29988

SPRING

- return, control lever

1шт.

44

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

45

G1314

LEVER - actuating, foot throttle

1шт.

46

G49056

PIN - pivot, foot throttle link

1шт.

47

A27720

SNAP RING

RING - retaining, pivot pin

2шт.

48

G16898

LINK - connecting, foot throttle rod

1шт.

49

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

50

G15693

ROD - foot throttle

1шт.

51

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

52

G15692

PEDAL

- foot throttle

1шт.

53

G15694

BRACKET

- pivot, foot pedal

1шт.

54

77-512

SCREW

- 5/16 x 3/4" truss hd.

2шт.

55

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

56

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

57

G49618

BUSHING

- pivot, foot pedal

1шт.

58

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

59

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

60

G11379

ROD - lever to governor control

1шт.

61

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2шт.

62

95-4

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

1шт.
