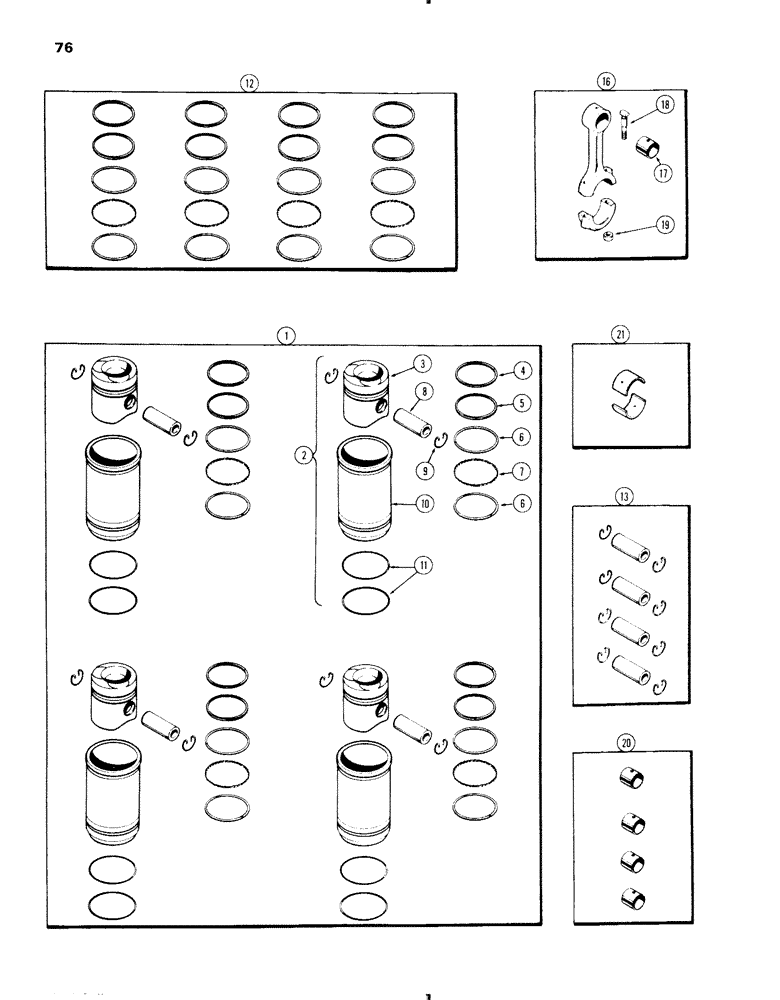

Запчасти Case IH 470 (076) - PISTON ASSEMBLY AND CONNECTING RODS, 470-570 (188) DIESEL ENGINE (02) - ENGINE

1

A42813

PISTON

& SLEEVE SET - (matched set of 4) (includes ref. 2 - 11)

12шт.

2

A42812

SLEEVE

PISTON & SLEEVE SET - (matched) (includes ref. 3 - 11)

4шт.

3

A38424

PISTON

1шт.

4

G4819

RING

- compression, top groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rail (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - retaining (See ref. 13)

2шт.

10

A39006

SLEEVE

- piston

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O"RING - sleeve packing (3-3/4 x 4-7/8 x 7/64")

2шт.

12

G37075

RING

SET - (re-ring 4 pistons)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 w/retaining rings)

1шт.

16

G11847

ROD

ASSY. - connecting (includes ref. 17, 18 & 19)

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - pin (Order ref. 20)

1шт.

18

G49064

STEP BOLT

BOLT - cap

2шт.

19

G49060

NUT

- cap bolt

2шт.

20

G11953

BUSHING

S - connecting rod (Set of 4)

1шт.

21

A36500

SEAL

LINERS - bearing, conn. rod (Set of 2 Std.)

4шт.

21

A36501

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .002" undersize)

4шт.

21

A36502

LINING

LINERS - bearing, conn. rod (Set of 2 .010" undersize)

4шт.

21

A36503

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .020" undersize)

4шт.

21

A36504

KIT

LINERS - bearing, conn. rod (Set of 2 .030" undersize)

4шт.
