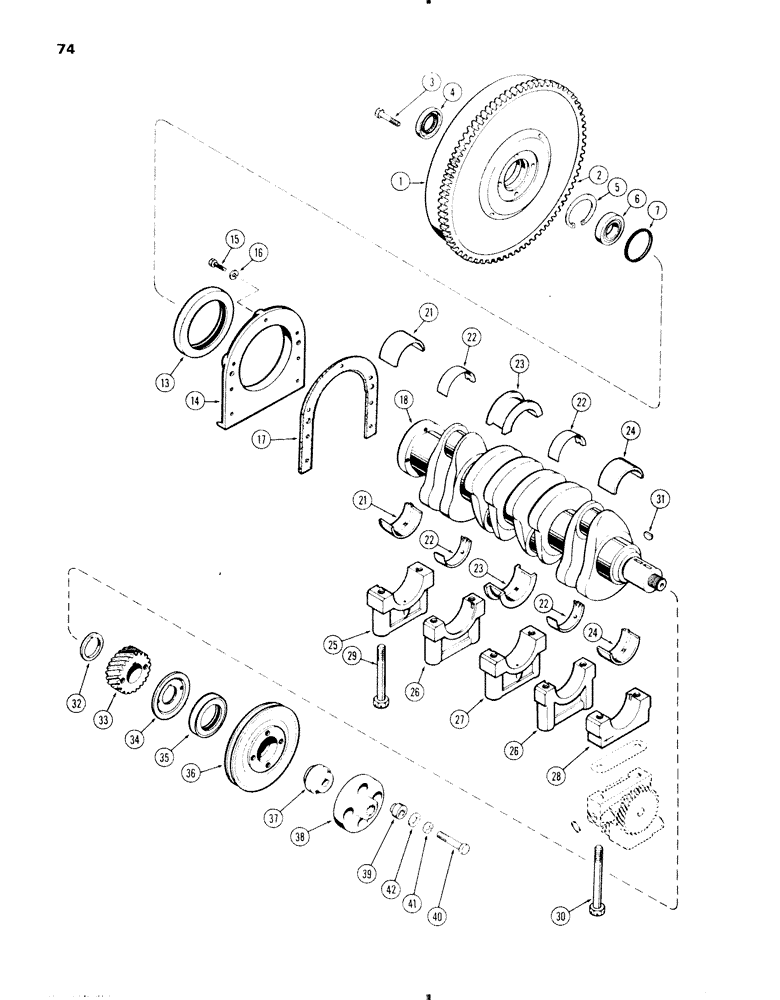

Запчасти Case IH 470 (074) - CRANKSHAFT AND FLYWHEEL, 470-570 (188) DIESEL ENGINE (02) - ENGINE

1

A37214

FYLWHEEL ASSY. (includes ref. 2)

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A37216

BOLT

- flywheel to crankshaft (7/16 x 1-1/2" N.F.)

4шт.

4

A37647

OIL SEAL

- oil, flywheel

1шт.

5

49482

SNAP RING,2.125", Int, #212

RING, snap, , flywheel brg. 2.125", Int, #212

1шт.

6

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - flywheel

1шт.

7

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal, flywheel

1шт.

13

A39027

OIL SEAL

- oil, crankshaft rear

1шт.

14

A38390

RETAINER

- oil seal, cranklshaft rear

1шт.

15

113-25

X

BOLT - 1/4 x 3/4" N.C. hex (Gr. 8)

4шт.

15

113-26

BOLT

- 1/4 x 1" N.C. hex (Gr. 8)

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

17

A38196

GASKET

- retainer, rear oil seal

1шт.

18

A37211

CRANKSHAFT

1шт.

21

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Set of 2 Std.)

1шт.

21

A36496

LINING

LINERS - rear bearing (Set of 2 .002" undersize)

1шт.

21

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Set of 2 .010" undersize)

1шт.

21

A36498

KIT

LINERS - rear bearing (Set of 2 .020" undersize)

1шт.

21

A36499

BEARING LINER

LINERS - rear bearing (Set of 2 .030" undersize)

1шт.

22

A36485

LINING

LINERS - intermediate (Set of 2 Std.)

2шт.

22

A36486

LINING

LINERS - intermediate (Set of 2 .002" undersize)

2шт.

22

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate bearing (Set of 2 .010" undersize)

2шт.

22

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate bearing (Set of 2 .020" undersize)

2шт.

22

A36489

LINING

LINERS - intermediate bearing (Set of 2 .030" undersize)

2шт.

23

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Set of 2 Std.)

1шт.

23

A36491

LINING

LINERS - center bearing (Set of 2 .002" undersize)

1шт.

23

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Set of 2 .010" undersize)

1шт.

23

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Set of 2 .020" undersize)

1шт.

23

A36494

LINING

LINERS - center bearing (Set of 2 .030" undersize)

1шт.

24

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Set of 2 Std.)

1шт.

24

A36481

LINING

LINERS - front bearing (Set of 2 .002" undersize)

1шт.

24

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Set of 2 .010" undersize)

1шт.

24

A36483

LINING

LINERS - front bearing (Set of 2 .020" undersize)

1шт.

24

A36484

LINING

LINERS - front bearing (Set of 2 .030" undersize)

1шт.

25

A38385

CAP

- rear bearing liner

1шт.

26

G2128

CAP

- intermediate bearing liner

2шт.

27

G2127

CAP

- center bearing liner

1шт.

28

G2126

CAP

- front bearing liner

1шт.

29

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex)

8шт.

30

113-445

BOLT

- frt. brg. cap & oil pump (1/2 x 5-1/8" N.C. hex)

2шт.

31

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft (1/4 x 1-1/16" Hi-Pro)

2шт.

32

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

33

A29263

GEAR

- crankshaft (24 T)

1шт.

34

A29259

SLINGER

- oil

1шт.

35

A36609

OIL SEAL

- oil, front

1шт.

36

G11342

X

PULLEY - drive, fan & alternator

1шт.

37

A35673

NUT

- pulley

1шт.

38

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible (includes ref. 39)

1шт.

39

G36905

BLOCK

BUSHING - rubber, flex

4шт.

40

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

41

92-7

LOCK WASHER,7/16"

4шт.

42

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (29/64 x 3/4 x 5/64")

4шт.
