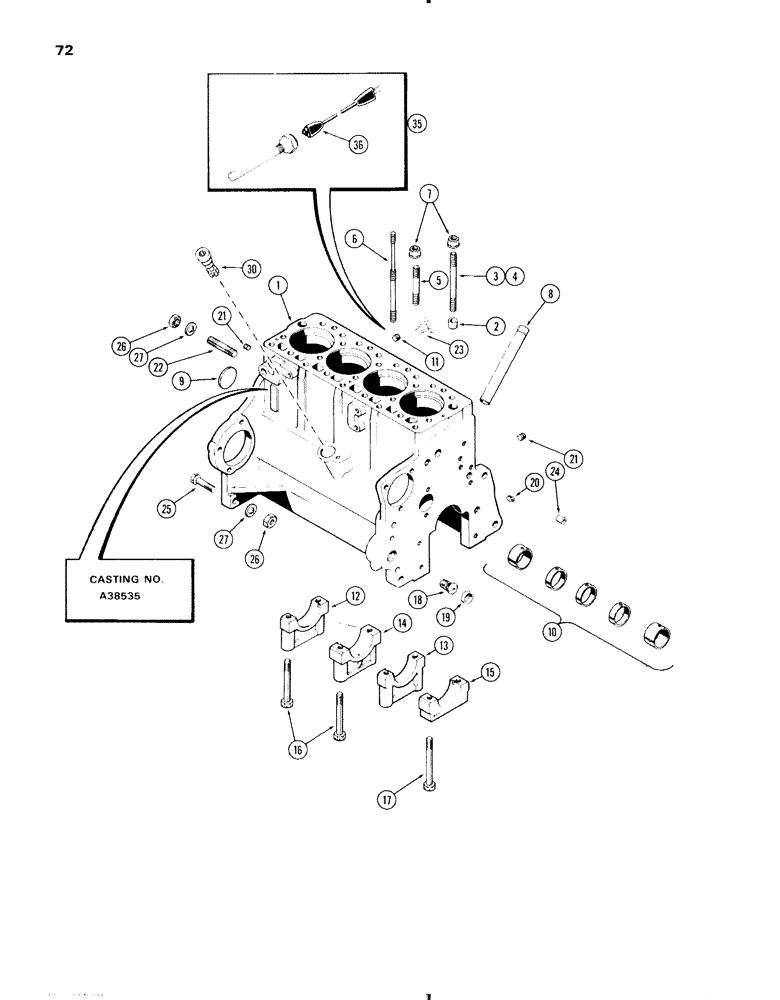

Запчасти Case IH 470 (072) - CYLINDER BLOCK ASSEMBLY, 470-570 (188) DIESEL ENGINE (02) - ENGINE

A42814

CYLINDER BLOCK

BLOCK ASSY. - short (includes stripped block, camshaft, crankshaft & brgs., rear oil seal, pistons, rings, sleeves, conn. rods & oil pump) (includes ref. 1 - 24)

1шт.

1

A41597

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A38535) (includes ref. 2 - 21)

1шт.

2

G49608

RING

- dowel, Serial Range: head-block

2шт.

3

A36902

STUD

- cylinder head (1/2" N.C. x 5-5/8")

11шт.

4

A36905

STUD

- cylinder head (1/2" N.C. x 6-1/8")

2шт.

5

A36904

STUD

- cylinder head (1/2" N.C. x 4")

4шт.

6

A36903

STUD

- head & cover

2шт.

7

A37030

FLANGE NUT

- head stud (1/2" N.C. flanged)

19шт.

8

A37149

TUBE

- oil filler & dipstick

1шт.

9

A39241

PLUG,Exp, 2.12" dia

- camshaft opening (2-1/8" expansion type)

1шт.

10

A42746

CAM

BUSHING SET - camshaft

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" socket hd.

1шт.

12

A38385

CAP

- rear main bearing

1шт.

13

G2128

CAP

- intermediate main bearing

2шт.

14

G2127

CAP

- center main bearing

1шт.

15

G2126

CAP

- front main bearing

1шт.

16

113-444

BOLT

- bearing cap, 1/2 x 4-1/2" N.C. hex

8шт.

17

113-445

BOLT

- frt. brg. cap & oil pump, 1/2 x 5-1/8" N.C. hex

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

41-1016

PLUG,Cup, 1"

CUP - adapter (1" cup type)

1шт.

20

G49070

PLUG

- drilled (1/4" P.T.)

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

2шт.

22

A29333

STUD

- block to torque tube (5/8" N.C. - N.F. x 3")

2шт.

23

A23656

COCK, DRAIN

VALVE - water drain (1/4" P.T.)

1шт.

24

A29442

RING

- dowel, timing gear cover

2шт.

25

A30099

X

BOLT - block to torque tube (5/8 x 3" N.F. hex)

2шт.

26

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

30

A38942

DRIVE ASSY.

- tachometer, Serial Range: cable-camshaft

1шт.

35

A40637

HEATER ASSY.

- (w/cord), engine block heater (includes ref. 36)

1шт.

36

A40477

ELECTRICAL WIRE

CORD - block heater (7 ft. long), engine

1шт.
