Запчасти Case IH 470 (064) - AIR CLEANER-MANIFOLD-MUFFLER, 470 (188) DIESEL ENGINE (02) - ENGINE

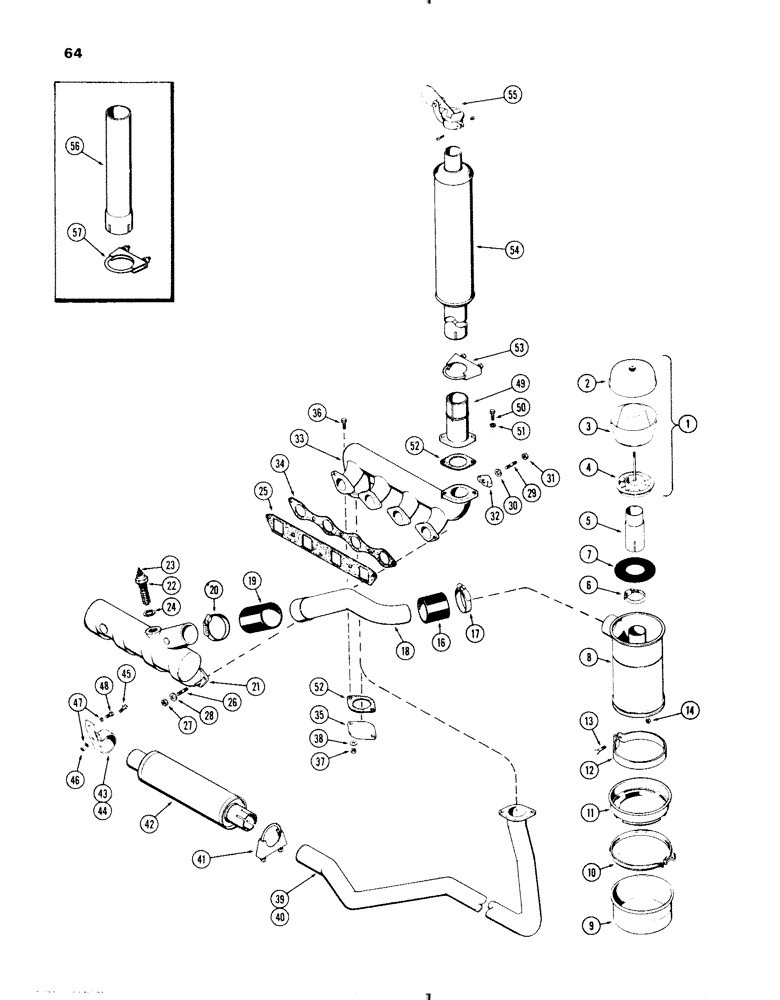

Схема запчастей Case IH 470 - (064) - AIR CLEANER-MANIFOLD-MUFFLER, 470 (188) DIESEL ENGINE (02) - ENGINE
29
43
48
33
27
8
10
5
1
50
19
24
2
51
17
14
56
39
47
44
40
28
20
42
25
9
54
4
31
18
23
55
16
12
3
46
6
41
38
21
52
53
22
13
57
52
30
34
36
35
49
7
26
37
11
32
45

Артикул

Название

Примечание

Количество

1

D20604

PRECLEANER

PRE-CLEANER ASSY. (includes ref. 2, 3 & 4)

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

- plastic

1шт.

4

NSS

NOT SOLD SEPARAT

BASE ASSY.

1шт.

5

A35651

EXTENSION

- pipe, air cleaner

1шт.

6

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- extension #28, 1.31/2.25 Type F Worm

1шт.

7

A36854

SHIELD

- extension opening

1шт.

8

G45238

AIR CLEANER ASSY. (includes ref. 9, 10 & 11)

1шт.

9

G46325

CUP

- oil, outer

1шт.

10

G45153

CLAMP

- oil cup

1шт.

11

G46324

CUP

- oil, inner

1шт.

12

G15614

BAND - air cleaner mounting

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- mach., 1/4 x 1-3/4" N.C. rd. hd.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

G46257

HOSE - tube to air cleaner (2" I.D. x 2-3/4" lg.) 2" ID x 2.375" OD

1шт.

17

217-260

CLAMP - hose, Serial Range: 1-13/16"-2-3/4"

2шт.

18

G46321

TUBE - air, Serial Range: cleaner-manifold

1шт.

19

A30098

HOSE,2.50" ID x 2.81", SAE 20R2 CLASS R

RADIATOR HOSE, , Tube to Manifold 2.50" ID x 2.81", SAE 20R2 CLASS R

1шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

2шт.

21

A35781

MANIFOLD - intake

1шт.

22

A37775

HEATER

- intake manifold

1шт.

23

129-503

NUT,1/4"-20, Brass

1шт.

24

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

25

G46871

GASKET

- intake manifold

1шт.

26

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

4шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

5шт.

30

195-25

WASHER,3/8"

5шт.

31

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

5шт.

32

A35028

CLAMP

-, Serial Range: manifold-head

6шт.

33

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

34

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

35

A38188

PLATE

COVER - exhaust opening

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

37

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

2шт.

38

195-25

WASHER,3/8"

2шт.

39

A36908

PIPE, EXHAUST SYSTEM

PIPE - exhaust, underneath (Std. 4 Wheel)

1шт.

40

A36910

PIPE

- exhaust, underneath (Gen. Purpose)

1шт.

41

A27077

CLAMP

- pipe to muffler (2-5/16")

1шт.

42

G45287

MUFFLER

- underneath

1шт.

43

A36909

BRACKET

CLAMP - muffler rear (Std. 4 Wheel)

1шт.

44

A35178

BRACKET

CLAMP - muffler rear (Gen. Purpose)

1шт.

45

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

47

92-5

LOCK WASHER,5/16"

2шт.

48

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

49

G2125

OUTLET

- exhaust, upright muffler

1шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

51

92-6

LOCK WASHER,3/8"

2шт.

52

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

53

A13240

CLAMP,2-5/8" ID

- upright muffler (2-1/2")

1шт.

54

A39020

MUFFLER

- upright

1шт.

55

G45048

CAP

- weather

1шт.

56

A39021

EXTENSION

- upright muffler (w/canopy)

1шт.

57

A39019

CLAMP

- extension to muffler (2-1/8") (w/canopy)

1шт.

Выбрано товаров: 56
