Запчасти Case IH 470 (050) - ENGINE GASKET KITS, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE

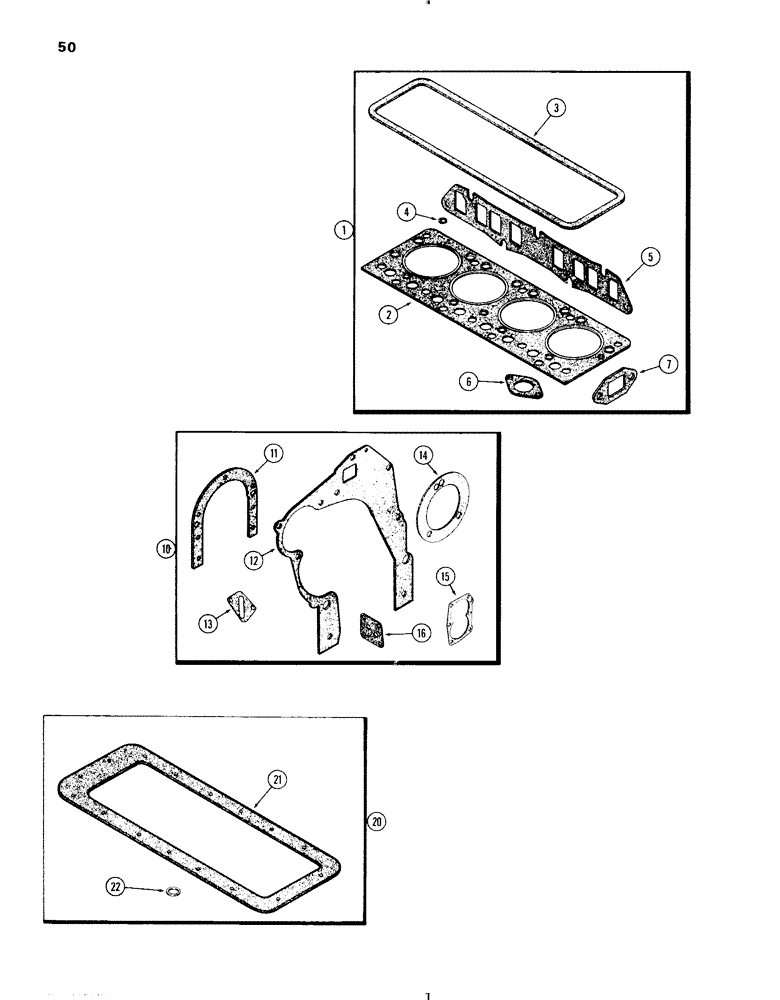

Схема запчастей Case IH 470 - (050) - ENGINE GASKET KITS, 570 (159) SPARK IGNITION ENGINE (02) - ENGINE
12
11
14
1
7
16
20
2
5
3
10
15
13
21
6
4
22

Артикул

Название

Примечание

Количество

1

G11963

GASKET

VALVE GRIND GASKET KIT (includes ref. 2 - 7)

1шт.

2

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

G46826

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

CYLINDER BLOCK GASKET KIT (includes ref. 11 - 16)

1шт.

11

A38196

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

A38196

GASKET

- fuel pump opening cover

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

16

G46854

GASKET

- oil filter brkt. (Not used this unit)

1шт.

20

D128322

RELAY

OIL PAN GASKET KIT (includes ref. 21 & 22)

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710)

1шт.

22

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon)

1шт.

Выбрано товаров: 17
