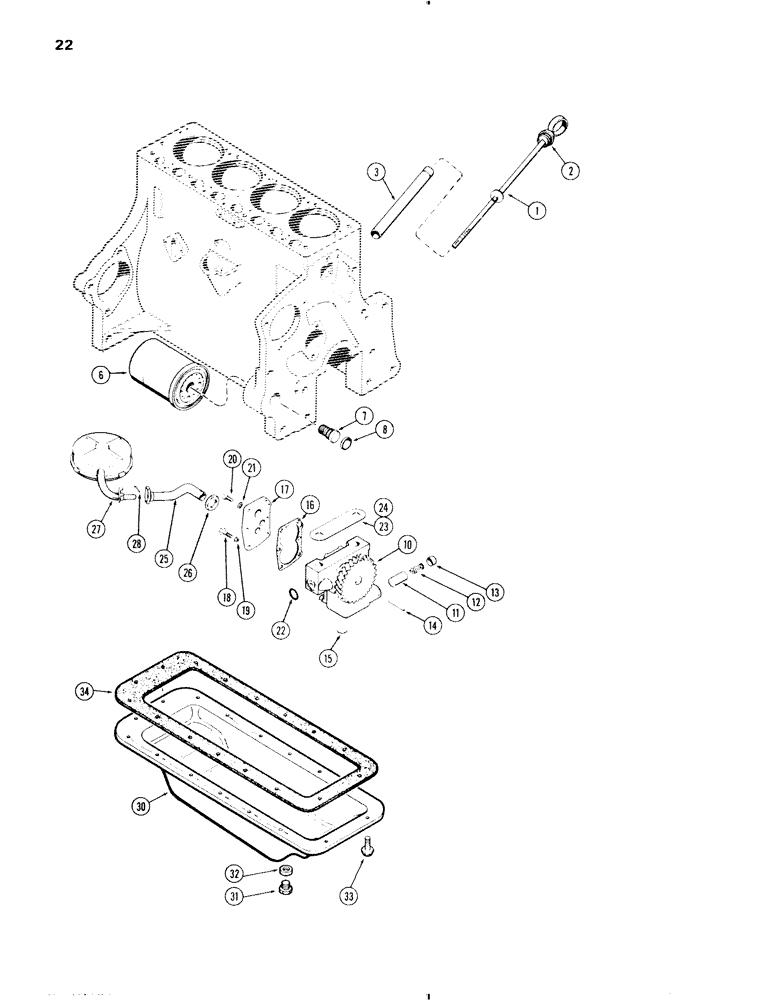

Запчасти Case IH 470 (022) - OIL PUMP-OIL FILTER-OIL PAN, 470 (148B) SPARK IGNITION ENGINE (02) - ENGINE

1

A37148

DIPSTICK

- oil level (includes ref. 2)

1шт.

2

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - seal (3/4 x 1 x 1/8")

2шт.

3

A37149

TUBE

- dipstick & oil filler (in block)

1шт.

6

A37189

FILTER, ELEMENT

ELEMENT - filter, engine oil

1шт.

7

A153552

ADAPTER

- filter element

1шт.

8

41-1016

PLUG,Cup, 1"

- adapter (1" cup type)

1шт.

10

G11844

PUMP, ENGINE OIL

PUMP ASSY. - engine oil (includes ref. 11 - 21)

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

G48513

VALVE SPRING

SPRING - relief valve

1шт.

13

A29260

RETAINER

- relief valve spring

1шт.

14

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN - roll, 1/8 x 1/4"

1шт.

15

41-102

PLUG,Exp, 1/2"

- pump body (1/2" expansion type)

2шт.

16

G46852

GASKET

- pump cover

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

18

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd.

2шт.

21

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O"RING - oil port (3/4 x 15/16 x 3/32")

1шт.

23

G11337

SHIM,.002" Thk

Pump to block .002" Thk

1шт.

24

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

25

A39035

TUBE

PIPE - suction

1шт.

26

223-207

LOCK NUT

NUT - lock, pipe to pump (3/8" tube)

1шт.

27

A39036

FLOAT

ASSY. - (includes screen)

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

30

A36726

PAN

ASSY. - oil (includes ref. 31 & 32)

1шт.

31

A14280

PLUG

- drain

1шт.

32

A58608

GASKET

- drain plug (3/4 x 1 x 21/32" nylon)

1шт.

33

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 x 3/4" N.C. (Spec. includes lockwasher)

16шт.

34

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710 from Figure 24)

1шт.
