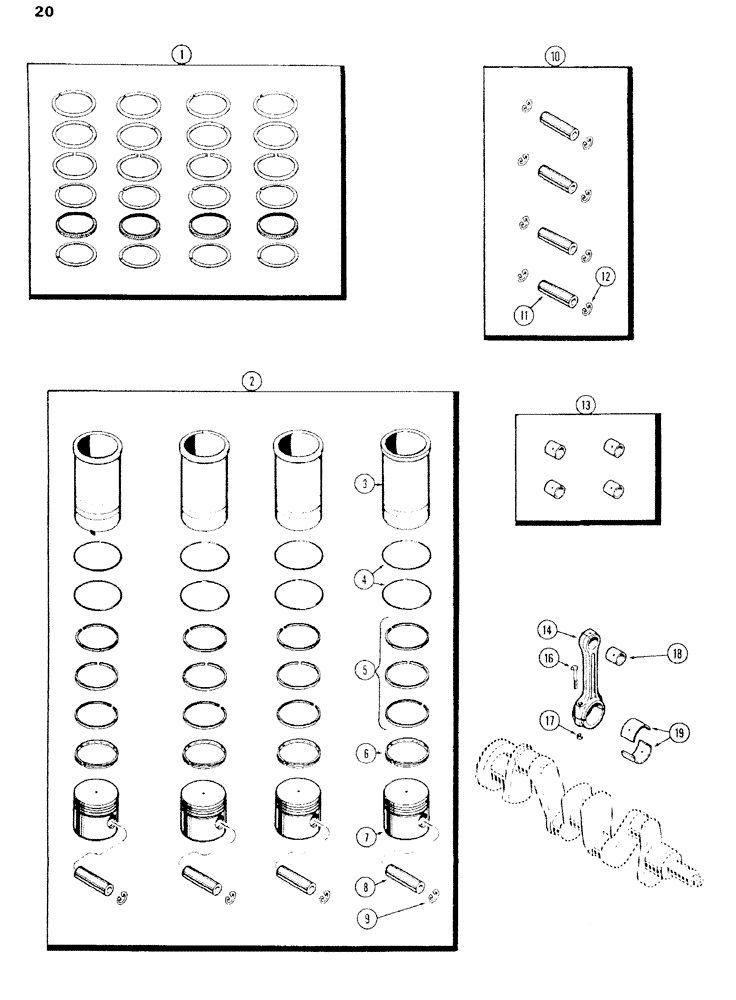

Запчасти Case IH 470 (020) - PISTON ASSEMBLY AND CONNECTING RODS, 470 (148B) SPARK IGNITION ENGINE (02) - ENGINE

1

G11116

PISTON RING SET

RINGS - piston (2 in 1 chrome set)

1шт.

2

G11007

SLEEVE ASSY

PISTON SLEEVE - (matched set of 4) (includes ref. 3 - 18)

1шт.

3

G1061

SLEEVE

- cylinder

4шт.

4

G46909

O-RING,3.112" ID x 3.344" OD

"O"RING - sleeve packing (3-1/8 x 3-11/32 x 7/64")

8шт.

5

G1062

OIL SEAL

RING - compression, piston

12шт.

6

G1063

OIL SEAL

RING - oil control, piston

4шт.

7

G1060

PISTON

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

9

A30023

RETAINER

RING - retaining (See ref. 10)

8шт.

10

G11925

PISTON PIN

PIN KIT - piston (Set of 4 w/rings) (includes ref. 11 & 12)

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - (Order G11925)

4шт.

12

A30023

RETAINER

RING - retaining

8шт.

13

G11955

KIT

BUSHING KIT - conn. rod (Set of 4)

1шт.

14

G11592

EXCHANGE CONROD

ROD ASSY. - connecting (includes ref. 16, 17 & 18)

4шт.

16

G11701

BOLT

- cap

2шт.

17

G49060

NUT

- cap bolt

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 13)

1шт.

19

A36500

SEAL

LINERS - bearing, conn. rod (Set of 2 Std.)

4шт.

19

A36501

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .002" undersize)

4шт.

19

A36502

LINING

LINERS - bearing, conn. rod (Set of 2 .010" undersize)

4шт.

19

A36503

BEARING LINER

LINERS - bearing, conn. rod (Set of 2 .020" undersize)

4шт.

19

A36504

KIT

LINERS - bearing, conn. rod (Set of 2 .030" undersize)

4шт.
