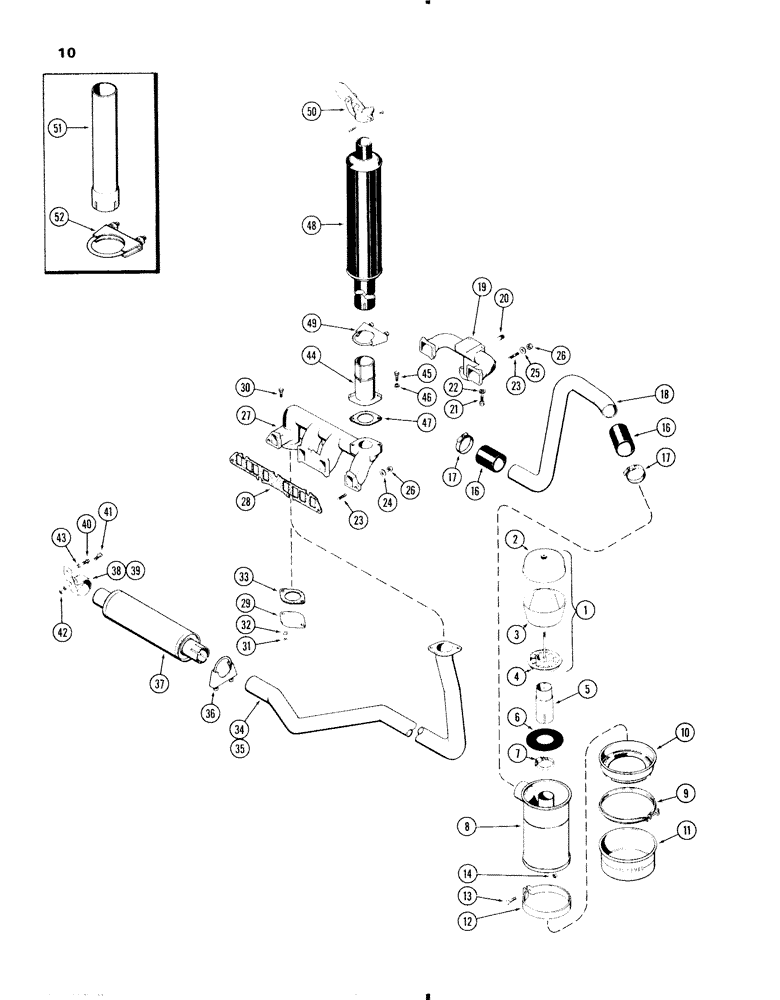

Запчасти Case IH 470 (010) - AIR CLEANER-MANIFOLD-MUFFLER, 470 (148B) SPARK IGNITION ENGINE (02) - ENGINE

1

A35321

CLEANER

PRE-CLEANER ASSY. (includes ref. 2, 3 & 4)

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order A35321)

1шт.

5

A35322

EXTENSION

- air-cleaner tube

1шт.

6

A36855

SHIELD

- extension tube

1шт.

7

214258

CLAMP - extension tube, 1-5/16" to 2 1/4"

1шт.

8

G45267

AIR CLEANER ASSY. (includes ref. 9, 10 & 11)

1шт.

9

G45011

CLAMP ASSY. - oil cup

1шт.

10

G46013

CUP

- oil, inner

1шт.

11

G46012

CUP - oil, outer

1шт.

12

G15662

BAND - air cleaner mounting

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- mach., 1/4 x 3/4" rd. hd.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

R14169

HOSE

- intake tube (1-1/2" I.D. 3")

2шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

18

G46288

TUBE,1.5" OD

- air cleaner to carburetor

1шт.

19

A37172

MANIFOLD

- intake

1шт.

20

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd.

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

24

A30058

WASHER

- stud (13/32 x 7/8 x 1/8")

4шт.

25

195-25

WASHER,3/8"

3шт.

26

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

A30030

GASKET

-, Serial Range: manifold-head

1шт.

29

A38188

PLATE

COVER - exhaust opening

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover or exhaust pipe, 3/8 x 2-1/2" N.C. hex

2шт.

31

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf)

2шт.

32

195-25

WASHER,3/8"

2шт.

33

G46853

MANIFOLD GASKET

- exhaust opening

1шт.

34

A36908

PIPE, EXHAUST SYSTEM

PIPE - underneath exhaust (Std. 4 Wheel)

1шт.

35

A36910

PIPE

- underneath exhaust (Gen. Purpose)

1шт.

36

A27077

CLAMP

- underneath, Serial Range: pipe-muffler

1шт.

37

G45287

MUFFLER

- underneath

1шт.

38

A36909

BRACKET

CLAMP - muffler (Std. 4 wheel)

1шт.

39

A35178

BRACKET

CLAMP - muffler (Gen. Purpose)

1шт.

40

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

41

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

G2125

OUTLET

- exhaust, upright muffler

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

48

A39020

MUFFLER

- upright

1шт.

49

A13240

CLAMP,2-5/8" ID

- upright muffler (2-1/2")

1шт.

50

G45048

CAP

- weather

1шт.

51

A39021

EXTENSION

- pipe (for upright muffler w/canopy)

1шт.

52

A39019

CLAMP

- extension to muffler (2")

1шт.
