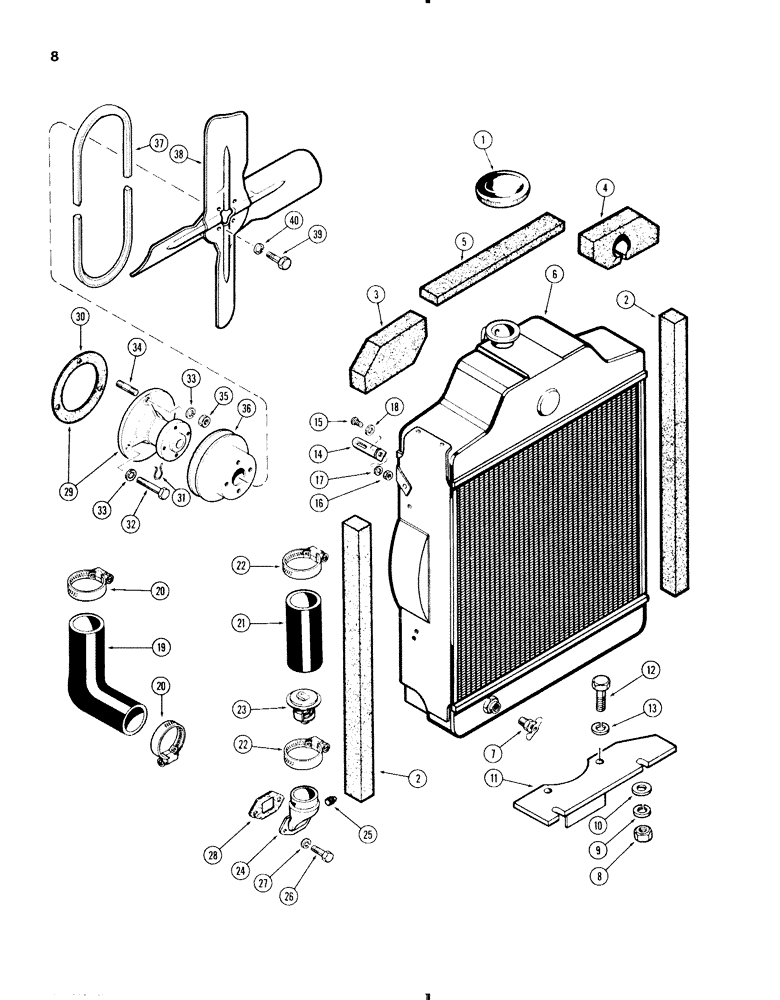

Запчасти Case IH 470 (008) - ENGINE COOLING SYSTEM, 470 (148B) SPARK IGNITION ENGINE (02) - ENGINE

1

G45179

CAP

CAP - radiator

1шт.

2

G46337

SPARE PART BAFFLE - side, radiator

2шт.

3

G46278

BAFFLE

BAFFLE - R.H. top, radiator

1шт.

4

G46279

BAFFLE

BAFFLE - L.H. top, radiator

1шт.

5

G46280

BAFFLE

BAFFLE - top center, radiator

1шт.

6

G45177

SPARE PART RADIATOR

1шт.

7

217-103

COCK, DRAIN

VALVE - drain, radiator

1шт.

8

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C. hex

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

10

195-25

WASHER,3/8"

WASHER, 3/8"

2шт.

11

A35796

SUPPORT

BRACKET - radiator mounting

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

14

G10838

SPARE PART BRACE -, Serial Range: radiator-engine

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

16

219-101

GUN, GREASE

GREASE GUN NUT - 1/4" N.C. hex (pltd.)

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

195518

WASHER - plain, 9/32 x 5/8 x 5/64 (pltd.)

2шт.

19

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Radiator to Pump

1шт.

20

214258

CLAMP - hose, 1 5/16" to 2 1/4"

2шт.

21

A30074

HOSE

HOSE - upper, elbow to radiator (1 3/4" I.D. x 2")

1шт.

22

214260

SPARE PART CLAMP - hose, 1-13/16" to 2 3/4"

2шт.

23

G11005

CASE

THERMOSTAT (177 deg. to 182 deg. F.)

1шт.

24

G11087

SPARE PART ELBOW - water outlet, engine

1шт.

25

2211013

PLUG - pipe, 3/8" sq. hd.

1шт.

26

13620

BOLT - 3/8 x 1 1/4" N.C. hex

2шт.

27

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

28

A30003

GASKET

GASKET -, Serial Range: elbow-head

1шт.

29

A37758

PUMP

PUMP ASSY. - water

1шт.

29

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

29

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Pump Assy

1шт.

29

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

29

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

29

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

30

A38083

GASKET

GASKET -, Serial Range: pump-cover

1шт.

31

A30067

RING

RING - retainer

1шт.

32

13612

BOLT - 3/8 x 3/4" N.C. hex

1шт.

32

13644

BOLT - 3/8 x 2 3/4" N.C. hex

1шт.

33

19330

SPARE PART WASHER - lock, 3/8" int. shakeproof

3шт.

34

A29433

STUD

STUD - pump mounting (3/8" N.C. x 1")

1шт.

35

25106

NUT - 3/8" N.C. hex

1шт.

36

G11339

PULLEY

PULLEY - drive belt, fan & pump

1шт.

37

A38824

BELT

Drive

1шт.

38

A38823

FAN

FAN - engine

1шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

40

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.
