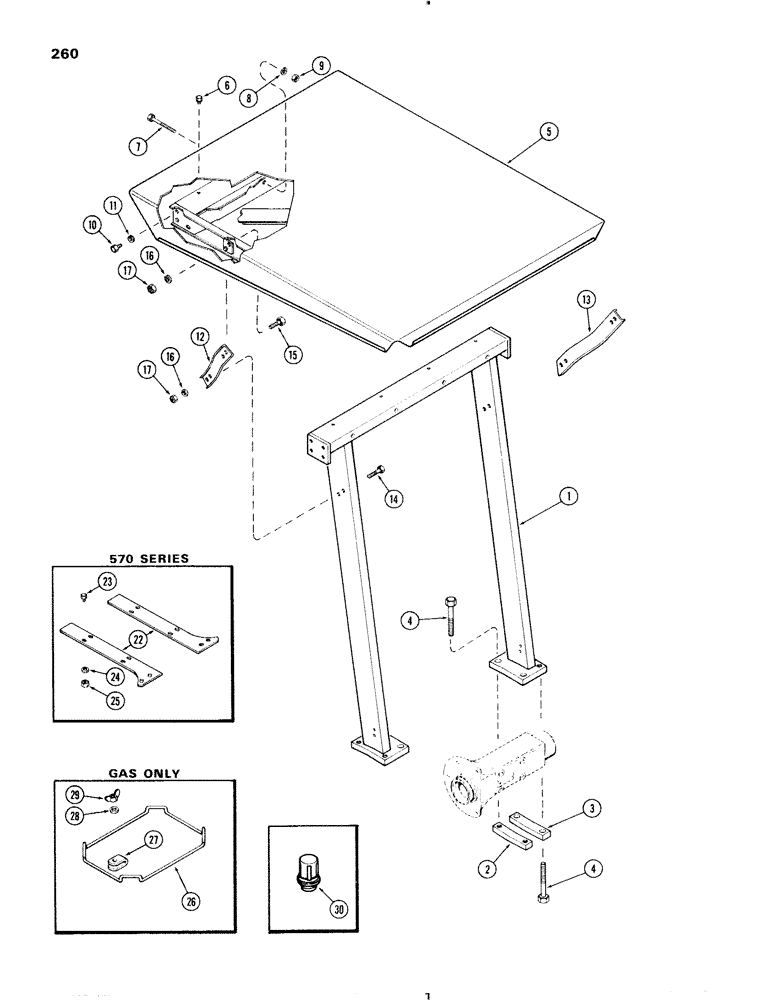

Запчасти Case IH 470 (260) - ROLLBAR AND CANOPY, (USED W/DELUXE SEAT ONLY) (09) - CHASSIS/ATTACHMENTS

1

A38321

FRAME

- roll bar

1шт.

2

A38328

PLATE - mtg., inner lower

2шт.

3

A27218

PLATE - mtg., outer lower

2шт.

4

113-738

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex hd. (3/4 x 7" N.C.) (Gr. 8)

8шт.

5

A38347

CANOPY - roll bar

1шт.

6

193-517

SCREW,SEMS, Hex Hd, 1/4"-20 x 1/2"

BOLT - hex hd. (1/4 x 1/2" N.C. Sems)

4шт.

7

113-256

BOLT

BOLT - hex hd. (3/8 x 5-1/2" N.C.)

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

12

A38360

BRACE - canopy (R.H.)

1шт.

13

A38361

BRACE - canopy (L.H.)

1шт.

14

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

A38338

PLATFORM - roll bar extension

2шт.

23

173-207

X

SCREW - mach. (1/4 x 5/8" N.C. rd. hd.)

6шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

26

A35009

SECURING STRAP

FRAME - hold down

1шт.

27

A35010

CLIP

CLAMP - hold down frame

2шт.

28

195-103

WASHER,5/16"

- plain () 5/16"

2шт.

29

G49020

NUT

- wing (5/16" N.C.)

2шт.

30

A60553

CAP

- battery (Non-Spill)

6шт.
