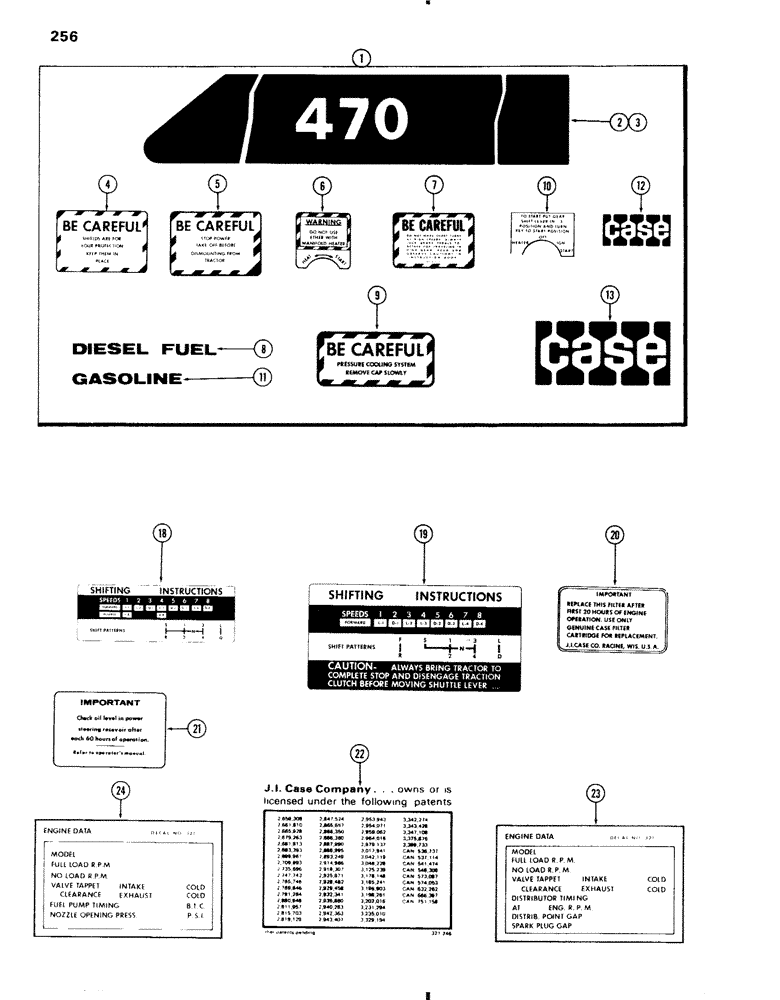

Запчасти Case IH 470 (256) - DECALS, (470 SERIES) (09) - CHASSIS/ATTACHMENTS

1

A43001

KIT

- decal (470 Gas & Diesel) (includes ref. 2 - 13)

1шт.

2

321-1328

DECAL

- "470" (R.H. side of hood)

1шт.

3

321-1329

DECAL

- "470" (L.H. side of hood)

1шт.

4

321-608

DECAL

- "Be Careful" (P.T.O.Guard)

1шт.

5

321-605

DECAL

- "Be Careful" (Tool Box)

1шт.

6

321-422

DECAL

- "Starting Instructions" (Instr. Panel)

1шт.

7

321-606

DECAL

- "Be Careful" (Instrument Panel)

1шт.

8

321-230

DECAL

- "Diesel Fuel" (Hood Near Neck)

1шт.

9

321-122

DECAL

- "Be Careful" (On Radiator Grill Cap)

1шт.

10

321-666

DECAL

- "Starting Instruction" (Spark Ignition)

1шт.

11

321-18

DECAL

- "Gasoline" (Hood Near Neck)

1шт.

12

321-1570

DECAL

- "Case" (Back Of Seat)

1шт.

13

321-1308

DECAL

- "Case" (R.H. & L.H.) (On Grill Cap)

2шт.

18

321-1028

DECAL

- "Shifting Instruction" (8 Speed)

1шт.

19

321-1029

DECAL

- "Shifting Instruction" (8 Speed w/Shuttle) (Standard 4 Wheel Only)

1шт.

20

321-367

DECAL

- "Filter Change"

1шт.

21

321-695

DECAL

- "Oil Change-Hydrostatic Strg. Pump" (Reservoir)

1шт.

22

321-246

DECAL

- "Tractor Patents" (Torque Tube)

1шт.

23

321-1354

DECAL

- engine data (Spark Ignition)

1шт.

24

321-1369

DECAL - engine data (Diesel)

1шт.
