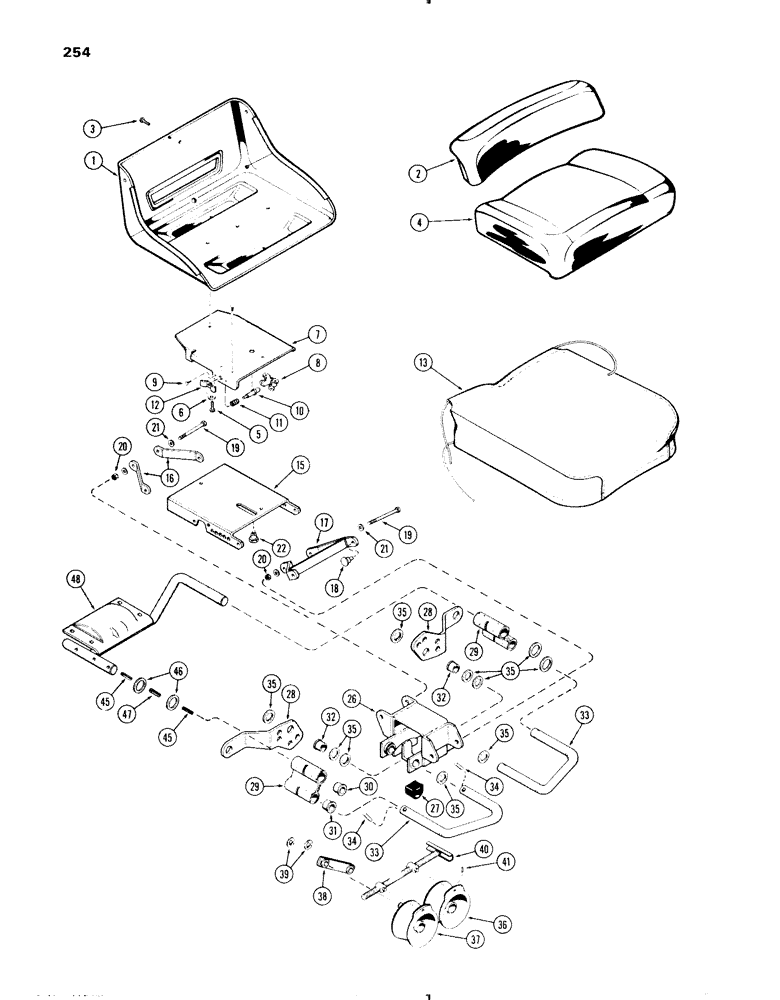

Запчасти Case IH 470 (254) - DELUXE SEAT (09) - CHASSIS/ATTACHMENTS

A36193

SEAT ASSY.

- deluxe (includes ref. 1 - 6)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - (Order A36193)

1шт.

2

A24712

BACKREST

CUSHION - backrest

1шт.

3

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4 x 1/2" N.C. Phillips truss head)

3шт.

4

A24713

CUSHION

- seat (See Ref. 13)

1шт.

5

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- seat (1/4 x 5/8" N.C. Phillips truss head)

2шт.

6

195-518

WASHER,1/4", SAE

- plain (1/4")

2шт.

G30541

GUIDE ASSY. - seat (Not Illust.) (includes ref. 7 - 12)

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - (Order G30541)

1шт.

8

G16891

BRACKET - spring retainer

1шт.

9

151-210

RIVET - bracket (3/16 x 7/16" truss hd.)

4шт.

10

G10783

PIN - plunger lock

1шт.

11

A30370

SPRING

1шт.

12

G10784

HANDLE - plunger

1шт.

13

A23697

COVER

- seat cushion (for worm cushion)

1шт.

A37945

CHANNEL ASSY. - seat mounting (Not Illust.) (includes ref. 15 - 18)

1шт.

15

A33310

CHANNEL

- seat mounting

1шт.

16

G10775

ARM

- pivot, rear

2шт.

17

A38148

X

ARM - pivot, front

1шт.

18

G10779

RIVET

- pivot arm

4шт.

19

16-572

BOLT - (5/16 x 4-1/2" N.F. round head)

2шт.

20

131-3

LOCK NUT,5/16"-24, GB

NUT - lock (5/16" N.F.)

2шт.

21

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

22

G49092

BOLT - shoulder, Serial Range: seat-channel

1шт.

A37951

SUSPENSION BLOCK

SUSPENSION ASSY. - seat (Not Illust.) (includes ref. 26 - 41)

1шт.

26

A41096

BRACKET - support

1шт.

27

A30644

BUMPER

- rubber

1шт.

28

A41099

ARM - lever

2шт.

29

A41101

LINK

LEVER ASSY. - suspension (includes ref. 30 & 31)

2шт.

30

A41143

BUSHING

- flanged (7/8" I.D. x 1" O.D.)

2шт.

31

A30771

BUSHING

- flanged (3/4" I.D. x 7/8" O.D.)

2шт.

32

G46002

FLANGED BEARING

BEARING - spring shaft (flanged)

2шт.

33

A41102

SHAFT - spring

2шт.

34

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Spring shaft 1/4" x 1 1/4", Slotted

4шт.

35

A26462

WASHER

- spring shaft (1-1/4" O.D. x 49/64" I.D.)

10шт.

36

A41097

SPRING

ASSY. - rubber cushion (L.H.)

1шт.

37

A41098

SPRING

ASSY. - rubber cushion (R.H.)

1шт.

38

A41100

LINK - stabilizer

1шт.

39

A27795

RING

- snap, stabilizer link

2шт.

40

G45001

STUD

- spring adjusting

1шт.

41

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Adj. stud 1/8" x 3/4", Slotted

2шт.

45

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Suspension to support 1/4" x 1 1/4", Slotted

4шт.

46

A37955

WASHER

- suspension to support (1-1/4" O.D. x 15/16")

4шт.

47

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, , Suspension to support 5/16" x 1 1/4", Slotted

2шт.

48

A37954

SUPPORT - seat suspension

1шт.
