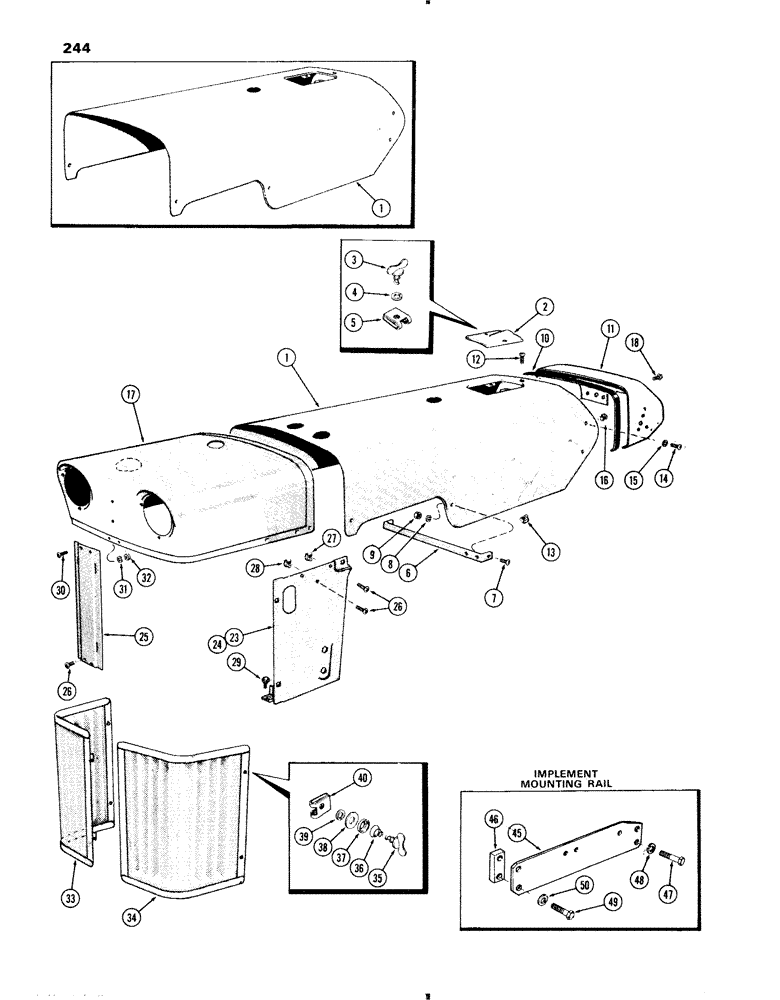

Запчасти Case IH 470 (244) - HOOD, GRILLE AND PANELS, (470 SERIES) (09) - CHASSIS/ATTACHMENTS

1

A37795

HOOD

- (diesel w/upright muffler)

1шт.

1

A37797

HOOD

- (diesel w/underneath muffler)

1шт.

1

A37796

HOOD

- (gas w/upright muffler)

1шт.

1

A37798

HOOD

- (gas w/underneath muffler)

1шт.

2

A36039

DOOR

- battery access

1шт.

3

A36040

STUD

- door lock

2шт.

4

A36041

RETAINER

- stud

2шт.

5

A36042

CLIP

RECEPTACLE - stud

2шт.

6

A38825

STRAP - hood brace

1шт.

7

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- (1/4 x 3/4" N.C. truss head) (plated)

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A36047

MOLDING

MOULDING - rubber

1шт.

11

A38830

PANEL - instrument (w/dual front wheel)

1шт.

11

A36696

PANEL - instrument (w/adjustable front axle)

1шт.

12

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- (#8 x 1/2" round head)

1шт.

13

131-130

NUT

- (#8 Tinnerman Speed Type J)

1шт.

14

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

- (5/16 x 1/2" N.C. truss head)

4шт.

15

195-13

WASHER,#10

- lock (5/16")

4шт.

16

1502286C2

NUT,Floating Cage, 5/16"-18

- cage (5/16" N.C.)

4шт.

17

A38774

CAP - radiator grill

1шт.

18

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- (5/16 x 3/4" truss hd.) (instr. panel to strg. col.)

4шт.

23

A38820

PANEL - R.H. side

1шт.

24

A36731

PANEL - L.H. side

1шт.

25

G13936

BRACE

- center, radiator grill

1шт.

26

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4 x 1/2" N.C. truss hd.) (hood to side panels)

8шт.

27

131-115

NUT

- cage (1/4" N.C.)

4шт.

28

131-102

SPRING NUT,Ret, 1/4"-20

2шт.

29

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- (5/16 x 5/8" N.C. truss head)

4шт.

30

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- (1/4 x 3/4" N.C. truss head)

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

33

A36702

GRILLE - R.H., radiator

1шт.

34

A36703

SCREEN

GRILLE - L.H., radiator

1шт.

35

A32881

STUD

- grill lock

4шт.

36

A32882

VALVE SPRING

SPRING - lock stud

4шт.

37

A32883

WASHER

- wear, grill stud

4шт.

38

A34012

WASHER

- grill stud

4шт.

39

NLS

NO LONGER SERVICED

RING - snap, stud retaining

4шт.

40

A36042

CLIP

RECEPTACLE - grill stud

4шт.

45

A36732

RAIL - R.H. (24" long w/diesel engine), implement mounting

1шт.

45

A36733

RAIL - L.H. (24" long w/diesel engine), implement mounting

1шт.

45

A36734

RAIL - R.H. (22-3/4" long w/spark ignition engine), implement mounting

1шт.

45

A36735

RAIL - L.H. (22-3/4" long w/spark ignition engine), implement mounting

1шт.

46

G17126

SPACER - front, mounting rail, implement

2шт.

47

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Rear, Implement mounting rails Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Implement mounting rails 5/8"

4шт.

49

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Front, implement mounting rails Hex, 3/4"-10 x 1 1/2", G5

4шт.

50

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Implement mounting rails 3/4"

4шт.
